STEERING STEM (SV650SK3/SK4/SK5/SK6/SK7/SAK7)

SV650 2003 (K3) USA (E03)

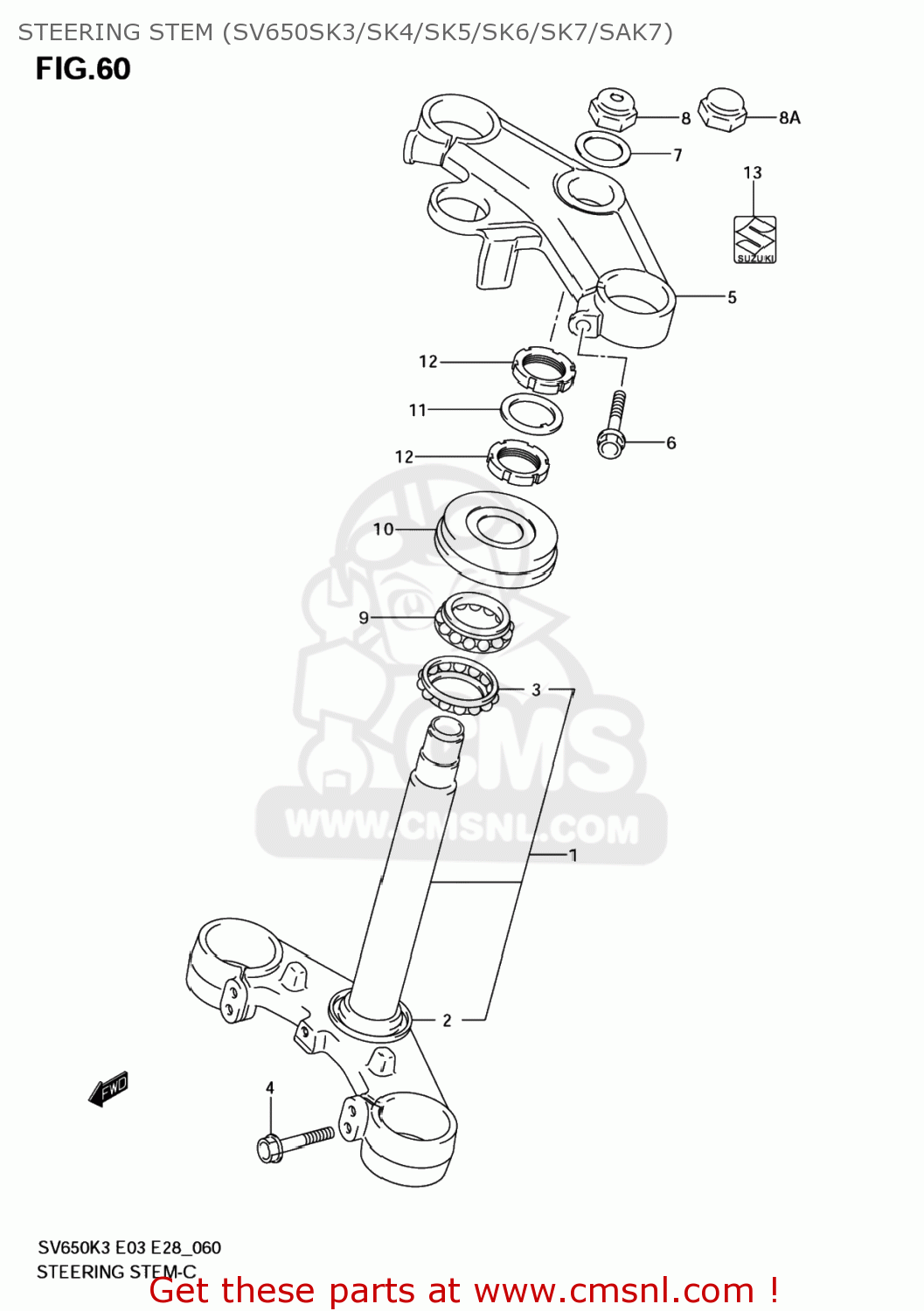

Steering stem (sv650sk3/sk4/sk5/sk6/sk7/sak7) diagram SV650 2003 (K3) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

5141017G20
ref: 1-1

STEM,STEERING

€ 598.50

1-2

5141017G90
ref: 1-2

STEM,STEERING

€ 599.50

5164412C00
ref: 2

SEAL,STEERING LWR

€ 5.50

0926730010
ref: 3

BEARING(30X55X17)

€ 46.50

5132803FK0
ref: 4

BOLT(8X40)

€ 4.50

5131117G20
ref: 5

HEAD,STEERING STEM

€ 411.00

5132803FK0
ref: 6

BOLT(8X40)

€ 4.50

5135442E00
ref: 7

WASHER

€ 14.50

5135317G00
ref: 8

NUT

€ 59.00

5135327G00
ref: 8A

NUT

€ 22.00

0926730010
ref: 9

BEARING(30X55X17)

€ 46.50

5164333E00
ref: 10

SEAL,STEERING UPR DUST

€ 12.50

5164133E00
ref: 11

WASHER,STEERING STEM

€ 3.00

5163133E00
ref: 12

NUT,STEERING STEM

€ 12.00

6828135F00
ref: 13

EMBLEM,S

€ 13.00
