FRAME (MODEL K3/K4/K5/K6)
SV650A 2004 (K4) USA (E03)

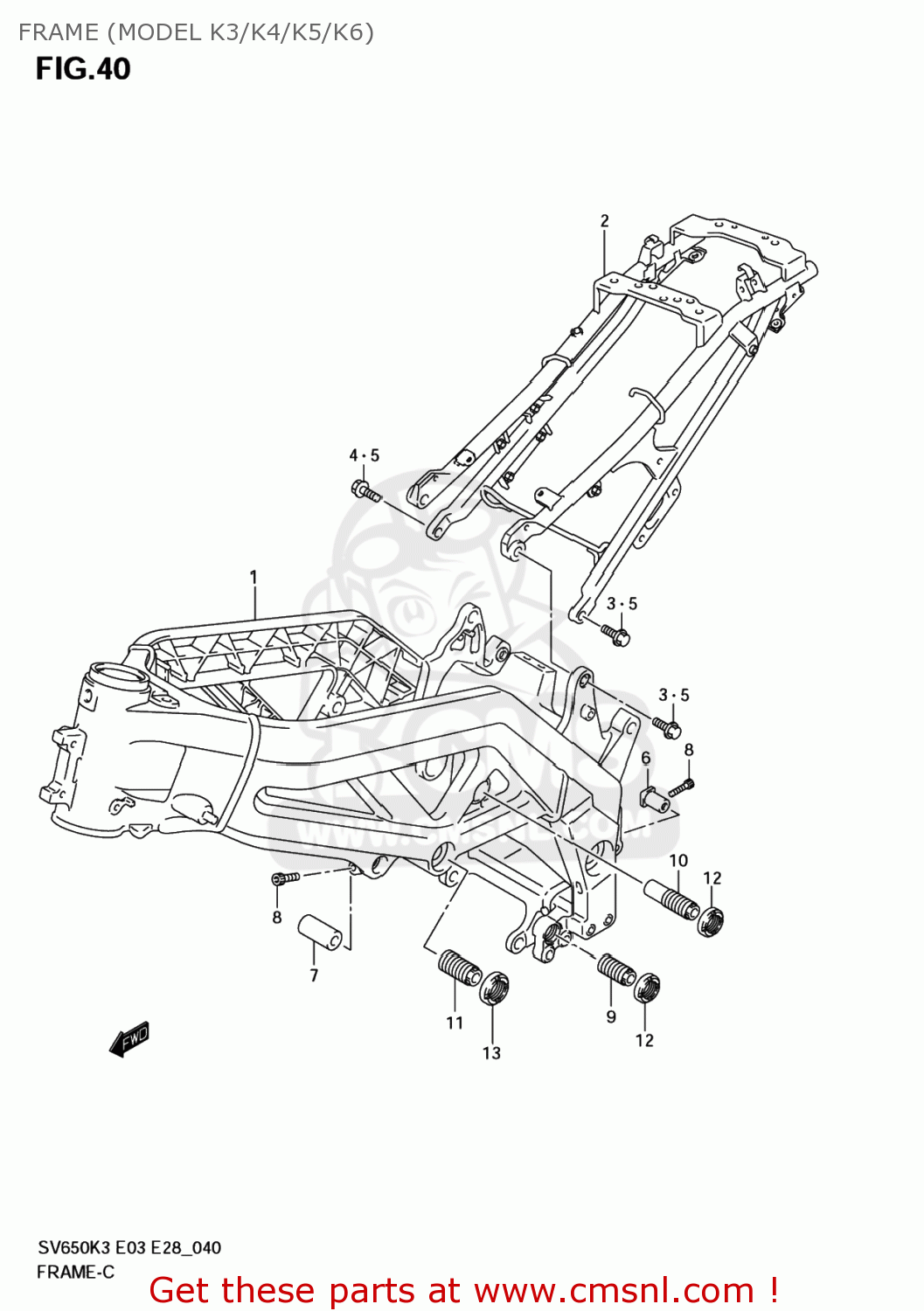

Frame (model k3/k4/k5/k6) diagram SV650A 2004 (K4) USA (E03)
FRAME (MODEL K3/K4/K5/K6) SV650A 2004 (K4) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
4110017G00YBM
ref: 1-1
FRAME(SILVER)
€ 1,556.00
1-2
4110017G10YBM
ref: 1-2
FRAME(SILVER)
€ 2,510.50
1-3
4110017G10YAP
ref: 1-3
FRAME(BLACK)
€ 3,377.50
2-1
4120016G00
ref: 2-1
RAIL,SEAT
€ 733.50
2-2
4120016G10
ref: 2-2
RAIL,SEAT
€ 736.00
2-3
4120016G20YAP
ref: 2-3
RAIL,SEAT(BLACK)
€ 1,204.50
3
0910310296
ref: 3
BOLT(10X30)
€ 6.00
4
4123316G00
ref: 4
41233-16G0V
BOLT, SEAT LOWER RH
€ 10.00
5-1
4123335F00
ref: 5-1
41233-35F0V
BOLT,SEAT RAIL
€ 9.50
5-2
4123318G00
ref: 5-2
BOLT,SEAT RAIL
€ 7.50
6
4194119F01
ref: 6
SPACER,MOUNTING RR UPR,R
€ 25.00
7
4194202F00
ref: 7
SPACER,ENG HEAD MTG RR,L
€ 17.00
8
0910608149
ref: 8
09106-08170
BOLT
€ 3.00
9
4192116G00
ref: 9
BOLT,CASE LWR & RR HEAD ADJ
€ 10.50
10
4192117G00
ref: 10
BOLT,ENGINE MOUNTING RR,L
€ 28.50
11
4192316G00
ref: 11
BOLT,CRANK CASE ADJUST CTR
€ 19.00
12
4192233E00
ref: 12
NUT,CRANK CASE ADJUST BOLT
€ 18.50
13
4192219F00
ref: 13
41922-19F20
NUT,CRANKCASE ADJUST
€ 12.00
