FRONT CYLINDER HEAD (MODEL K3/K4/K5/K6)

SV650A 2004 (K4) USA (E03)

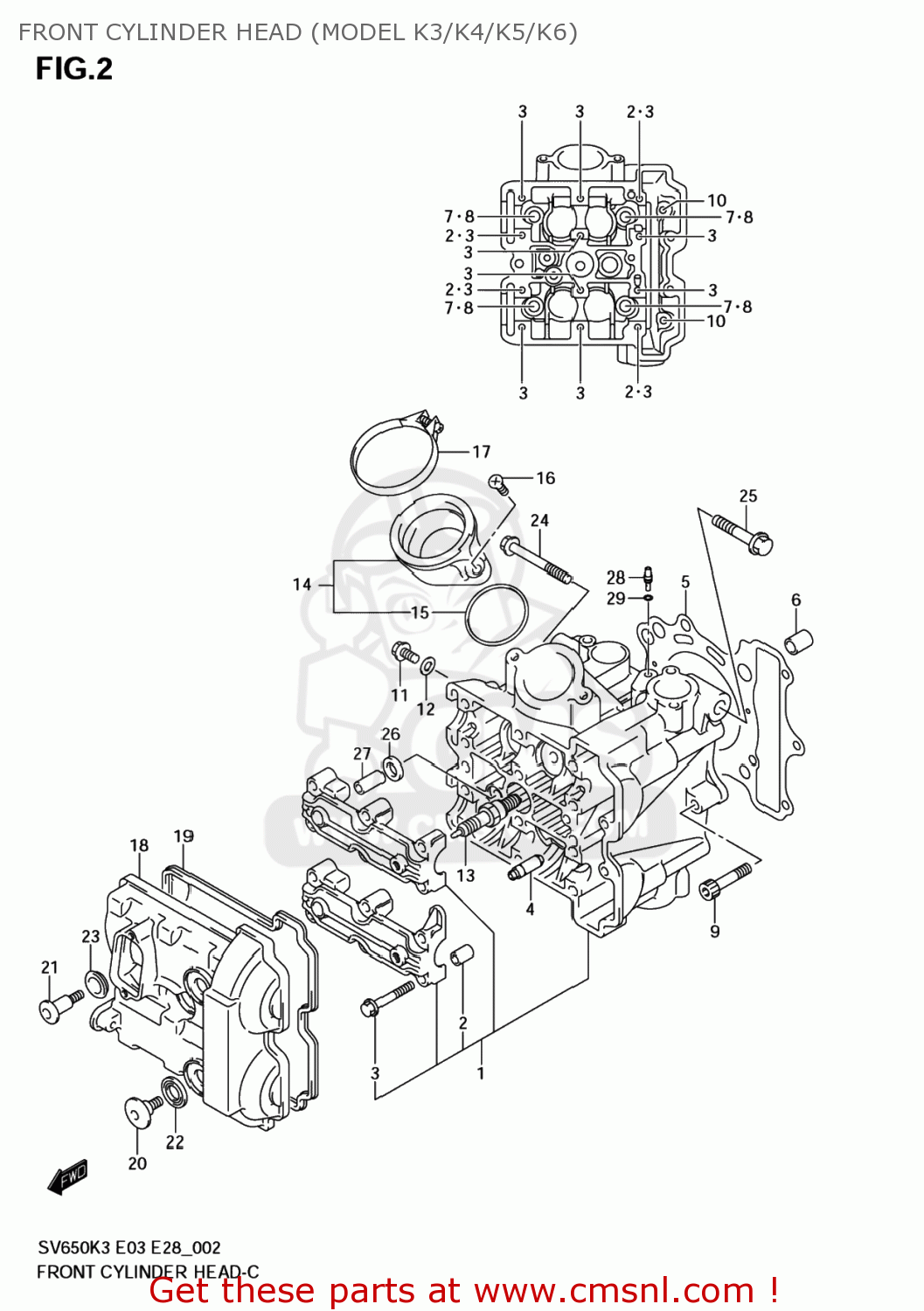

Front cylinder head (model k3/k4/k5/k6) diagram SV650A 2004 (K4) USA (E03)

FRONT CYLINDER HEAD (MODEL K3/K4/K5/K6) SV650A 2004 (K4) USA (E03)

FRONT CYLINDER HEAD (MODEL K3/K4/K5/K6) SV650A 2004 (K4) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

1110117G01
ref: 1-1

HEAD ASSY,CYLINDER FR

€ 888.50

1-2

1110117G10
ref: 1-2

HEAD ASSY,CYLINDER FR

€ 840.00

2

0920608001
ref: 2

PIN(6.2X8X11)

€ 2.00

3

0910306026
ref: 3

BOLT(6X39)

€ 2.00

4

1111518D72
ref: 4

GUIDE,VALVE

€ 18.50

5

1114120F00
ref: 5

GASKET,CYLINDER HEAD (NAS)

€ 31.50

6

0421113189
ref: 6

PIN

€ 2.50

7

0916010082
ref: 7

WASHER(10.5X19X2)

€ 2.00

8

0910310272
ref: 8

BOLT(10X160)

€ 14.00

9

0712006403
ref: 9
07120-0640B

BOLT

€ 3.50

10

0910306103
ref: 10

BOLT(6X70)

€ 2.50

11

0712006123
ref: 11
07120-0612B

BOLT

€ 3.50

12

0916806023
ref: 12

GASKET(5.8X13X1.2) (NAS)

€ 2.00

13-1

0948200456
ref: 13-1

PLUG,SPARK(CR8E)

€ 7.00

13-2

0948200457
ref: 13-2

PLUG,SPARK(U24ESR-N)

€ 7.00

13-3

0948200458
ref: 13-3

PLUG,SPARK(NGK CR9E)

€ 8.50

13-4

0948200459
ref: 13-4

PLUG,SPARK(U27ESR-N)

€ 8.50

13-5

0948200516
ref: 13-5

PLUG,SPARK(CR7E)

€ 8.50

13-6

0948200515
ref: 13-6

PLUG,SPARK(U22ESR-N)

€ 8.50

14

1310117G00
ref: 14

PIPE ASSY,INTAKE FR

€ 57.50

15

0928046006
ref: 15

O RING(D:2.4,ID:47X42)

€ 8.00

16

0212206163
ref: 16
02122-0616A

SCREW ,6X16

€ 2.00

17

0940262208
ref: 17

CLAMP

€ 6.00

18-1

1117117G00
ref: 18-1

COVER,CYLINDER HEAD FR

€ 120.50

18-2

1117117G10
ref: 18-2

COVER,CYLINDER HEAD FR

€ 167.50

19

1117319F01
ref: 19

GASKET,CYLINDER HEAD COVER (NAS)

€ 26.50

20

0910607009
ref: 20

BOLT(7X17.5)

€ 4.50

21

0910607010
ref: 21

BOLT(7X31)

€ 4.50

22

0916111008
ref: 22

WASHER(10.6X25.5X2.3)

€ 4.50

23

1119213E00
ref: 23

CUSHION,HEAD COVER BOLT

€ 4.50

24

0910310244
ref: 24

BOLT(10X105)

€ 6.50

25

0155010707
ref: 25

BOLT

€ 3.50

26

1118235F00
ref: 26

GASKET,2ND AIR PASSAGE (NAS)

€ 4.00

27

0920608007
ref: 27

PIN(6.2X8X16)

€ 2.50

28

0949380005
ref: 28

JET(8)

€ 12.00

29

0928004004
ref: 29

O RING(D:1.2,ID:4)

€ 2.00
