HEADLAMP (SV650K3/K4/K5/K6/K7/AK7)

SV650A 2004 (K4) USA (E03)

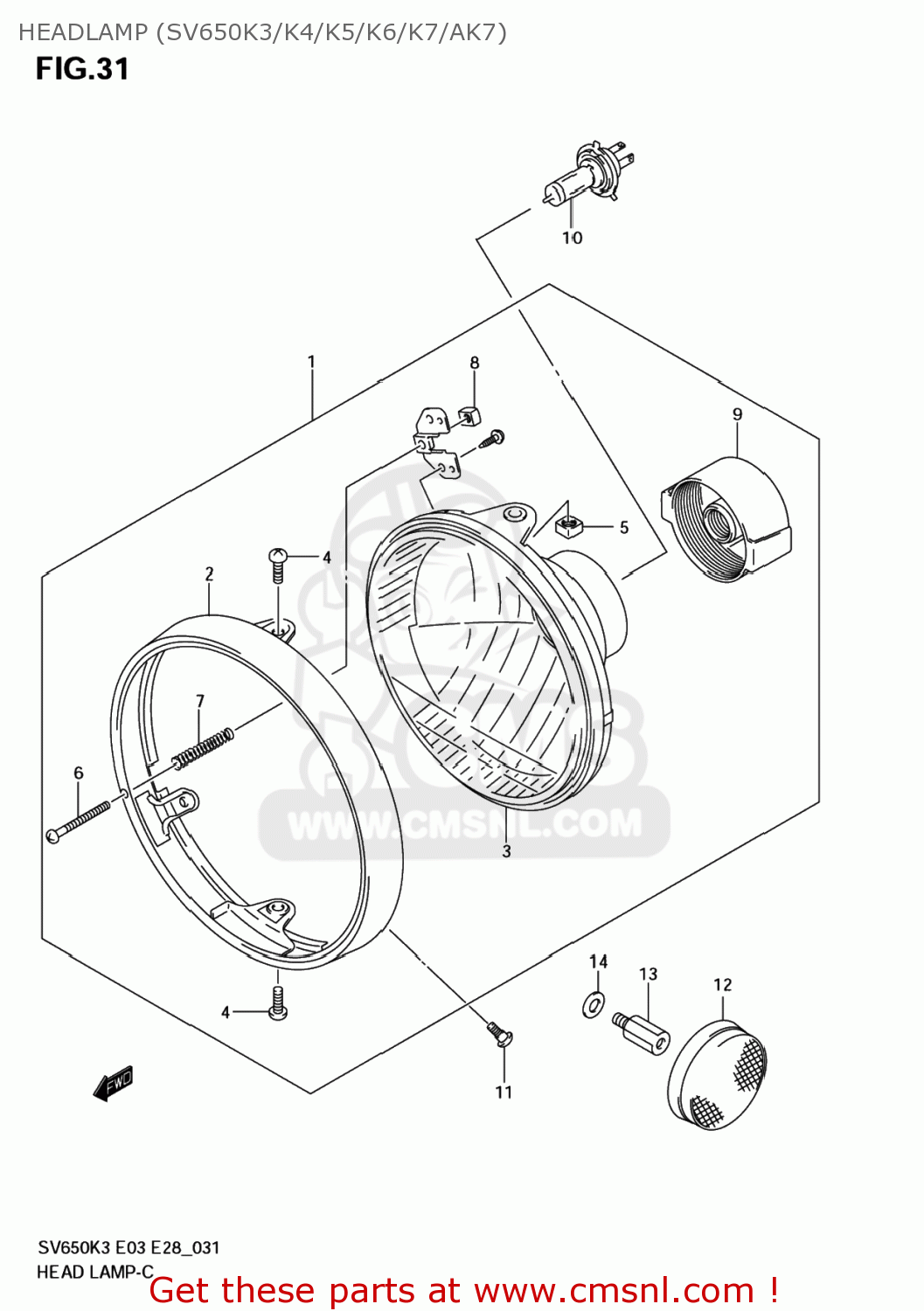

Headlamp (sv650k3/k4/k5/k6/k7/ak7) diagram SV650A 2004 (K4) USA (E03)

prices are in EUR

ref

part #

description

quantity

3510019F70999
ref: 1
35100-19F00-999

HEADLAMP ASSY

€ 244.00

3511119F00
ref: 2

RIM

€ 46.50

3512119F00
ref: 3

LAMP UNIT

€ 150.00

3518119F00
ref: 4

SCREW(5X16)

€ 2.00

3513545900
ref: 5

NUT

€ 2.50

3515119F00
ref: 6

SCREW,ADJUSTING

€ 2.50

3515449200
ref: 7

SPRING

€ 3.50

3515245600
ref: 8

NUT,HEADLAMP ADJUST

€ 3.00

3517419F00
ref: 9

COVER,SOCKET

€ 19.00

0947112060
ref: 10

BULB(12V60/55W,H4)

€ 8.00

0913905038
ref: 11

SCREW(5X15.3)

€ 2.00

3595014A00
ref: 12

REFLECTOR,REFLEX FR

€ 15.00

0911905023
ref: 13

BOLT(5X10)

€ 7.50

0832201053
ref: 14
08322-0105A

WASHER

€ 2.50
