SEAT TAIL COVER (SV650K4)
SV650A 2004 (K4) USA (E03)

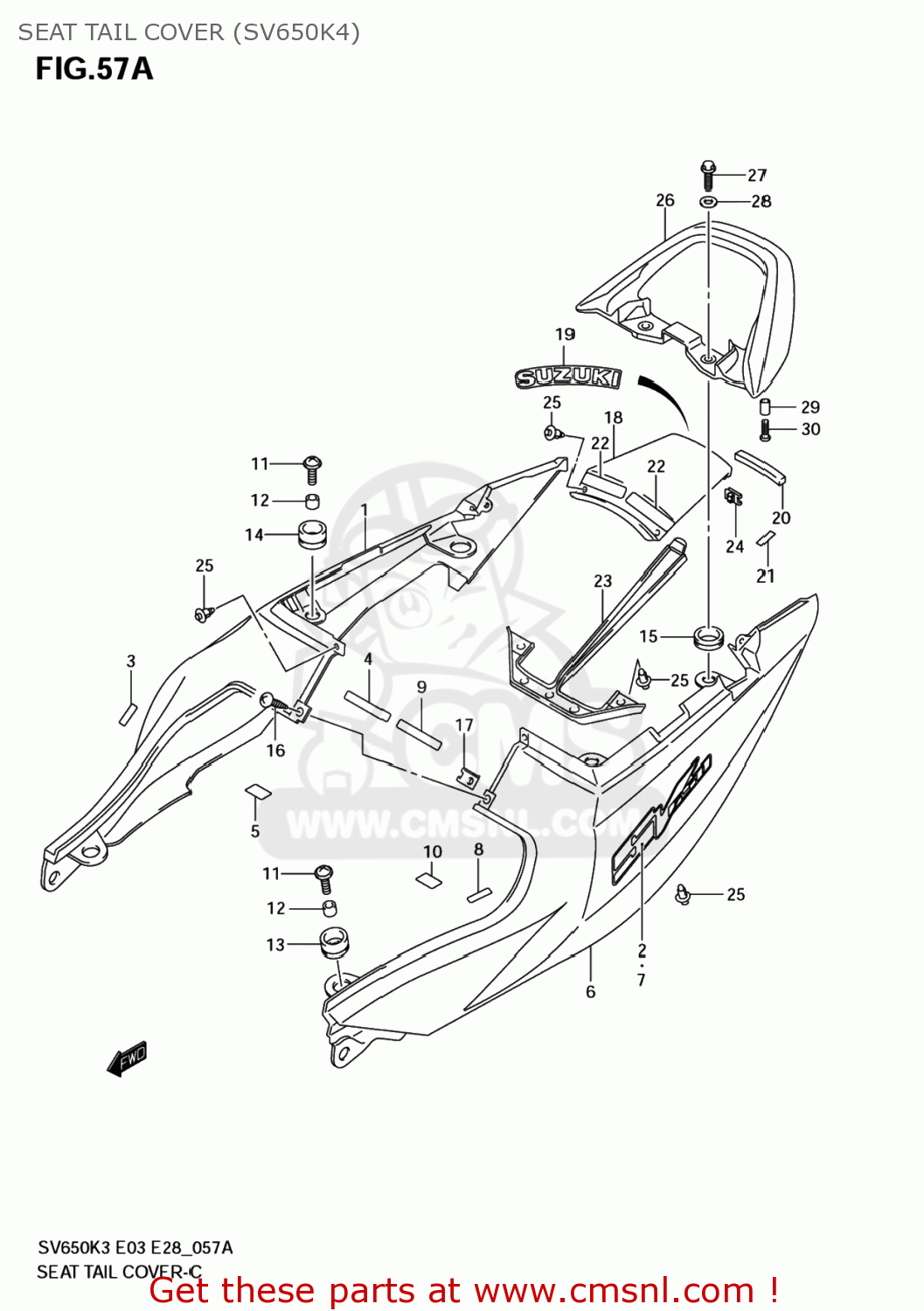

Seat tail cover (sv650k4) diagram SV650A 2004 (K4) USA (E03)
SEAT TAIL COVER (SV650K4) SV650A 2004 (K4) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
4550117G10YEX
ref: 1-1
45501-17G11-YEX
COVER,SEAT TAIL
€ 129.00
1-2
4550117G10YU9
ref: 1-2
45501-17G11-YU9
COVER, SEAT TAIL, R (YELLOW)
€ 113.50
1-3
4550117G10YAY
ref: 1-3
COVER,SEAT TAIL,R
€ 121.50
2-1
6816117G00APF
ref: 2-1
EMBLEM,SEAT TAIL COVER
€ 22.50
2-2
6816117G00APG
ref: 2-2
EMBLEM,SEAT TAIL COVER
€ 16.50
2-3
6816117G00APH
ref: 2-3
EMBLEM,SEAT TAIL COVER
€ 19.50
3
4551642F00
ref: 3
TAPE,COVER
€ 7.00
4
4551716G10
ref: 4
TAPE,SEAT TAIL COVER NO.2 FR
€ 8.50
5
4716110D00
ref: 5
PROTECTOR,FRAME COVER
€ 3.50
6-1
4550217G10YEX
ref: 6-1
45502-17G11-YEX
COVER,SEAT TAI
€ 146.50
6-2
4550217G10YU9
ref: 6-2
45502-17G11-YU9
COVER,SEAT TAIL,L(YELLOW)
€ 121.00
6-3
4550217G10YAY
ref: 6-3
COVER,SEAT TAI
€ 113.50
7-1
6816117G00APF
ref: 7-1
EMBLEM,SEAT TAIL COVER
€ 22.50
7-2
6816117G00APG
ref: 7-2
EMBLEM,SEAT TAIL COVER
€ 16.50
7-3
6816117G00APH
ref: 7-3
EMBLEM,SEAT TAIL COVER
€ 19.50
8
4551642F00
ref: 8
TAPE,COVER
€ 7.00
9
4551716G10
ref: 9
TAPE,SEAT TAIL COVER NO.2 FR
€ 8.50
10
4716110D00
ref: 10
PROTECTOR,FRAME COVER
€ 3.50
11
0913606082
ref: 11
SCREW(6X25)
€ 3.00
12
0918006286
ref: 12
SPACER(6.5X10X9.4)
€ 2.50
13
0932010052
ref: 13
CUSHION
€ 4.50
14
4711516G00
ref: 14
CUSHION,SEAT TAIL COVER CTR
€ 3.00
15
0932020010
ref: 15
CUSHION
€ 2.50
16
0324115123
ref: 16
03241-1512B
SCREW
€ 2.50
17
0914805038
ref: 17
NUT
€ 2.50
18-1
4550316G00YC2
ref: 18-1
COVER,SEAT TAIL CTR
€ 47.50
18-1
4550316G00YC2
ref: 18-1
COVER,SEAT TAIL CTR
€ 47.50
18-2
4550316G00YU9
ref: 18-2
COVER,SEAT TAIL CTR
€ 53.00
18-2
4550316G00YU9
ref: 18-2
COVER,SEAT TAIL CTR
€ 53.00
18-3
4550316G00YAY
ref: 18-3
COVER,SEAT TAIL CTR
€ 76.00
18-3
4550316G00YAY
ref: 18-3
COVER,SEAT TAIL CTR
€ 76.00
19
6816116G00YD8
ref: 19
EMBLEM,SUZUKI
€ 6.00
20
4551816G00
ref: 20
CUSHION,SEAT TAIL COVER CTR
€ 2.50
21
4551716G00
ref: 21
TAPE,SEAT TAIL COVER
€ 6.50
22
4551642F00
ref: 22
TAPE,COVER
€ 7.00
23-1
4551416G00YC2
ref: 23-1
COVER,SEAT TAIL RR
€ 34.50
23-2
4551416G00YU9
ref: 23-2
COVER,SEAT TAIL RR
€ 38.50
23-2
4551416G00YU9
ref: 23-2
COVER,SEAT TAIL RR
€ 38.50
23-3
4551416G00YAY
ref: 23-3
COVER,SEAT TAIL RR
€ 48.00
24
0914806018
ref: 24
NUT
€ 2.50
25
09409063145PK
ref: 25
CLIP(BLACK)
€ 3.50
26-1
4621116G00YC2
ref: 26-1
HANDLE,PILLION RIDER
€ 148.00
26-2
4621116G00YU9
ref: 26-2
HANDLE,PILLION RIDER
€ 164.50
26-3
4621116G00YAY
ref: 26-3
HANDLE,PILLION RIDER
€ 163.50
27
0155108403
ref: 27
01551-0840B
BOLT
€ 2.50
28
0916008501
ref: 28
WASHER(8.5X24X2.3)
€ 2.00
29
0918006271
ref: 29
SPACER(6.5X9X18)
€ 2.00
30
0913906112
ref: 30
SCREW(6X25)
€ 3.00
