FRONT CALIPER (SV650AK7/SAK7)
SV650A 2006 (K6) USA (E03)

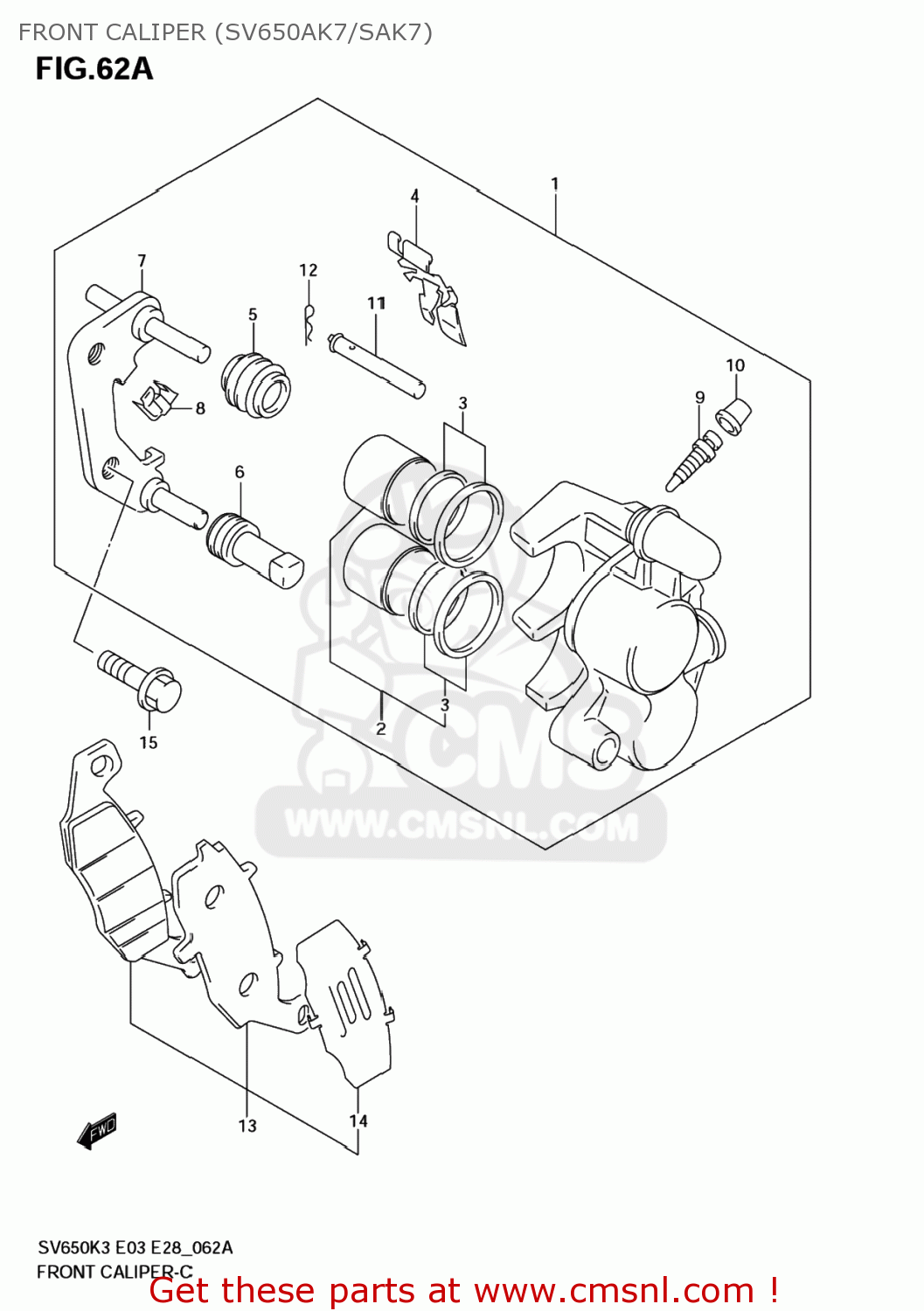

Front caliper (sv650ak7/sak7) diagram SV650A 2006 (K6) USA (E03)
FRONT CALIPER (SV650AK7/SAK7) SV650A 2006 (K6) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
5910033DF0999
ref: 1-1
CALIPER ASSY,FR,R
€ 411.50
1-2
5930033DF0999
ref: 1-2
CALIPER ASSY,FR,L
€ 407.50
2
5930001820
ref: 2
PISTON SET
€ 55.00
3
5910004851
ref: 3
SEAL SET,PISTON
€ 16.50
4-1
5911533D00
ref: 4-1
SPRING,PAD,R
€ 12.00
4-2
5931533D00
ref: 4-2
SPRING,PAD,L
€ 11.50
5
5911244B00
ref: 5
BOOT,AXLE
€ 8.00
6
5931336500
ref: 6
INSULATOR,AXLE
€ 5.50
7-1
5915033D01
ref: 7-1
CARRIER,CALIPER,R
€ 70.00
7-2
5935033D01
ref: 7-2
CARRIER,CALIPER,L
€ 70.00
8
5911633D00
ref: 8
GUIDE,PAD
€ 6.50
9
5912118410
ref: 9
BLEEDER
€ 8.00
10
5515666310
ref: 10
CAP,BLEEDER PLUG
€ 6.00
11
5914144B01
ref: 11
PIN,PAD
€ 8.00
12
6914245000
ref: 12
CLIP,PAD PIN
€ 4.50
13-1
5910233860
ref: 13-1
PAD & SHIM SET (NAS)
€ 60.50
13-2
5930233830
ref: 13-2
PAD & SHIM SET (NAS)
€ 64.00
14
5917133D00
ref: 14
SHIM,PAD
€ 10.00
15
015501025A
ref: 15
BOLT
€ 2.00
