WIRING HARNESS (SV650SK5/SK6)
SV650A 2006 (K6) USA (E03)

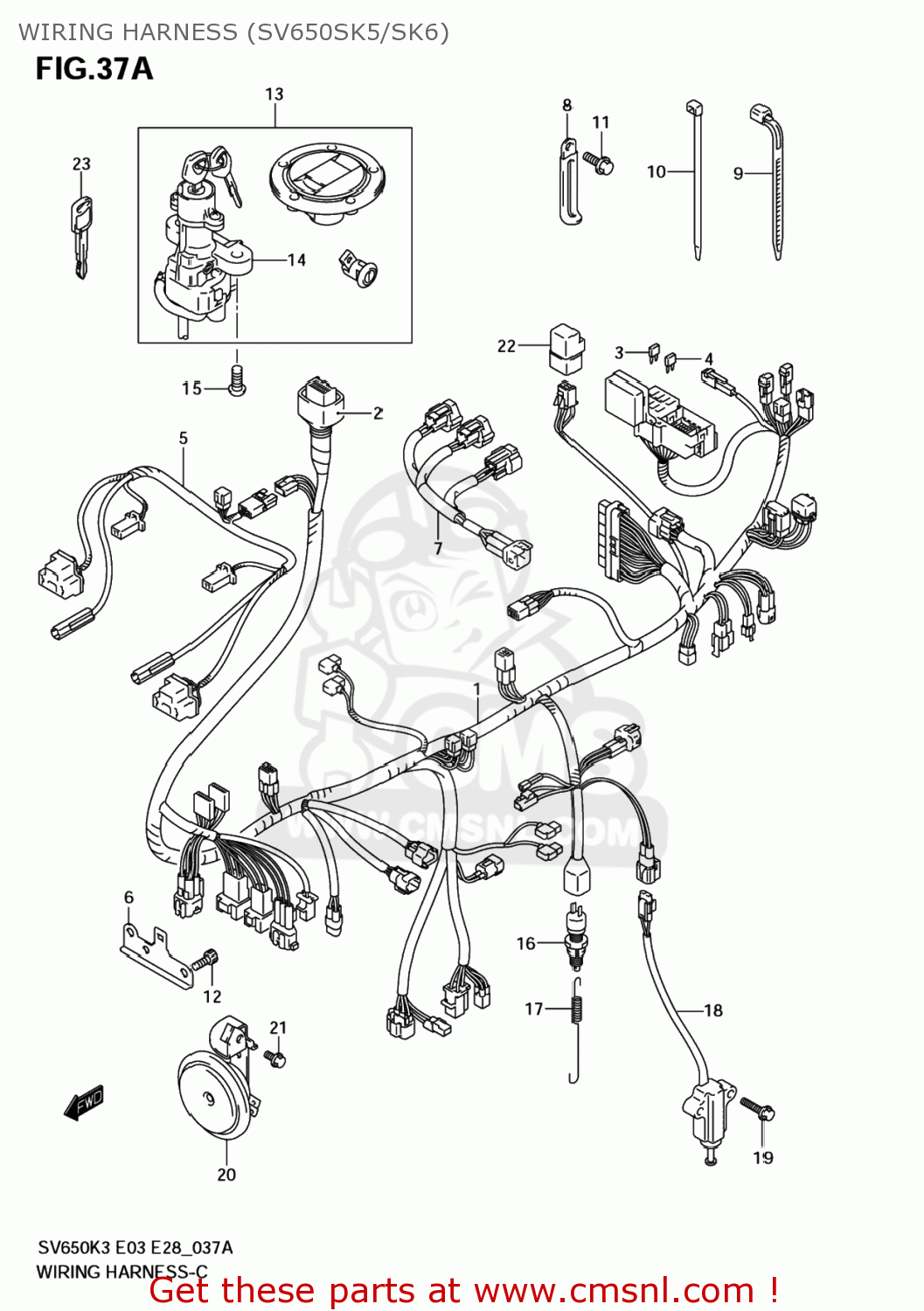

Wiring harness (sv650sk5/sk6) diagram SV650A 2006 (K6) USA (E03)
WIRING HARNESS (SV650SK5/SK6) SV650A 2006 (K6) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3661017GH0
ref: 1
36610-17GG0
HARNESS, WIRING, NO.1
€ 713.50
2
3661833E00
ref: 2
COVER,SPEEDOMETER COUPLER
€ 5.50
3
0948110501
ref: 3
FUSE(10A)
€ 3.00
4
0948115501
ref: 4
FUSE(15A)
€ 1.00
5
3662016G10
ref: 5
HARNESS,WIRING NO.2
€ 166.00
6
3668717G10
ref: 6
HOLDER,COUPLER
€ 4.50
7
3685916G00
ref: 7
WIRE,INJECTOR LEAD
€ 135.50
8-1
0940406429
ref: 8-1
CLAMP(L:45)
€ 2.50
8-2
0940406433
ref: 8-2
CLAMP(L:80)
€ 3.00
9-1
0940711401
ref: 9-1
CLAMP(L:95)
€ 2.50
9-2
0940718402
ref: 9-2
CLAMP(L:165)
€ 2.50
10
0940714407
ref: 10
CLAMP(L:145)
€ 4.00
11
0155006123
ref: 11
01550-0612A
BOLT
€ 2.50
12
0713006103
ref: 12
07130-0610B
BOLT,VAC.PIPE
€ 2.50
13-1
3700016840
ref: 13-1
LOCK SET
€ 506.00
13-2
3700016850
ref: 13-2
LOCK SET
€ 196.00
14
3710016G00
ref: 14
LOCK ASSY,STEERING
€ 211.00
15
0913908016
ref: 15
BOLT(8X20)
€ 3.50
16
3774045D00
ref: 16
37740-31D00
SWITCH ASSY,STOP LAMP
€ 20.50
17
0944306016
ref: 17
SPRING
€ 2.50
18
3784016G00
ref: 18
SWITCH ASSY,SIDE STAND
€ 98.50
19
0155006257
ref: 19
BOLT
€ 2.50
20
3850017G10
ref: 20
38500-17G11
HORN ASSY
€ 76.00
21
0155006123
ref: 21
01550-0612A
BOLT
€ 2.50
22
3874024X50
ref: 22
RELAY ASSY
€ 37.50
23
3714633E00
ref: 23
KEY,BLANK
€ 13.00
