HANDLEBAR (WITHOUT COWLING)

SV650A 2006 (K6) USA (E03)

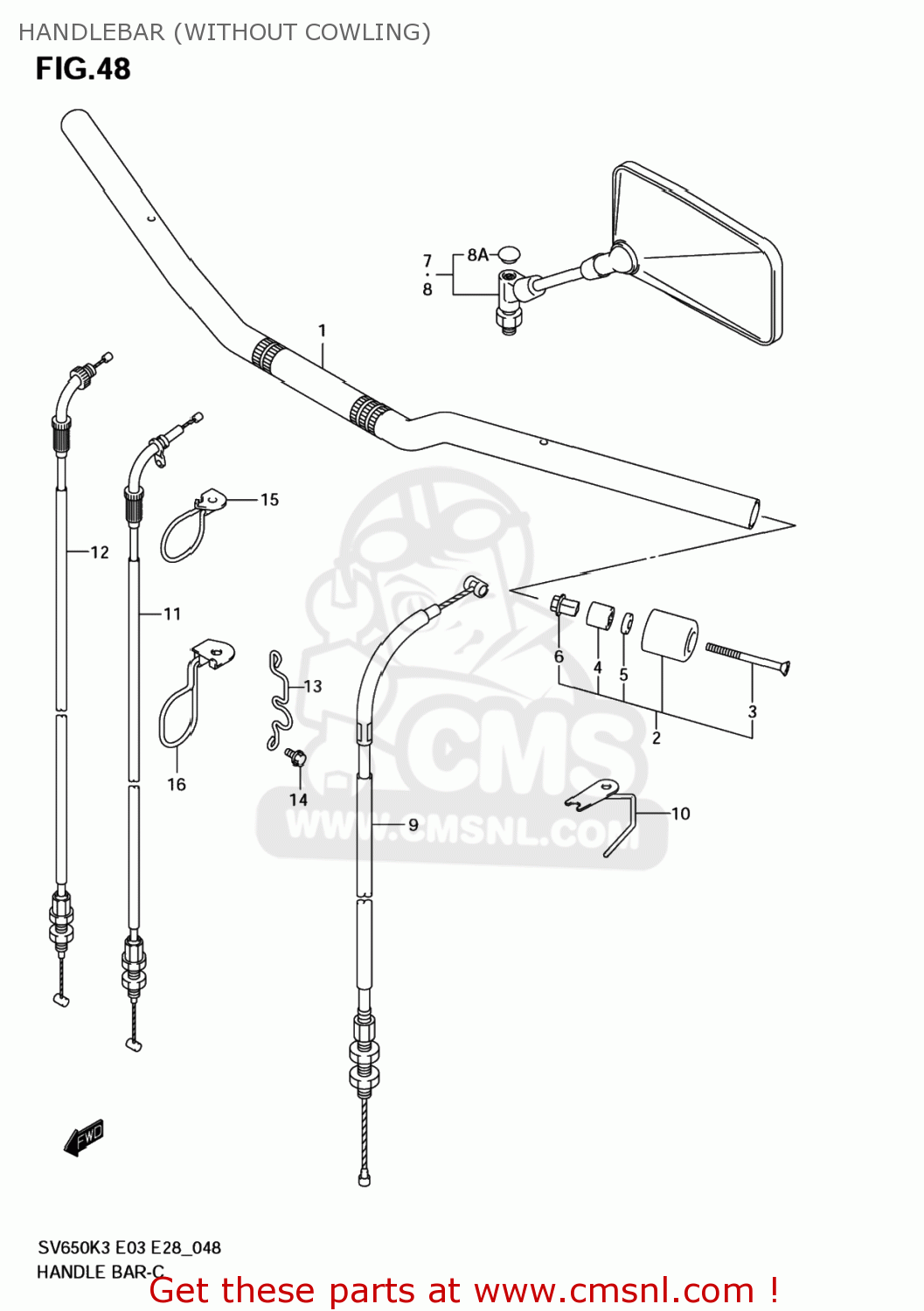

Handlebar (without cowling) diagram SV650A 2006 (K6) USA (E03)

HANDLEBAR (WITHOUT COWLING) SV650A 2006 (K6) USA (E03)

HANDLEBAR (WITHOUT COWLING) SV650A 2006 (K6) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

5611117G10
ref: 1

HANDLEBAR

€ 109.50

2

5620016820
ref: 2
56200-16821

BALANCER,HANDL

€ 25.50

3

0212206603
ref: 3
02122-0660B

SCREW

€ 3.00

4

5627210G00
ref: 4

EXPANDER,HANDLE BALANCER

€ 3.00

5

0916006131
ref: 5

WASHER(6.5X16X4)

€ 2.50

6

5627310G00
ref: 6
56273-10G10

NUT,HANDLE BAL

€ 6.50

7-1

5650017G00
ref: 7-1
56500-17G30

MIRROR ASSY,RE

€ 74.50

7-2

5650017G30
ref: 7-2

MIRROR ASSY,RR VIEW,R

€ 74.50

8A

5652428600
ref: 8A
56524-28601

CAP

€ 4.00

8-1

5660017G00
ref: 8-1
56600-17G30

MIRROR ASSY,RE

€ 265.00

8-2

5660017G30
ref: 8-2

MIRROR ASSY,RR VIEW,L

€ 265.00

9

5820017G00
ref: 9

CABLE ASSY,CLUTCH

€ 34.50

10

5862017G00
ref: 10

GUIDE,CLUTCH CABLE

€ 19.50

11

5830016GA0
ref: 11

CABLE ASSY,THROTTLE NO.1

€ 30.00

12

5830016GB0
ref: 12

CABLE ASSY,THROTTLE NO.2

€ 31.00

13-1

5862116GA0
ref: 13-1

GUIDE,CABLE L

€ 15.50

13-2

5862116GC0
ref: 13-2

GUIDE,CABLE L

€ 15.50

14

0155006123
ref: 14
01550-0612A

BOLT

€ 2.50

15-1

5862016G00
ref: 15-1

GUIDE,THROTTLE CABLE NO.1

€ 10.50

15-2

5862016G30
ref: 15-2

GUIDE,THROTTLE CABLE

€ 18.00

16-1

5862016G10
ref: 16-1

GUIDE,THROTTLE CABLE NO.2

€ 15.50

16-2

5862016G20
ref: 16-2

GUIDE,THROTTLE CABLE NO.2

€ 16.00
