EVAPO SYSTEM (E33)

SV650A 2009 (K9) USA (E03)

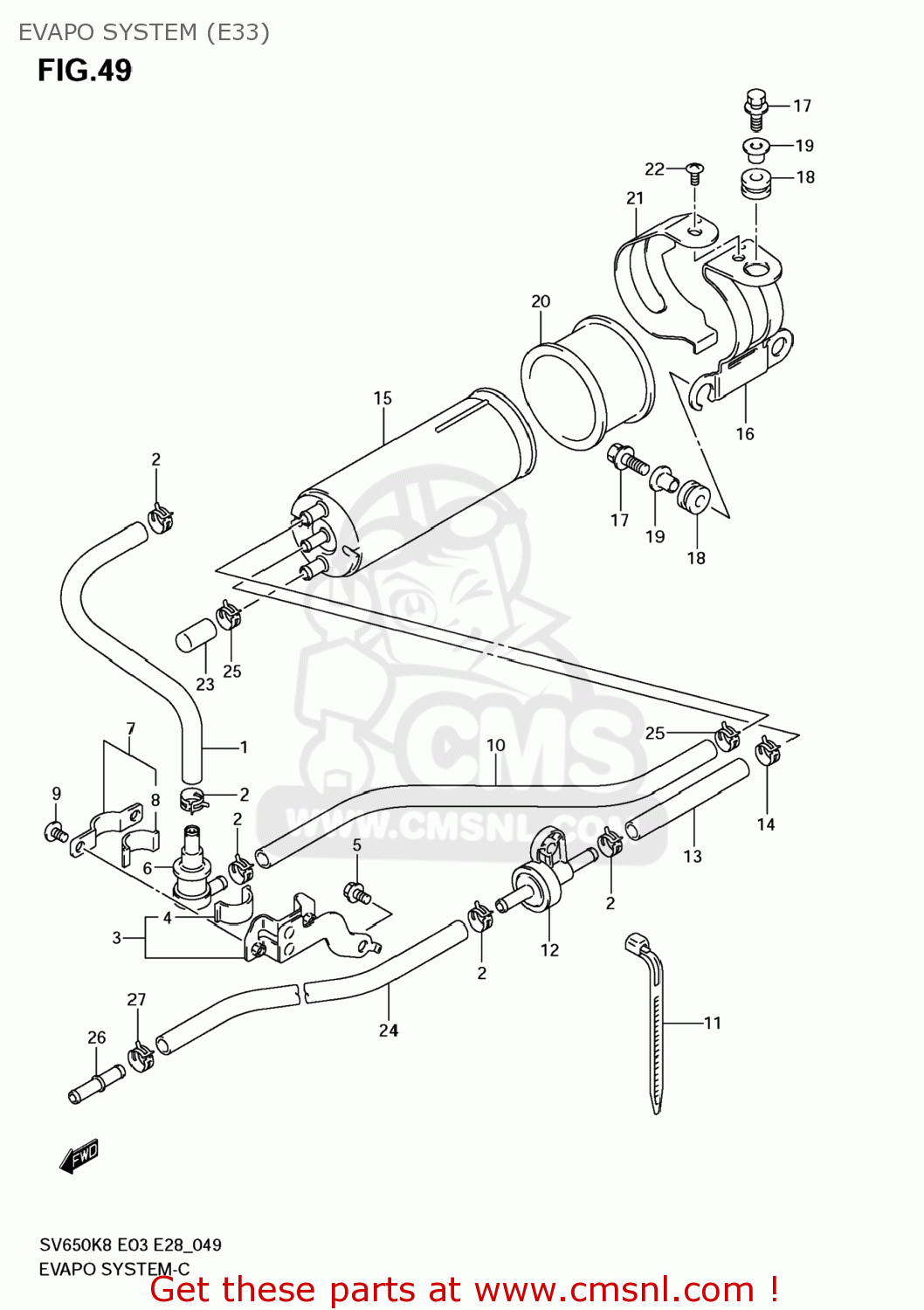

Evapo system (e33) diagram SV650A 2009 (K9) USA (E03)

EVAPO SYSTEM (E33) SV650A 2009 (K9) USA (E03)

EVAPO SYSTEM (E33) SV650A 2009 (K9) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

4443416G10
ref: 1

HOSE,TANK & BREATHER VALVE

€ 16.50

2

0940111413
ref: 2

CLIP

€ 2.50

3

4489016G00
ref: 3

PLATE,BREATHER VALVE

€ 0.00

4

4489424A00
ref: 4

CUSHION

€ 1.50

5

015500610B
ref: 5

BOLT

€ 2.50

6

4424017C00
ref: 6

VALVE,FUEL TANK BREATHER

€ 40.00

7

4489224A00
ref: 7

PLATE,FUEL TANK BREATHER NO.2

€ 3.00

8

4489424A00
ref: 8

CUSHION

€ 1.50

9

021420408B
ref: 9

SCREW

€ 1.50

10

4443516G00
ref: 10

HOSE,BRTHR VALVE & 2 WAY VALVE

€ 17.00

11

0940718402
ref: 11

CLAMP(L:165)

€ 2.50

12

4424024F00
ref: 12

VALVE,2 WAY & BREATHER VALVE

€ 44.50

13

4443716G00
ref: 13

HOSE,2 WAY VALVE & CSTR

€ 12.00

14

0940111413
ref: 14

CLIP

€ 2.50

15

1721026E00
ref: 15

CANISTER ASSY,CHARCOAL

€ 261.50

16

4488116G00
ref: 16

BRACKET,CANISTER

€ 0.00

17

0911606025
ref: 17

BOLT(6X25)

€ 2.50

18

0932008001
ref: 18

CUSHION

€ 3.50

19

0916906062
ref: 19

WASHER

€ 3.00

20

4488326E00
ref: 20

CUSHION,CANISTER

€ 9.00

21

4488216G00
ref: 21

HOLDER,CANISTER

€ 0.00

22

021420610B
ref: 22

SCREW

€ 2.00

23

0925107003
ref: 23

CAP,OD:11.5

€ 2.00

24

0935954113600
ref: 24

HOSE

€ 21.00

25

0940112404
ref: 25

CLIP

€ 2.50

26

0936706009
ref: 26

JOINT

€ 2.50

27

0940111413
ref: 27

CLIP

€ 2.50
