RADIATOR HOSE

SV650A 2009 (K9) USA (E03)

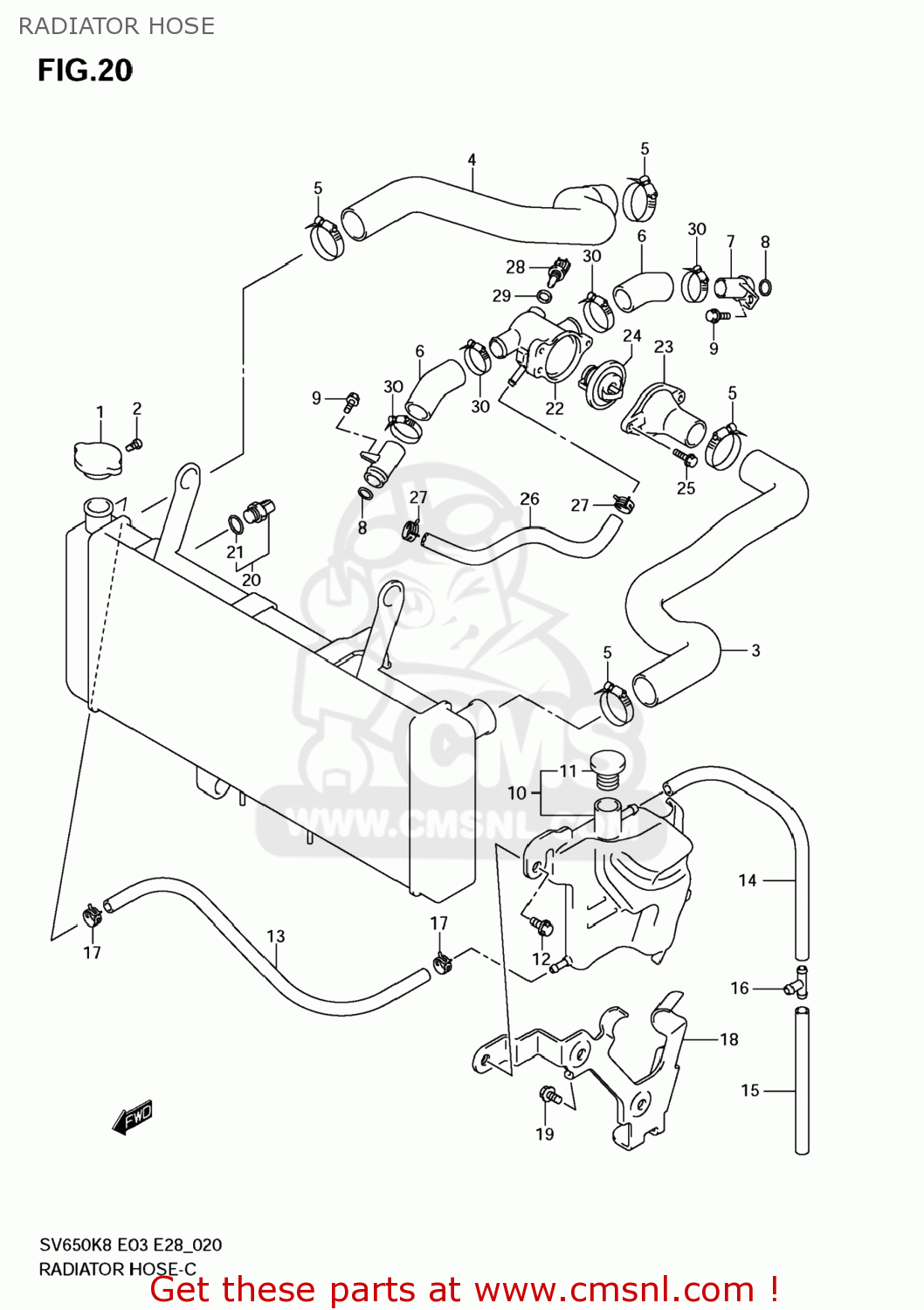

Radiator hose diagram SV650A 2009 (K9) USA (E03)

RADIATOR HOSE SV650A 2009 (K9) USA (E03)

RADIATOR HOSE SV650A 2009 (K9) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1773019D11
ref: 1

CAP,RADIATOR(1.1)

€ 33.50

2

1773303D10
ref: 2

SCREW,RADIATOR CAP

€ 2.00

3

1785117G10
ref: 3

HOSE,RADIATOR INLET

€ 30.50

4

1785217G20
ref: 4

HOSE,RADIATOR OUTLET

€ 27.50

5

0940238512
ref: 5

CLAMP

€ 9.50

6

1785319F00
ref: 6

HOSE,CONNECTOR INLET

€ 11.50

7

1789006G20
ref: 7

UNION,CONNECTOR HOSE

€ 9.50

8

0928018009
ref: 8

O RING(D:3.2,ID:17.8)

€ 8.00

9

071300612A
ref: 9

BOLT

€ 2.50

10

1791017G10
ref: 10

TANK ASSY,RESERVOIR

€ 114.50

11

1793102FA0
ref: 11

CAP,RESERVOIR TANK

€ 4.50

12

0911106085
ref: 12

BOLT(6X12)

€ 4.50

13

0935250901600
ref: 13

HOSE(5X9X600)

€ 6.50

14

0935250901600
ref: 14

HOSE(5X9X600)

€ 6.50

14

0935250901600
ref: 14

HOSE(5X9X600)

€ 6.50

15

0935270103600
ref: 15

HOSE(7X10.2X600)

€ 8.00

15

0935270103600
ref: 15

HOSE(7X10.2X600)

€ 8.00

16

0936708005
ref: 16

3 WAY

€ 4.00

17

0940108411
ref: 17

CLIP

€ 3.00

18

1792017G10
ref: 18

BRACKET,RESERVOIR TANK

€ 18.50

19

015500610A
ref: 19

BOLT

€ 2.00

20

1768050F10
ref: 20

SWITCH,FAN THERMO

€ 29.00

21

1768950F00
ref: 21

O-RING

€ 2.50

22

1766202F11
ref: 22

CONNECTOR,THERMOSTAT INLET

€ 40.00

23

1766317G00
ref: 23

CAP,THERMOSTAT CONNECTOR

€ 18.00

24

1767006G70
ref: 24

THERMOSTAT,WATER

€ 24.50

25

015500616B
ref: 25

BOLT

€ 2.50

26

1785619F00
ref: 26

HOSE,CONNECTOR TO WATER PUMP

€ 14.50

27

0940112409
ref: 27

CLAMP

€ 3.00

28

1365057F00
ref: 28

SENSOR,WATER TEMP

€ 35.50

29

0916812017
ref: 29

GASKET(12X17X1) (NAS)

€ 2.00

30

0940228513
ref: 30

CLAMP

€ 6.50
