REAR MASTER CYLINDER (SV650AK8/SAK8/AK9/SAK9)

SV650A 2009 (K9) USA (E03)

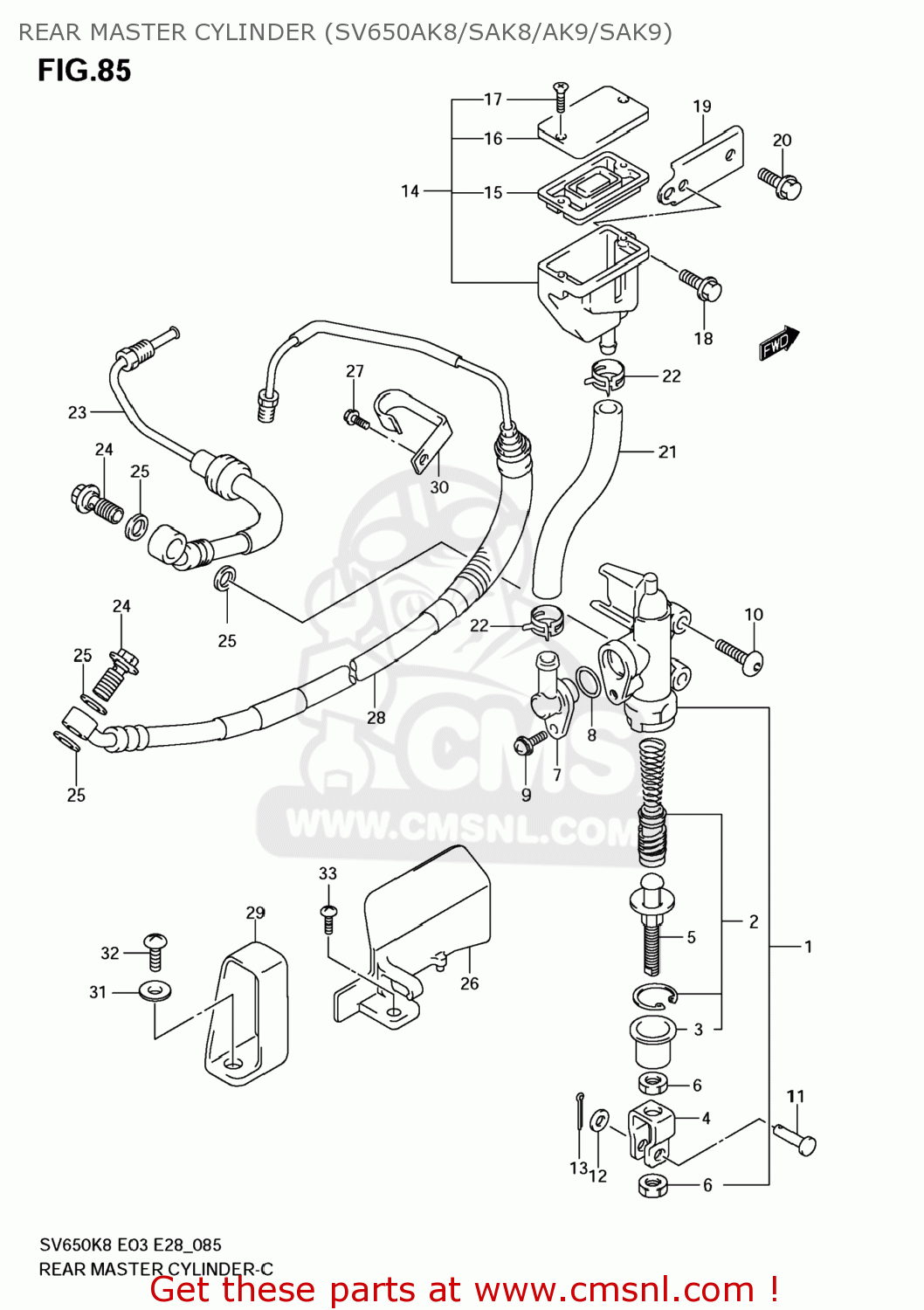

Rear master cylinder (sv650ak8/sak8/ak9/sak9) diagram SV650A 2009 (K9) USA (E03)

REAR MASTER CYLINDER (SV650AK8/SAK8/AK9/SAK9) SV650A 2009 (K9) USA (E03)

REAR MASTER CYLINDER (SV650AK8/SAK8/AK9/SAK9) SV650A 2009 (K9) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

6960016G00
ref: 1

CYLINDER ASSY,RR MASTER

€ 254.50

2

6960034820
ref: 2

PISTON/CUP SET

€ 37.00

3

6969100A00
ref: 3

BOOT

€ 3.50

4

6969227A30
ref: 4

YOKE

€ 12.50

5

6967048B00
ref: 5

ROD,PUSH

€ 20.50

6

6969305A00
ref: 6

NUT

€ 1.50

7

6967205A00
ref: 7

CONNECTOR

€ 4.50

8

6968634200
ref: 8

O RING

€ 3.50

9

021127412A
ref: 9

SCREW

€ 2.50

10

0913906028
ref: 10

SCREW(6X20)

€ 3.50

11

0920006068
ref: 11

PIN(6X18.2)

€ 5.00

12

083220106B
ref: 12

WASHER

€ 2.00

13

041112015A
ref: 13

PIN

€ 1.50

14

6974001D02
ref: 14

TANK ASSY,RR RESERVOIR

€ 58.00

15

5966704700
ref: 15

DIAPHRAGM

€ 8.00

16

5966905D00
ref: 16

CAP

€ 13.50

17

6968904A00
ref: 17

SCREW

€ 2.00

18

0910306222
ref: 18

BOLT(6X12)

€ 2.00

19

6975016G10
ref: 19

BRACKET,RR RESERVOIR TANK

€ 14.00

20

015500616A
ref: 20

BOLT

€ 2.50

21

6973116G20
ref: 21

HOSE,RR RESERVOIR TANK

€ 17.00

22

0940113417
ref: 22

CLIP

€ 2.50

23

6920017G00
ref: 23

HOSE ASSY,RR BRAKE NO.1

€ 173.00

24

0936010062
ref: 24

BOLT UNION

€ 5.00

25

0916110009
ref: 25

WASHER(10X15X1.5)

€ 2.00

26

6119606G00
ref: 26

GUIDE,RR BRAKE HOSE FR

€ 18.00

27

015470612A
ref: 27

BOLT

€ 2.00

28

6940017G00
ref: 28

HOSE ASSY,RR BRAKE NO.2

€ 131.50

29

6924316G00
ref: 29

GUIDE,RR BRAKE HOSE

€ 12.50

30

6926617G00
ref: 30

CLAMP,RR BRAKE HOSE NO.2

€ 10.50

31

0916906041
ref: 31

WASHER

€ 2.00

32

021420616A
ref: 32

SCREW

€ 2.50

33

021420510A
ref: 33
02142-0510B

SCREW

€ 2.50
