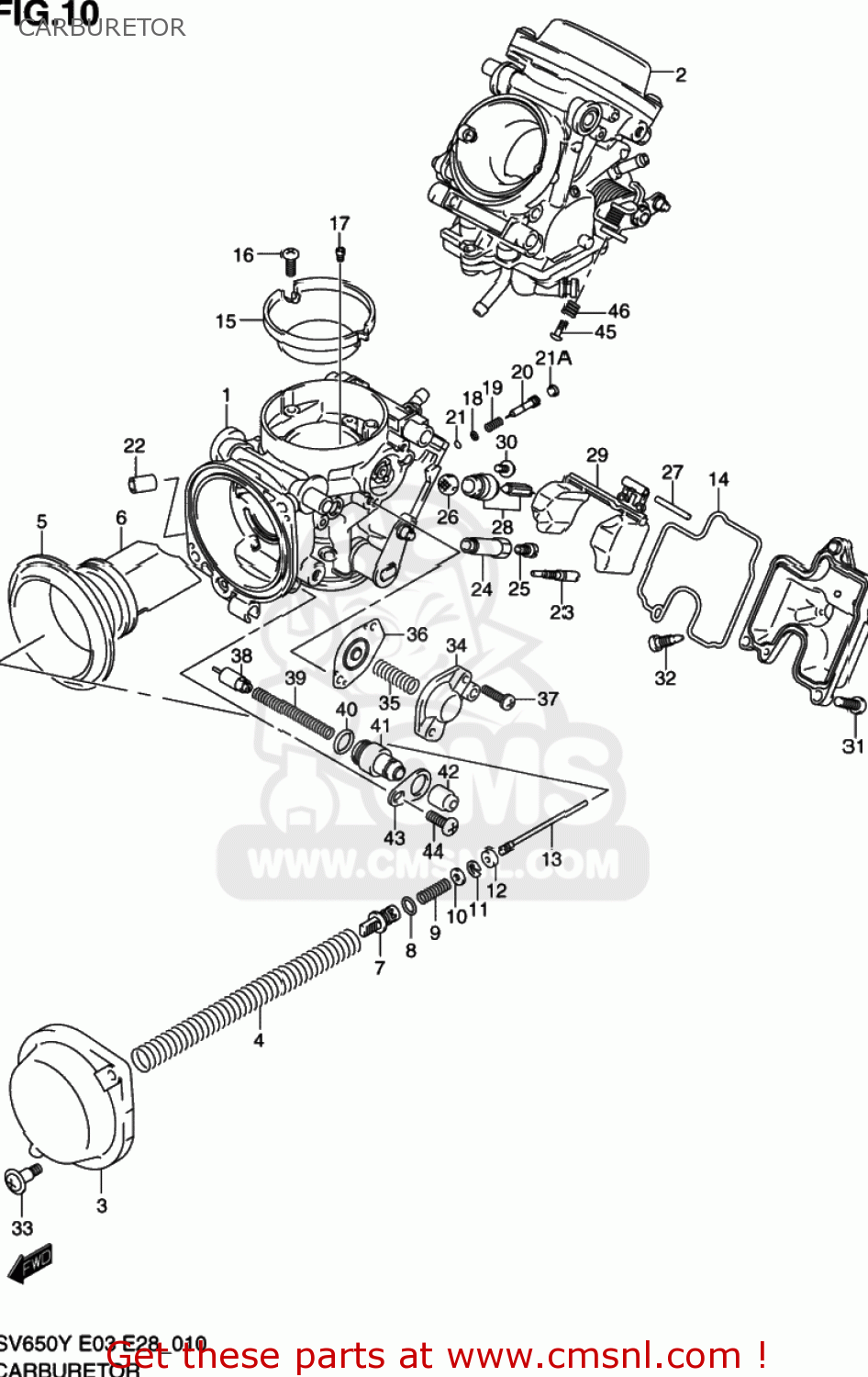

CARBURETOR

ref

part #

description

quantity

1-1

1320120F20
ref: 1-1

CARBURETOR ASSY,FR

€ 0.00

1-2

1320120F40
ref: 1-2

CARBURETOR ASSY,FR

€ 0.00

2-1

1320220F20
ref: 2-1

CARBURETOR ASSY,RR

€ 0.00

2-2

1320220F40
ref: 2-2

CARBURETOR ASSEMBLY,REAR

€ 0.00

3

1350207F00
ref: 3

COVER ASSY,DIAPHRAGM

€ 47.00

4

1348119F00
ref: 4

SPRING

€ 9.00

5

1350733E00
ref: 5

DIAPHRAGM

€ 44.00

6

1350133E00
ref: 6

VALVE,PISTON

€ 80.00

7

1341833E00
ref: 7

HOLDER

€ 4.50

8

0928005004
ref: 8

O RING(D:1.9,ID:4.8)

€ 2.00

9

1348133E00
ref: 9

SPRING

€ 3.00

10

1338244030
ref: 10

WASHER

€ 3.50

11

1339417E60
ref: 11

E RING,MULTIPLE JET NOZZLE

€ 1.50

12-1

1338733E00
ref: 12-1
13387-44030

RING

€ 5.00

12-2

1338744030
ref: 12-2

RING

€ 5.00

13-1

1338320F30
ref: 13-1

JET,NEEDLE(6E42-54-1)

€ 0.00

13-2

1338320F40
ref: 13-2

JET,NEEDLE(6E43-54-1)

€ 0.00

14

1325833E00
ref: 14

O RING

€ 9.50

15

1366720F00
ref: 15

FUNNEL

€ 33.00

16

0211204123
ref: 16
02112-0412A

SCREW

€ 1.50

17-1

0949332007
ref: 17-1

JET,AIR(160)

€ 11.50

17-2

0949230013
ref: 17-2

JET,POWER(150)

€ 13.00

18

1329129900
ref: 18

WASHER

€ 2.00

19

1326848700
ref: 19

SPRING,THROTTLE SCREW

€ 3.50

20

1327919F10
ref: 20

ADJUSTER

€ 12.50

21

1329529900
ref: 21

O RING,PILOT AIR SCREW

€ 4.00

21A

1328105A00
ref: 21A

PLUG

€ 3.50

22

1350817C00
ref: 22

CAP

€ 4.50

23

0949215017
ref: 23

JET,PILOT(15)

€ 19.50

24

1338533E00
ref: 24

HOLDER,JET

€ 25.00

25

0949127014
ref: 25

JET,MAIN(137.5)

€ 8.50

26

1337619F00
ref: 26

FILTER

€ 6.50

27

1325492910
ref: 27

PIN,FLOAT

€ 3.00

28

1337020F00
ref: 28

VALVE ASSY,NEEDLE

€ 74.50

29

1325033E00
ref: 29

FLOAT ASSY

€ 41.00

30

1360205A10
ref: 30

SCREW

€ 4.00

31

0211205127
ref: 31

SCREW

€ 2.50

32-1

1324713A00
ref: 32-1
13247-02340

SCREW,DRAIN

€ 5.50

32-2

1324702340
ref: 32-2

PLUG,DRAIN

€ 5.50

33

1324733E00
ref: 33

SCREW

€ 3.00

34

1350210F00
ref: 34

COVER ASSY

€ 26.00

35

1341719F00
ref: 35

SPRING

€ 4.50

36

1348010F00
ref: 36

DIAPHRAGM ASSY

€ 15.50

37

1360104148
ref: 37

SCREW

€ 2.50

38

1341101400
ref: 38

PLUNGER,STARTER

€ 11.50

39

1341707F00
ref: 39

SPRING

€ 8.00

40

1327818E20
ref: 40

O RING

€ 7.00

41

1341819F00
ref: 41

HOLDER,GUIDE

€ 22.50

42

1368104010
ref: 42

CAP

€ 3.00

43

1342119F00
ref: 43

PLATE

€ 6.50

44

1360105148
ref: 44
13601-05148-XC0

SCREW(5X14)

€ 3.00

45

1326744B00
ref: 45

SCREW

€ 3.50

46

1327144B00
ref: 46

SPRING

€ 4.00
