SEAT

SV650S 2002 (K2) USA (E03)

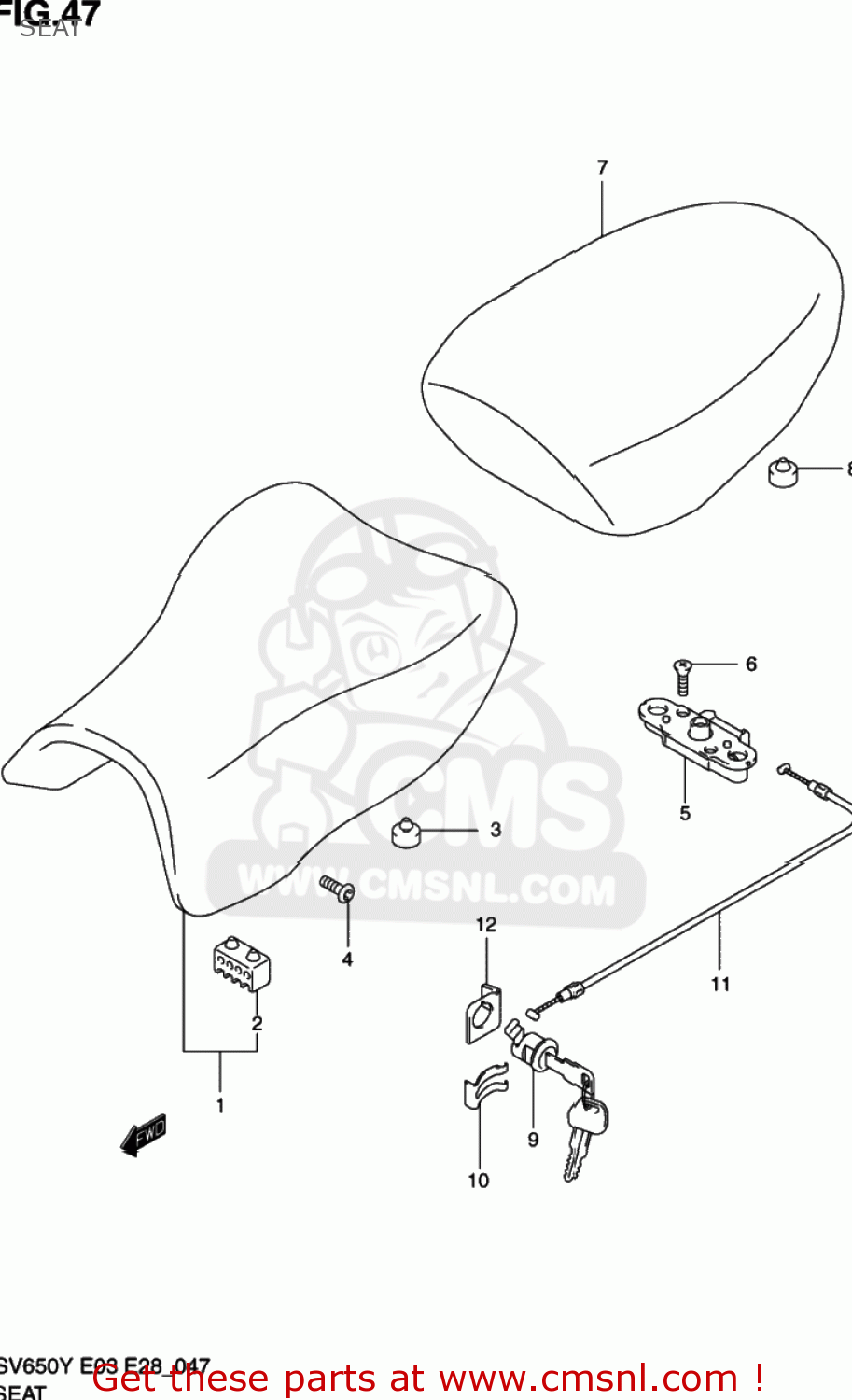

Seat diagram SV650S 2002 (K2) USA (E03)

prices are in EUR

ref

part #

description

quantity

4510019F50W05
ref: 1
45100-19F51-W05

SEAT ASSEMBLY

€ 209.00

4514931300
ref: 2

CUSHION,SEAT(40X20X15)

€ 2.00

0932110002
ref: 3

CUSHION(11.5X22X20)

€ 2.00

0910606064
ref: 4

BOLT(6X18)

€ 6.00

4522020A01
ref: 5
45220-47H00

BRACKET,SEAT SUPPORT,RIGHT

€ 79.50

0212206303
ref: 6
02122-0630B

SCREW

€ 2.00

4530019F50W05
ref: 7

SEAT ASSY,PILLION

€ 174.50

0932110011
ref: 8

CUSHION

€ 3.00

9570014810
ref: 9

LOCK SET,SEAT

€ 75.50

4528911F00
ref: 10

PLATE,SEAT LOCK ASSY

€ 3.00

4528038400
ref: 11

CABLE,SEAT LOCK

€ 10.00

4528814F00
ref: 12

GUIDE,SEAT LOCK CABLE

€ 3.00
