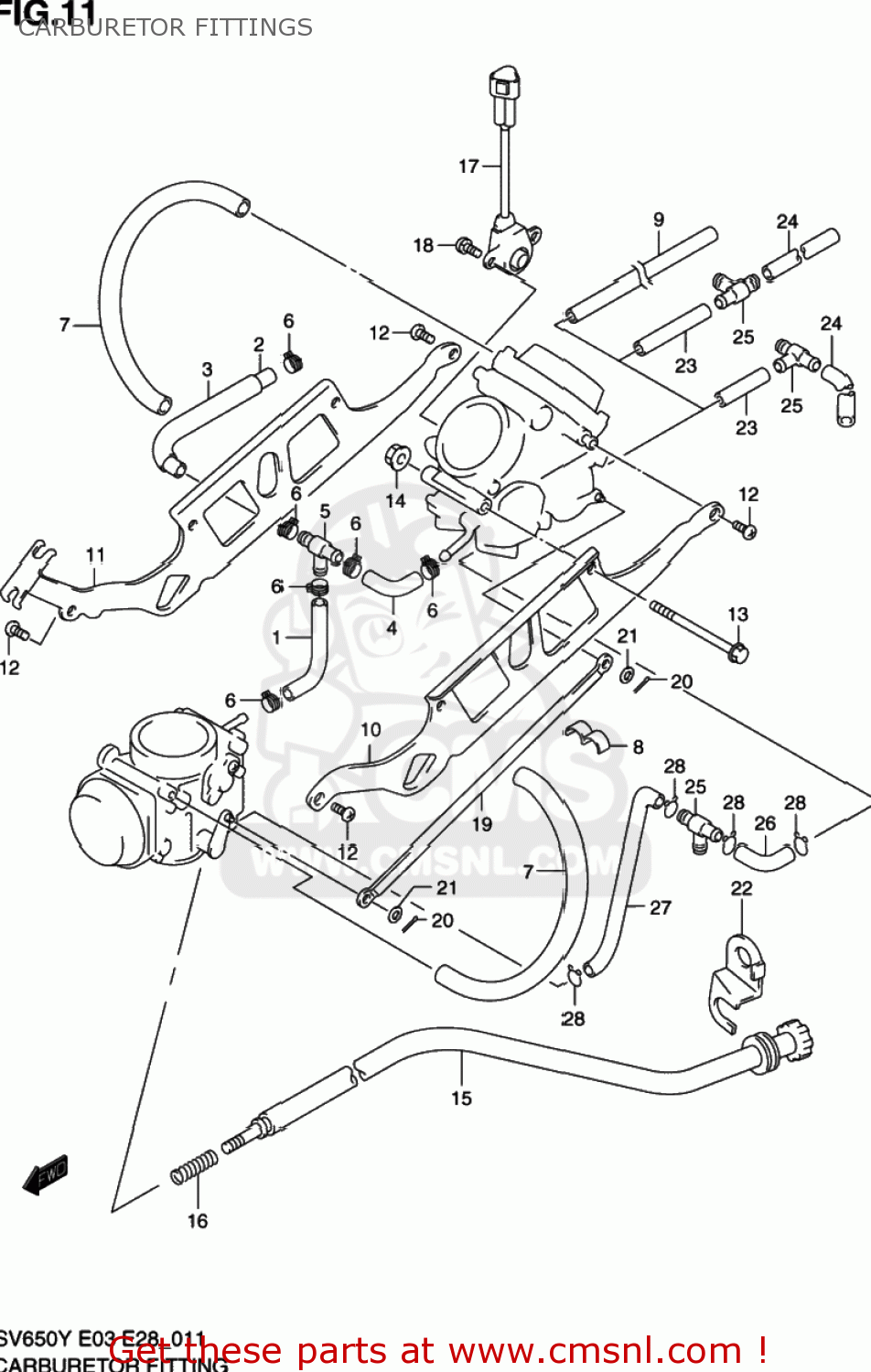

CARBURETOR FITTINGS

ref

part #

description

quantity

1

1368448B10
ref: 1

HOSE

€ 19.50

2-1

1368419F00
ref: 2-1

HOSE (5.3X10.5X125)

€ 6.00

2-2

1368419F30
ref: 2-2

HOSE(5.3X10.5X125)

€ 11.00

3-1

1368419F10
ref: 3-1

HOSE (11X15X90)

€ 6.00

3-2

1368419F40
ref: 3-2

HOSE(11X15X70)

€ 11.00

4

1368419F20
ref: 4

HOSE,5.3X10.5

€ 10.00

5

1368548B00
ref: 5

NIPPLE

€ 9.00

6

1367119F00
ref: 6

CLIP

€ 3.50

7

1368619F00
ref: 7

HOSE(7X11X250)

€ 13.50

8

1367119F10
ref: 8

CLIP

€ 6.00

9

0935250903600
ref: 9

HOSE(5X9X600)

€ 28.50

9

0935250903600
ref: 9

HOSE(5X9X600)

€ 28.50

10

1348220F00
ref: 10

PLATE

€ 46.00

11

1344720F00
ref: 11

PLATE

€ 46.00

12

1360205109
ref: 12

SCREW

€ 3.50

13

1361219F00
ref: 13

BOLT

€ 6.00

14

1332419F00
ref: 14

NUT

€ 2.50

15

1326719F00
ref: 15

SCREW,ADJUST

€ 81.00

16

1327133C00
ref: 16

SPRING

€ 4.50

17

1358019F00
ref: 17

SENSOR ASSY

€ 125.50

18

1360219B50
ref: 18

SCREW

€ 3.00

19

1355319F00
ref: 19

LEVER ASSY

€ 52.00

20

1356319F00
ref: 20

PIN

€ 4.50

21

1361545010
ref: 21

WASHER,STARTER SHAFT

€ 3.50

22

1327919F00
ref: 22

PLATE,IDLE ADJUST

€ 5.50

23-1

1368310D20
ref: 23-1
13683-42E10

HOSE (5X9X60)

€ 3.50

23-2

1368420F30
ref: 23-2
13683-42E10

HOSE (5X9X40)

€ 3.50

24

0935250901600
ref: 24

HOSE(5X9X600)

€ 6.50

24

0935250901600
ref: 24

HOSE(5X9X600)

€ 6.50

25

1368548B00
ref: 25

NIPPLE

€ 9.00

26

1368419F20
ref: 26

HOSE,5.3X10.5

€ 10.00

27

1368720F40
ref: 27

HOSE(5.3X10.5)

€ 0.00

28

0940110410
ref: 28
09401-10401

CLIP

€ 1.50

all assemblies
