SPEEDOMETER (SV650SX/SY/SK1/SK2)
SV650S 2002 (K2) USA (E03)

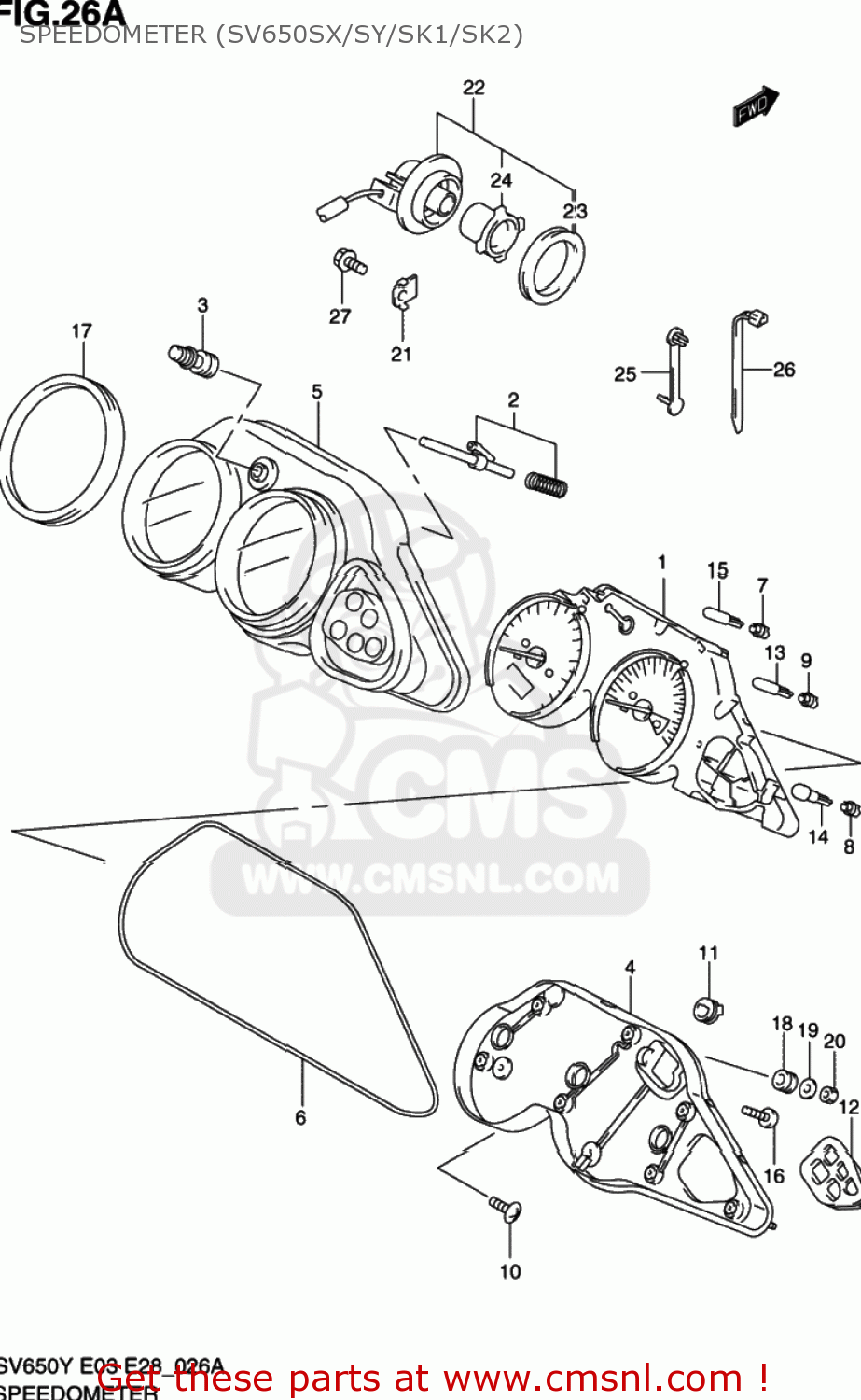

Speedometer (sv650sx/sy/sk1/sk2) diagram SV650S 2002 (K2) USA (E03)
SPEEDOMETER (SV650SX/SY/SK1/SK2) SV650S 2002 (K2) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
3411920F21
ref: 1-1
SPEEDOMETER
€ 736.00
1-2
3411920F30
ref: 1-2
SPEEDOMETER,SV
€ 718.00
1-3
3411920F31
ref: 1-3
SPEEDOMETER
€ 718.00
2
3412302F00
ref: 2
LEVER
€ 5.50
3
3412402F00
ref: 3
SWITCH,GUM
€ 9.50
4-1
3413002F00
ref: 4-1
34130-02F01
CASE ASSEMBLY
€ 77.50
4-2
3413002F01
ref: 4-2
CASE ASSY
€ 77.50
5
3415019F00
ref: 5
VISOR
€ 136.00
6
3415302F00
ref: 6
GASKET (NAS)
€ 9.50
7
3417271E70
ref: 7
SOCKET,BULB
€ 7.50
8
3417319D00
ref: 8
SOCKET
€ 17.00
9
3417319D70
ref: 9
SOCKET
€ 12.00
10
3418333DC0
ref: 10
SCREW(4X14)
€ 3.00
11
3419802F00
ref: 11
BLIND,CAP
€ 12.00
12
3419802F10
ref: 12
BLIND
€ 12.50
13
0947112085
ref: 13
BULB(12V3W,WB371,T7)
€ 3.00
14
0947112100
ref: 14
BULB(12V1.7W,WB372,T7)
€ 2.00
15
0947112189
ref: 15
BULB(14V,0.84W)
€ 4.50
16
0321104207
ref: 16
SCREW
€ 1.50
17
3418802F00
ref: 17
CUSHION
€ 5.00
18
3499643410
ref: 18
CUSHION,METER
€ 3.00
19
0916005037
ref: 19
WASHER(5.5X16X1.2)
€ 1.50
20
0831000053
ref: 20
08310-0005A
NUT
€ 2.50
21
3493814F00
ref: 21
GUIDE,SENSOR LEAD
€ 4.00
22
3499021E00
ref: 22
SENSOR,SPEED
€ 244.50
23
0928644001
ref: 23
SEAL,OIL(44X55X6)
€ 10.00
24
3498321E00
ref: 24
ROTOR,SPEEDOMETER
€ 30.00
25
0940703401
ref: 25
CLAMP(L:33)
€ 3.50
26
0940714407
ref: 26
CLAMP(L:145)
€ 4.00
27
0155006123
ref: 27
01550-0612A
BOLT
€ 2.50
