ELECTRICAL (MODEL K3/K4/K5/K6)

SV650S 2007 (K7) USA (E03)

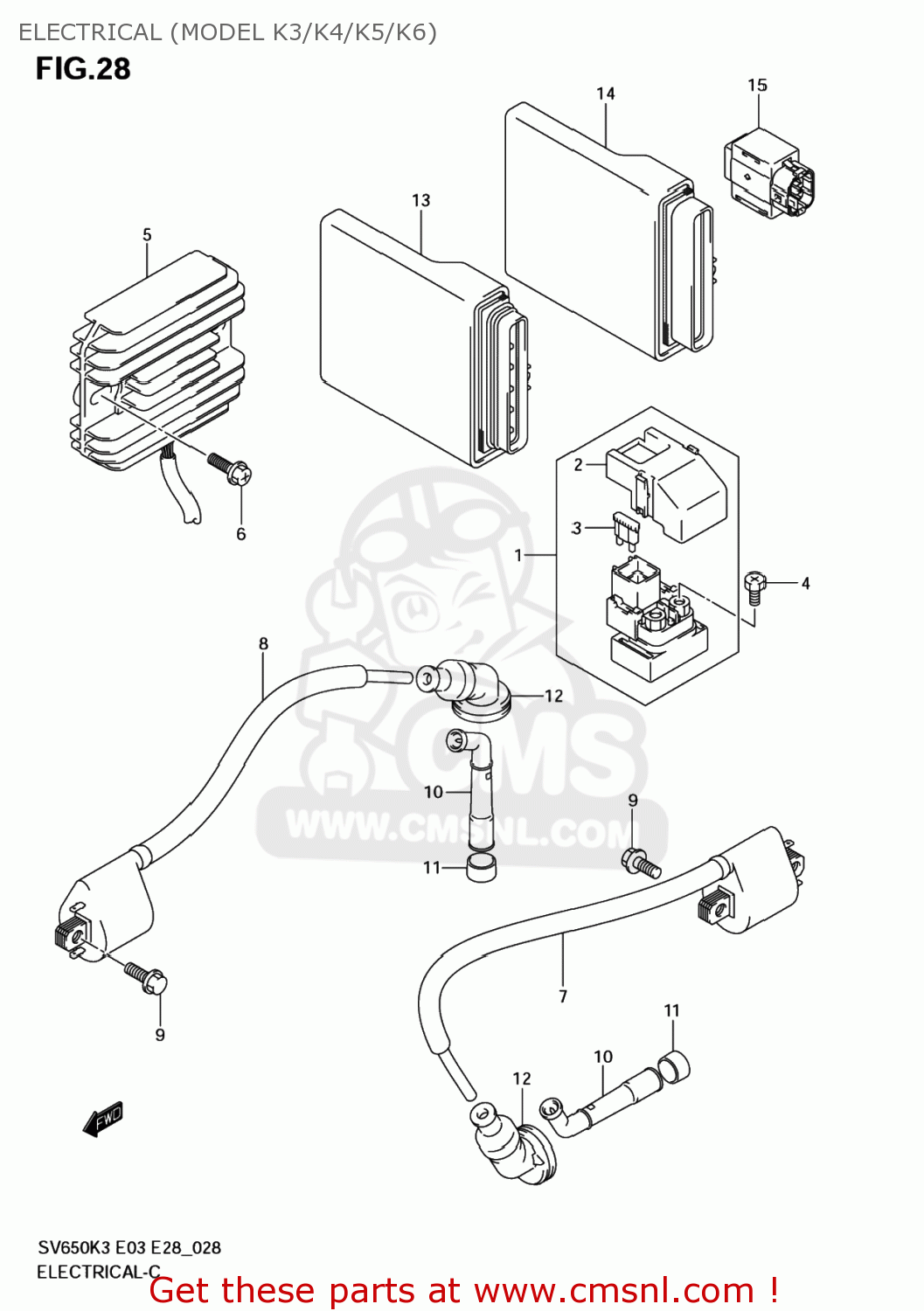

Electrical (model k3/k4/k5/k6) diagram SV650S 2007 (K7) USA (E03)

ELECTRICAL (MODEL K3/K4/K5/K6) SV650S 2007 (K7) USA (E03)

ELECTRICAL (MODEL K3/K4/K5/K6) SV650S 2007 (K7) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3180006G00
ref: 1

RELAY ASSY,STARTING MOTOR

€ 78.50

2

3186147E00
ref: 2

COVER

€ 10.50

3

0948130101
ref: 3

FUSE(30A)

€ 6.00

4

0912806013
ref: 4

SCREW(6X8)

€ 1.50

5

3280016G00
ref: 5
32800-16G01

RECTIFIER ASSY

€ 301.00

6

021620620A
ref: 6
02162-0620C

SCREW

€ 2.00

7

3341017G00
ref: 7

COIL ASSY,IGNITION

€ 86.50

8

3342017G00
ref: 8

COIL ASSY,IGNITION

€ 116.00

9

0154706203
ref: 9
01547-0620B

SCREW

€ 2.50

10

3351017G00
ref: 10

CAP ASSY,SPARK PLUG

€ 28.50

11

3354123E01
ref: 11

SEAL,SPARK PLUG CAP

€ 7.00

12

3354217G00
ref: 12
33542-17G01

SEAL,HIGH TENS

€ 5.50

13-1

3292017G20
ref: 13-1

CONTROL UNIT,FI

€ 0.00

13-1

3292017G20
ref: 13-1

CONTROL UNIT,FI

€ 0.00

13-2

3292017G40
ref: 13-2

CONTROL UNIT,FI

€ 0.00

14

3292017G40
ref: 14

CONTROL UNIT,FI

€ 0.00

15

3396006G10
ref: 15

SENSOR ASSY,FUEL CUT

€ 75.00
