REAR CYLINDER HEAD (MODEL K7)
SV650S 2007 (K7) USA (E03)

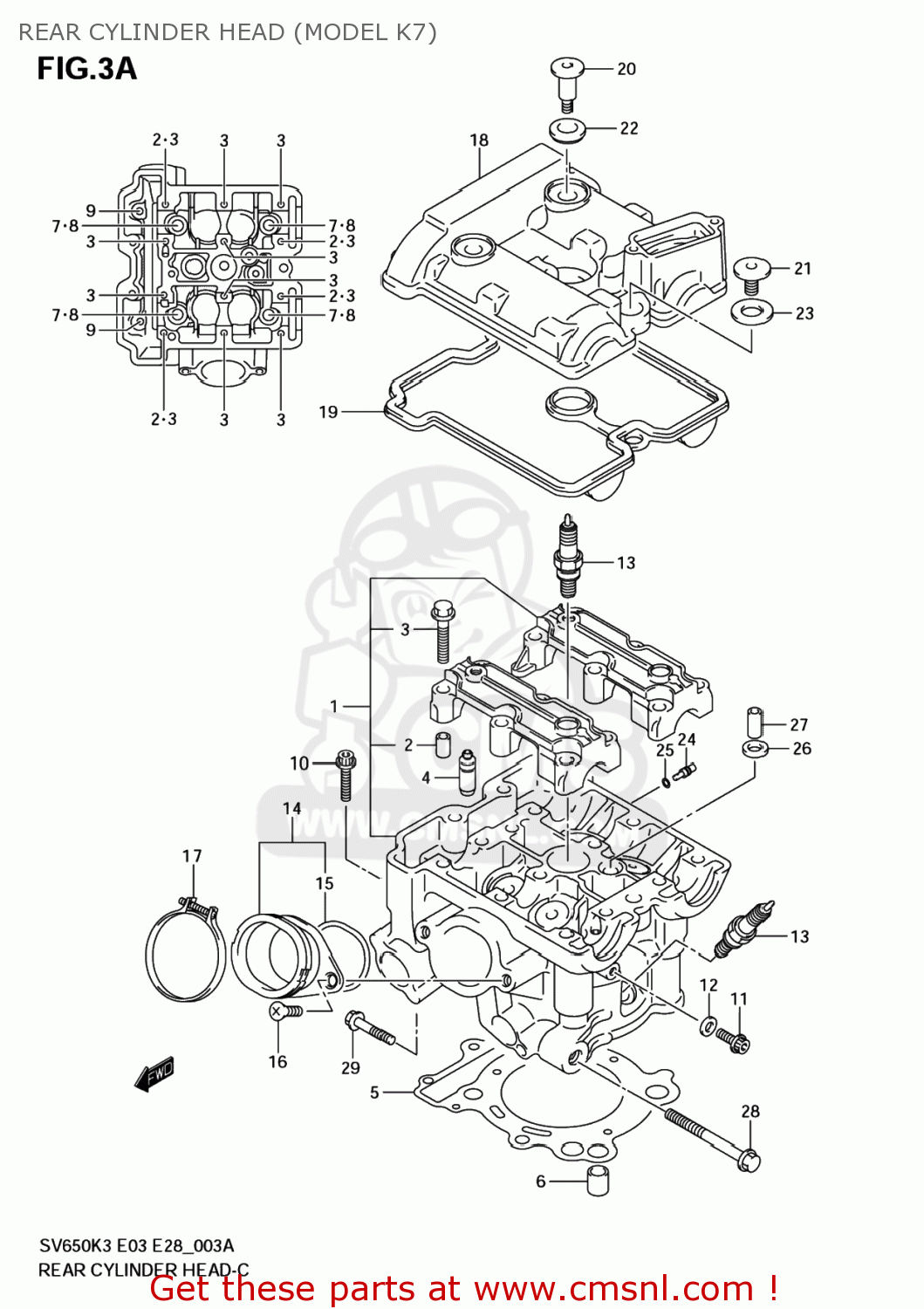

Rear cylinder head (model k7) diagram SV650S 2007 (K7) USA (E03)
REAR CYLINDER HEAD (MODEL K7) SV650S 2007 (K7) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1110317G20
ref: 1
HEAD ASSY,CYLINDER RR
€ 772.50
2
0920608001
ref: 2
PIN(6.2X8X11)
€ 2.00
3
0910306026
ref: 3
BOLT(6X39)
€ 2.00
4
1111518D72
ref: 4
GUIDE,VALVE
€ 18.50
5
1114120F00
ref: 5
GASKET,CYLINDER HEAD (NAS)
€ 31.50
6
0421113189
ref: 6
PIN
€ 2.50
7
0916010082
ref: 7
WASHER(10.5X19X2)
€ 2.00
8
0910310272
ref: 8
BOLT(10X160)
€ 14.00
9
0910306103
ref: 9
BOLT(6X70)
€ 2.50
10
0712006403
ref: 10
07120-0640B
BOLT
€ 3.50
11
0712006123
ref: 11
07120-0612B
BOLT
€ 3.50
12
0916806023
ref: 12
GASKET(5.8X13X1.2) (NAS)
€ 2.00
13-1
0948200456
ref: 13-1
PLUG,SPARK(CR8E)
€ 7.00
13-2
0948200457
ref: 13-2
PLUG,SPARK(U24ESR-N)
€ 7.00
13-3
0948200458
ref: 13-3
PLUG,SPARK(NGK CR9E)
€ 8.50
13-4
0948200459
ref: 13-4
PLUG,SPARK(U27ESR-N)
€ 8.50
13-5
0948200516
ref: 13-5
PLUG,SPARK(CR7E)
€ 8.50
13-6
0948200515
ref: 13-6
PLUG,SPARK(U22ESR-N)
€ 8.50
14
1310217G10
ref: 14
PIPE ASSY,INTAKE RR
€ 42.00
15
0928046006
ref: 15
O RING(D:2.4,ID:47X42)
€ 8.00
16
021220616A
ref: 16
SCREW
€ 2.00
17
0940262208
ref: 17
CLAMP
€ 6.00
18
1117217G00
ref: 18
COVER,CYLINDER HEAD RR
€ 165.00
19
1117319F01
ref: 19
GASKET,CYLINDER HEAD COVER (NAS)
€ 26.50
20
0910607009
ref: 20
BOLT(7X17.5)
€ 4.50
21
0910607010
ref: 21
BOLT(7X31)
€ 4.50
22
1119127E00
ref: 22
WASHER,CYL HEAD COVER
€ 4.50
23
1119213E00
ref: 23
CUSHION,HEAD COVER BOLT
€ 4.50
24
0949380005
ref: 24
JET(8)
€ 12.00
25
0928004004
ref: 25
O RING(D:1.2,ID:4)
€ 2.00
26
1118235F00
ref: 26
GASKET,2ND AIR PASSAGE (NAS)
€ 4.00
27
0920608007
ref: 27
PIN(6.2X8X16)
€ 2.50
28
0910310148
ref: 28
BOLT(10X110)
€ 7.50
29
0155010557
ref: 29
BOLT
€ 3.00
