HANDLE LEVER (MODEL K3/K4/K5/K6)

SV650S 2007 (K7) USA (E03)

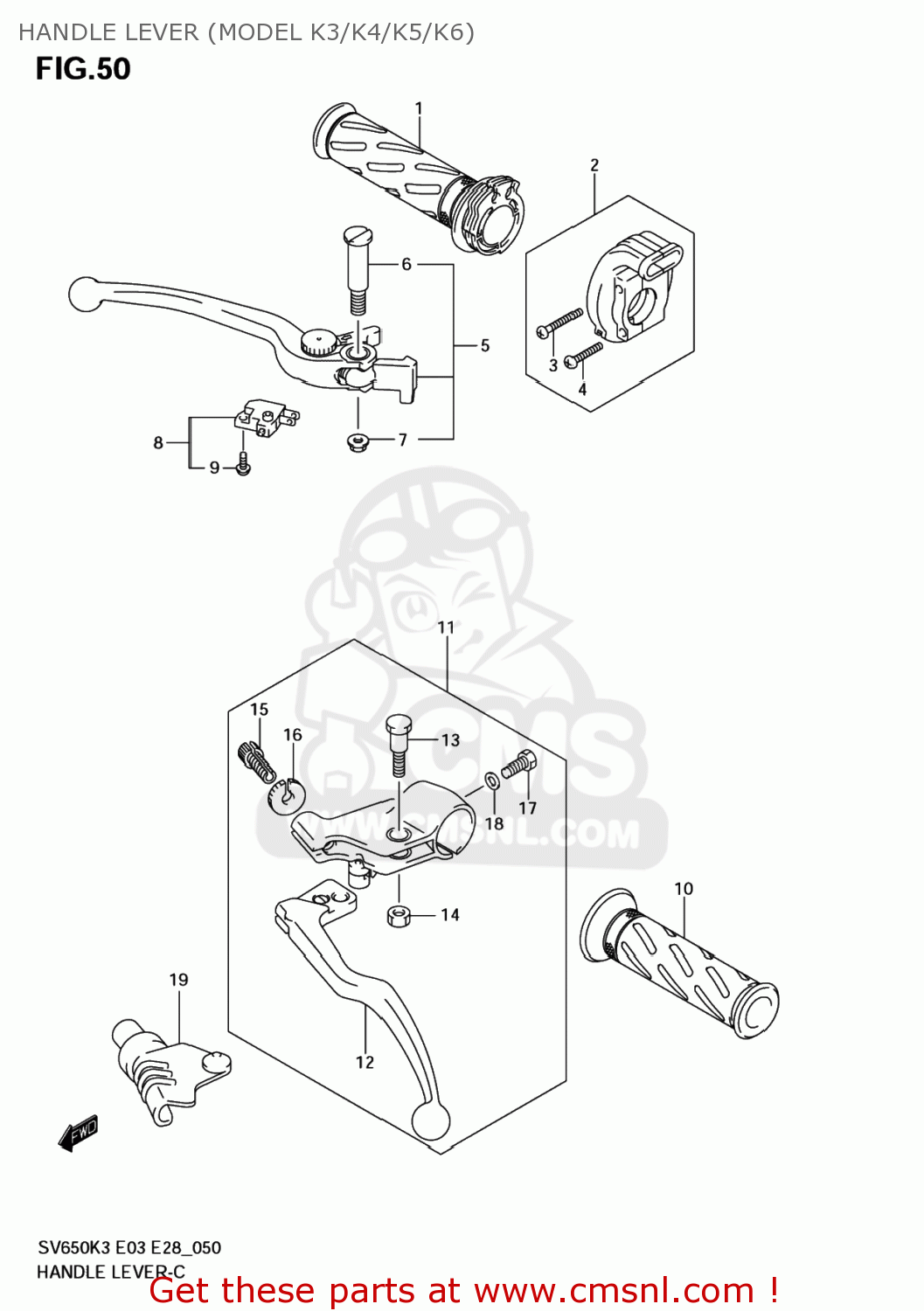

Handle lever (model k3/k4/k5/k6) diagram SV650S 2007 (K7) USA (E03)

HANDLE LEVER (MODEL K3/K4/K5/K6) SV650S 2007 (K7) USA (E03)

HANDLE LEVER (MODEL K3/K4/K5/K6) SV650S 2007 (K7) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

5711046E01
ref: 1-1

GRIP,THROTTLE

€ 26.00

1-2

5711045D02
ref: 1-2

GRIP,THROTTLE

€ 26.00

2

5710014D00
ref: 2

CASE ASSY,THROTTLE

€ 24.00

3

0912505066
ref: 3

SCREW(5X25)

€ 2.00

4

0211205203
ref: 4
02112-0520B

SCREW

€ 2.50

5

5730033E01
ref: 5

LEVER ASSY,BRAKE

€ 44.00

6

5743117C00
ref: 6

BOLT,LEVER PIVOT

€ 8.00

7

0831610063
ref: 7
08316-1006B

NUT

€ 2.50

8-1

5746017C00
ref: 8-1
57460-17C01

SWITCH ASSEMBLY,STOP

€ 32.50

8-2

5746017C11
ref: 8-2
57460-14J01

SWITCH ASSY,ST

€ 32.50

9

5746517C00
ref: 9

SCREW

€ 1.50

10

5721122D01
ref: 10
57211-22D01-291

GRIP,LEFT

€ 11.50

11-1

5750010D01
ref: 11-1

LEVER ASSY,CLUTCH

€ 107.50

11-2

5750010D80
ref: 11-2

LEVER ASSY,CLUTCH

€ 117.00

12

5762027A31
ref: 12

LEVER,CLUTCH

€ 34.00

13

5753114A00
ref: 13

BOLT,LEVER SET

€ 8.50

14

0831921063
ref: 14
08319-2106B

NUT

€ 2.50

15

5744111010
ref: 15

ADJUSTER,CABLE

€ 8.00

16

5744211010
ref: 16

NUT,CABLE ADJUSTER

€ 4.00

17

0150006203
ref: 17
01500-0620A

BOLT

€ 2.00

18

0832201063
ref: 18
08322-0106B

WASHER

€ 2.00

19

5766145C00
ref: 19

COVER,CLUTCH LEVER

€ 13.00
