MAGNETO

SV650S 2007 (K7) USA (E03)

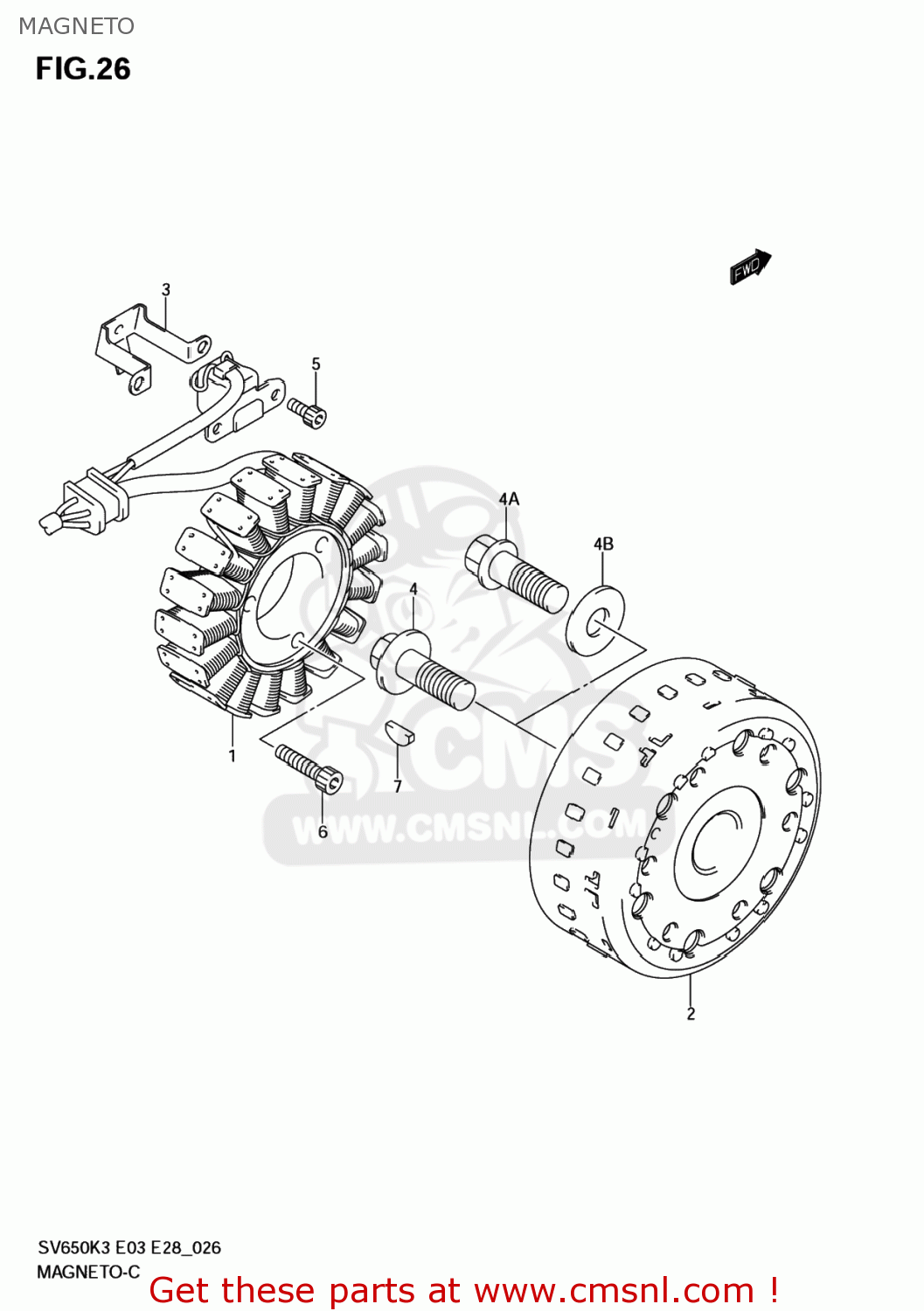

Magneto diagram SV650S 2007 (K7) USA (E03)

prices are in EUR

ref

part #

description

quantity

3210117G00
ref: 1

STATOR ASSY

€ 503.00

2-1

3210217G00
ref: 2-1
32102-17G01

ROTOR ASSY

€ 326.50

2-2

3210217G01
ref: 2-2

ROTOR ASSY

€ 326.50

3237119F00
ref: 3

CLAMP,MAGNETO LEAD

€ 6.00

3249106G00
ref: 4

BOLT,MAGNETO ROTOR

€ 7.50

0910312004
ref: 4A

BOLT(12X40)

€ 3.00

0916012036
ref: 4B

WASHER(12X30X3)

€ 3.00

0713005123
ref: 5
07130-0512B

BOLT

€ 2.50

0713006303
ref: 6
07130-0630B

BOLT

€ 3.00

0942004008
ref: 7

KEY

€ 3.50
