OIL COOLER
SV650S 2008 (K8) USA (E03)

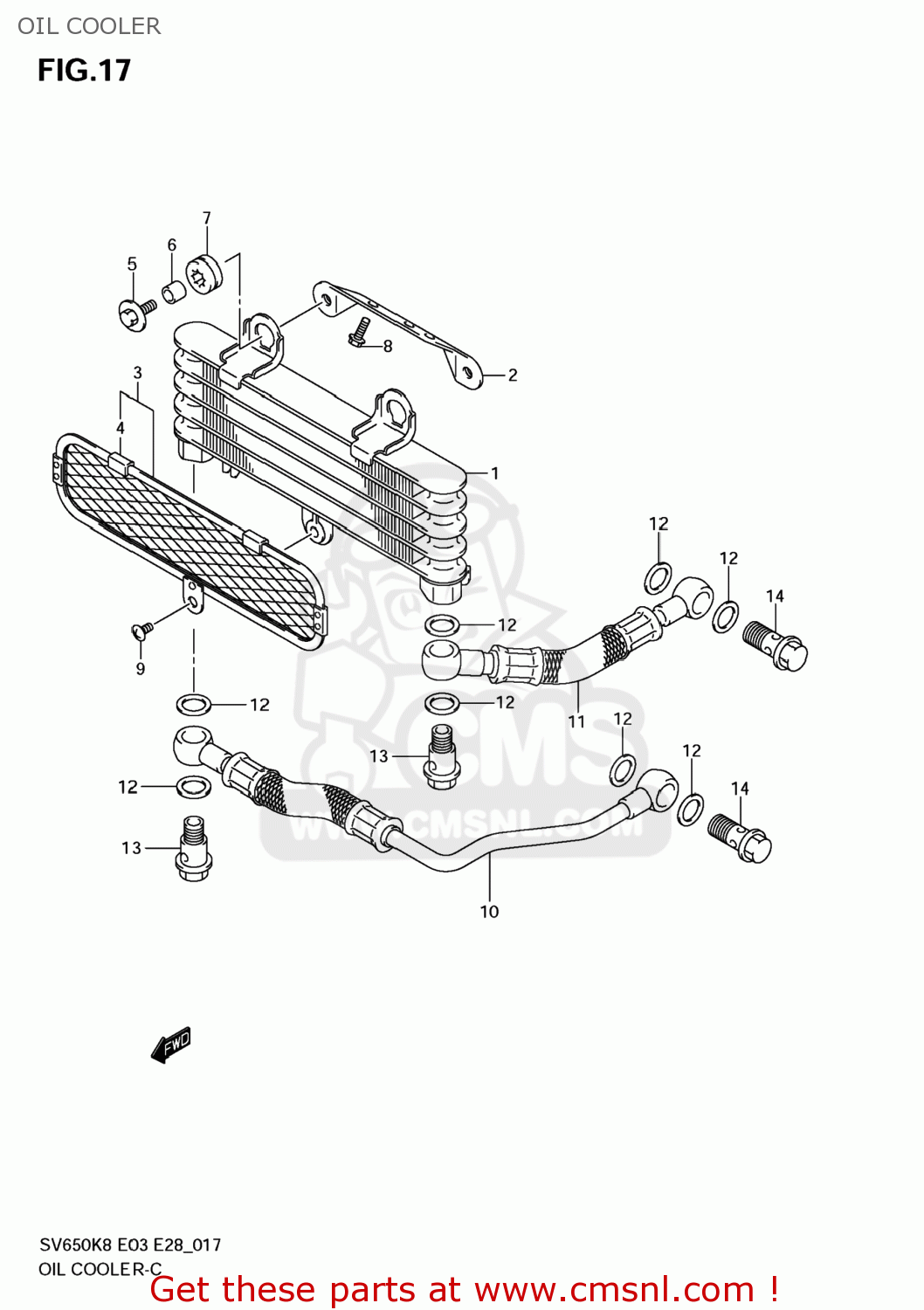

Oil cooler diagram SV650S 2008 (K8) USA (E03)
OIL COOLER SV650S 2008 (K8) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1660027G00
ref: 1
COOLER ASSY,OIL
€ 760.00
2
1662027G00
ref: 2
BRACKET,OIL COOLER
€ 8.50
3
1665027G01
ref: 3
GUARD,OIL COOLER
€ 33.00
4
1776509F00
ref: 4
PROTECTOR,CTR
€ 2.50
5
0911606167
ref: 5
BOLT(6X20)
€ 2.00
6
0918006310
ref: 6
SPACER(6.5X10X10)
€ 2.00
7
0932009009
ref: 7
CUSHION
€ 5.00
8
015500616B
ref: 8
BOLT
€ 2.50
9
021420510B
ref: 9
SCREW
€ 2.50
10
1646017G00
ref: 10
HOSE,OIL COOLER,R
€ 132.50
11
1647017G00
ref: 11
HOSE,OIL COOLER,L
€ 103.50
12
0916814015
ref: 12
GASKET(14X20X1.5) (NAS)
€ 1.50
13
0936012012
ref: 13
09360-12012-A05
BOLT UNION
€ 8.00
14
0936014012
ref: 14
BOLT UNION
€ 10.00
