SPEEDOMETER (SV650K8/K9)

SV650S 2008 (K8) USA (E03)

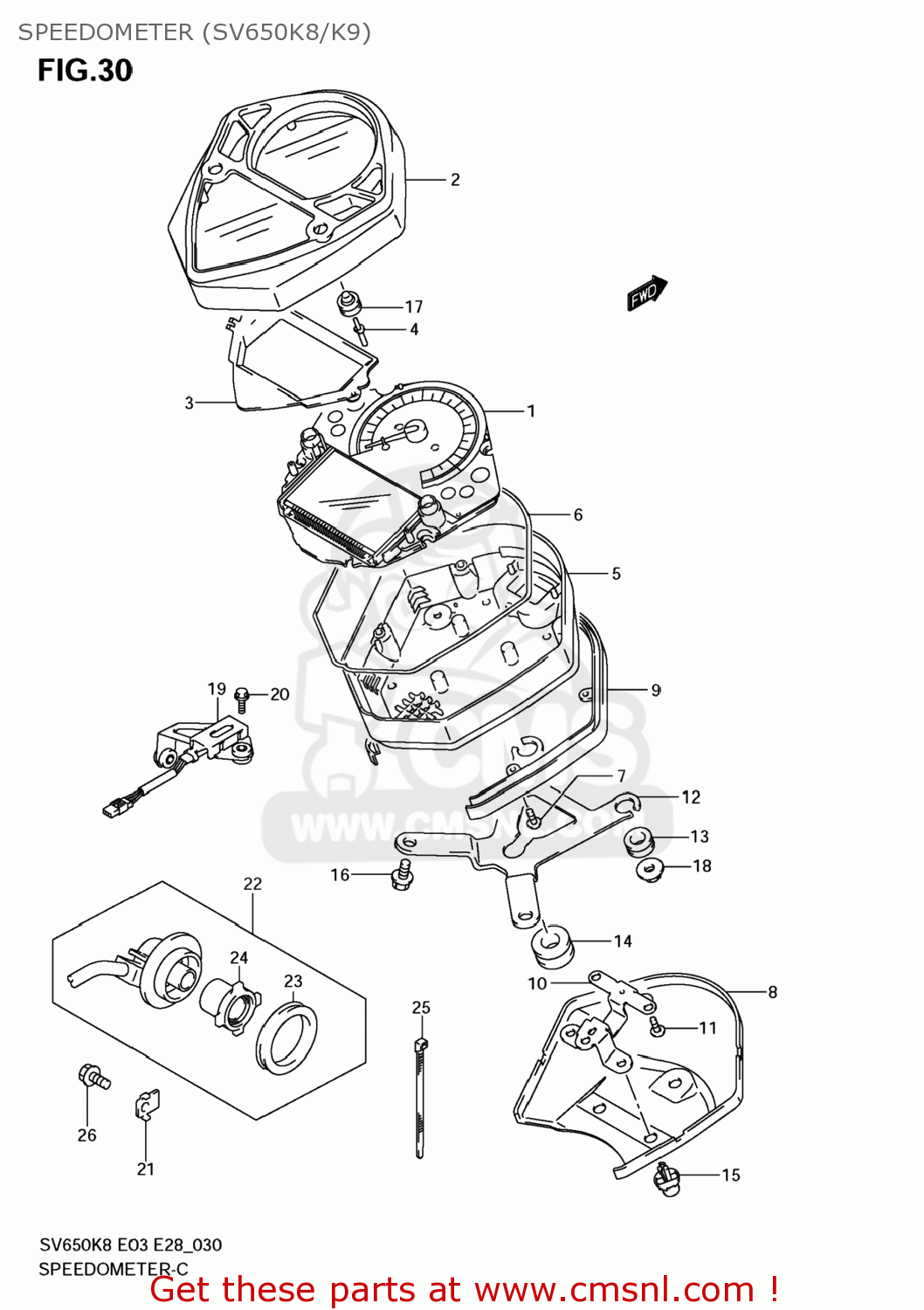

Speedometer (sv650k8/k9) diagram SV650S 2008 (K8) USA (E03)

SPEEDOMETER (SV650K8/K9) SV650S 2008 (K8) USA (E03)

SPEEDOMETER (SV650K8/K9) SV650S 2008 (K8) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

3412017GE0
ref: 1-1

SPEEDOMETER

€ 539.00

1-2

3412017GC0
ref: 1-2

SPEEDOMETER

€ 1,768.50

2

3415016G30
ref: 2

CASE,SPEEDOMETER UPR

€ 174.50

3

3412516G00
ref: 3

PLATE,SPEEDOMETER

€ 10.50

4

3412416G00
ref: 4

KNOB,SPEEDOMETER

€ 6.00

5

3415216G00
ref: 5

CASE,SPEEDOMETER LWR

€ 49.00

6

3415316G00
ref: 6

GASKET,METER CASE (NAS)

€ 13.00

7

3418316G30
ref: 7

SCREW,SPEEDOMETER

€ 3.50

8

3415616G30
ref: 8

COVER,SPEEDOMETER LWR

€ 65.00

9

3415716G30
ref: 9

DECORATION PLATE,METER CASE

€ 75.50

10

3419516G30
ref: 10

HOLDER,SPEEDOMETER

€ 22.00

11

3414916B00
ref: 11

SCREW(4X14)

€ 2.00

12

3416216G30
ref: 12

BRACKET,SPEEDOMETER CASE

€ 54.00

13

3499643410
ref: 13

CUSHION,METER

€ 3.00

14

3495513E00
ref: 14

CUSHION

€ 3.00

15

0940907332
ref: 15

CLIP

€ 3.00

16

071200616B
ref: 16

BOLT

€ 2.50

17

3412616G00
ref: 17

COVER,SPEEDOMETER KNOB

€ 7.50

18

0915905044
ref: 18
09159-05049

NUT

€ 1.50

19

3651016G00
ref: 19

RESISTOR ASSY

€ 94.50

20

0911606047
ref: 20

BOLT(6X25)

€ 2.00

21

3493814F00
ref: 21

GUIDE,SENSOR LEAD

€ 4.00

22

3499017G10
ref: 22

SENSOR,SPEED

€ 242.50

23

0928644001
ref: 23

SEAL,OIL(44X55X6)

€ 10.00

24

3498327G00
ref: 24

MAGNETO

€ 26.00

25

0940710404
ref: 25

CLAMP(L:100)

€ 4.00

26

015470612B
ref: 26

BOLT

€ 2.00
