REAR SWINGING ARM

SV650S 2008 (K8) USA (E03)

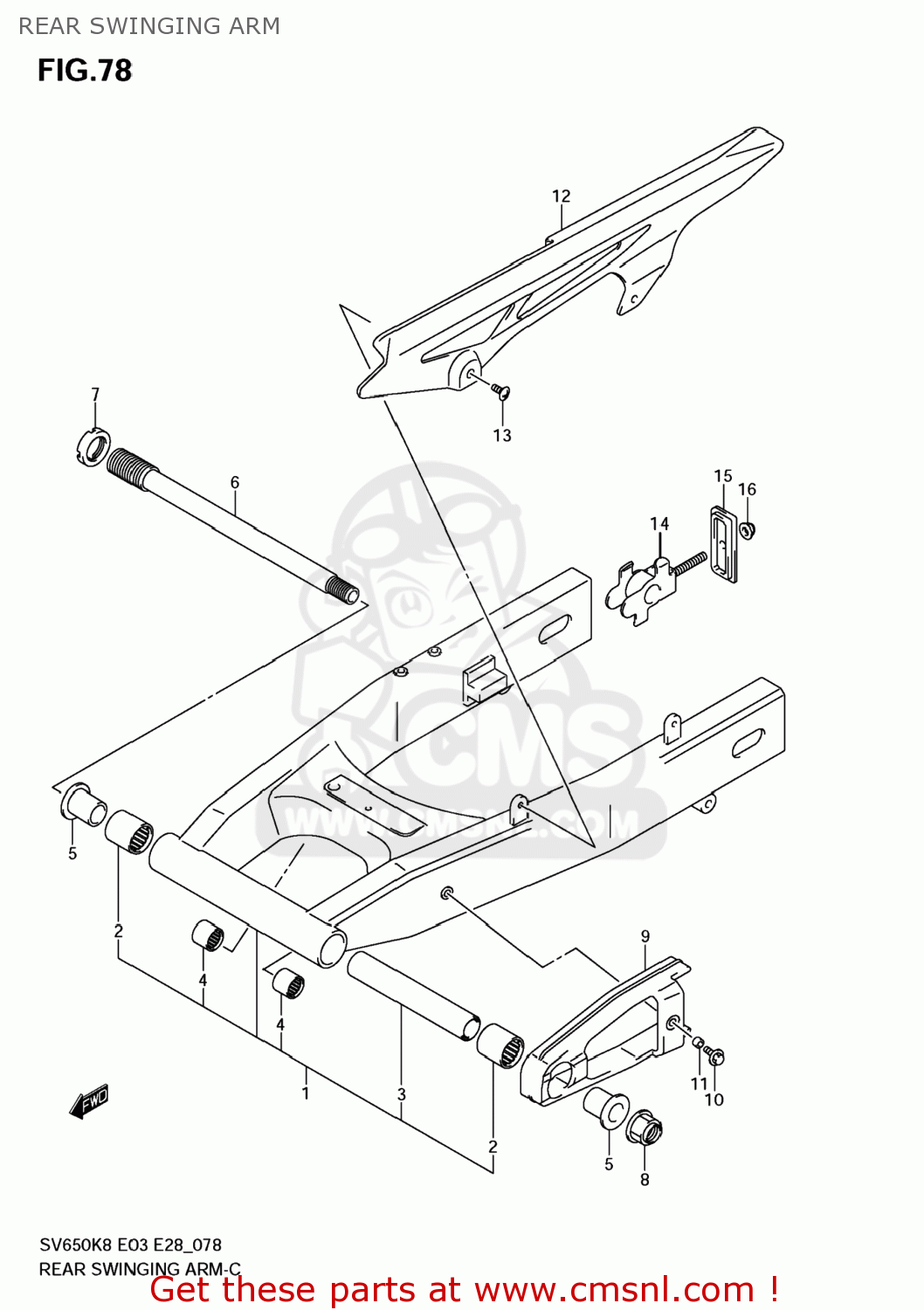

Rear swinging arm diagram SV650S 2008 (K8) USA (E03)

REAR SWINGING ARM SV650S 2008 (K8) USA (E03)
REAR SWINGING ARM SV650S 2008 (K8) USA (E03)
REAR SWINGING ARM SV650S 2008 (K8) USA (E03)
prices are in EUR
ref
part #
description
quantity
1-1
6100017G40YAP
ref: 1-1
SWINGINGARM ASSY,RR
€ 1,084.00
1-2
6100017G50YAP
ref: 1-2
SWINGINGARM ASSY,RR
€ 1,273.50
1-3
6100017G60YAP
ref: 1-3
SWINGINGARM ASSY,RR
€ 951.00
2
0926325059
ref: 2
BEARING(25X33X35)
0926325059
€ 35.00
3
0918020113
ref: 3
SPACER(20.8X27.2X161)
€ 21.00
4
0926317039
ref: 4
BEARING(17X24X20)
0926317039
€ 18.00
5
6125131E00
ref: 5
SPACER,RR SWGARM PIVOT BERRING
6125131E00
€ 16.00
6
6121117G00
ref: 6
SHAFT,RR SWINGINGARM PIVOT
6121117G00
€ 86.50
7
6121419F00
ref: 7
61214-19F10
NUT,REAR SWING ARM PIVOT BOLT
€ 8.50
8
083193118A
ref: 8
NUT
083193118A
€ 17.50
9
6127317G00
ref: 9
BUFFER,CHAIN TOUCH DEFENSE
6127317G00
€ 30.50
10
0911606152
ref: 10
BOLT(6X20)
0911606152
€ 2.00
11
0918006306
ref: 11
SPACER(6.5X9X5)
0918006306
€ 2.00
12
6131019F00
ref: 12
CASE,CHAIN
6131019F00
€ 58.50
13
0913906083
ref: 13
SCREW(6X16)
0913906083
€ 2.50
14
6141017G00
ref: 14
ADJUSTER,CHAIN
6141017G00
€ 31.50
15
6142117G00
ref: 15
GUIDE,CHAIN ADJUSTER
6142117G00
€ 25.00
16
083193108A
ref: 16
NUT
083193108A
€ 2.50
