REAR CYLINDER HEAD

SV650S 2008 (K8) USA (E03)

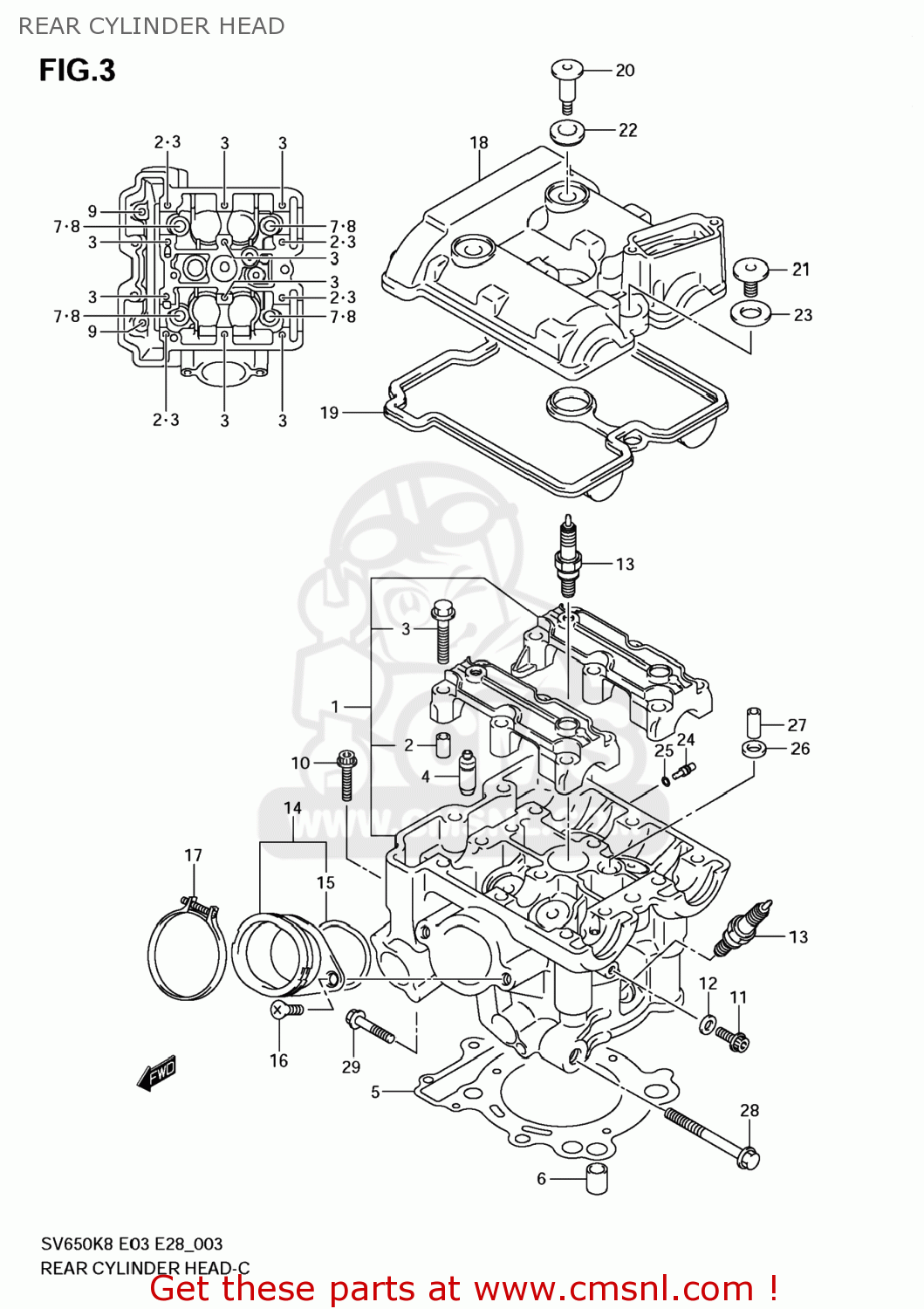

Rear cylinder head diagram SV650S 2008 (K8) USA (E03)

REAR CYLINDER HEAD SV650S 2008 (K8) USA (E03)

REAR CYLINDER HEAD SV650S 2008 (K8) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1110317G20
ref: 1

HEAD ASSY,CYLINDER RR

€ 772.50

2

0920608001
ref: 2

PIN(6.2X8X11)

€ 2.00

3

0910306026
ref: 3

BOLT(6X39)

€ 2.00

4

1111518D72
ref: 4

GUIDE,VALVE

€ 18.50

5

1114120F00
ref: 5

GASKET,CYLINDER HEAD (NAS)

€ 31.50

6

0421113189
ref: 6

PIN

€ 2.50

7

0916010082
ref: 7

WASHER(10.5X19X2)

€ 2.00

8

0910310272
ref: 8

BOLT(10X160)

€ 14.00

9

0910306103
ref: 9

BOLT(6X70)

€ 2.50

10

071200640B
ref: 10

BOLT

€ 3.50

11

071200612B
ref: 11

BOLT

€ 3.50

12

0916806023
ref: 12

GASKET(5.8X13X1.2) (NAS)

€ 2.00

13-1

0948200456
ref: 13-1

PLUG,SPARK(CR8E)

€ 7.00

13-2

0948200457
ref: 13-2

PLUG,SPARK(U24ESR-N)

€ 7.00

13-3

0948200458
ref: 13-3

PLUG,SPARK(NGK CR9E)

€ 8.50

13-4

0948200459
ref: 13-4

PLUG,SPARK(U27ESR-N)

€ 8.50

13-5

0948200516
ref: 13-5

PLUG,SPARK(CR7E)

€ 8.50

13-6

0948200515
ref: 13-6

PLUG,SPARK(U22ESR-N)

€ 8.50

14

1310217G10
ref: 14

PIPE ASSY,INTAKE RR

€ 42.00

15

0928046006
ref: 15

O RING(D:2.4,ID:47X42)

€ 8.00

16

021220616B
ref: 16

SCREW

€ 2.00

17

0940262208
ref: 17

CLAMP

€ 6.00

18

1117217G00
ref: 18

COVER,CYLINDER HEAD RR

€ 165.00

19

1117319F01
ref: 19

GASKET,CYLINDER HEAD COVER (NAS)

€ 26.50

20

0910607009
ref: 20

BOLT(7X17.5)

€ 4.50

21

0910607010
ref: 21

BOLT(7X31)

€ 4.50

22

1119127E00
ref: 22

WASHER,CYL HEAD COVER

€ 4.50

23

1119213E00
ref: 23

CUSHION,HEAD COVER BOLT

€ 4.50

24

0949380005
ref: 24

JET(8)

€ 12.00

25

0928004004
ref: 25

O RING(D:1.2,ID:4)

€ 2.00

26

1118235F00
ref: 26

GASKET,2ND AIR PASSAGE (NAS)

€ 4.00

27

0920608007
ref: 27

PIN(6.2X8X16)

€ 2.50

28

0910310148
ref: 28

BOLT(10X110)

€ 7.50

29

0155010557
ref: 29

BOLT

€ 3.00
