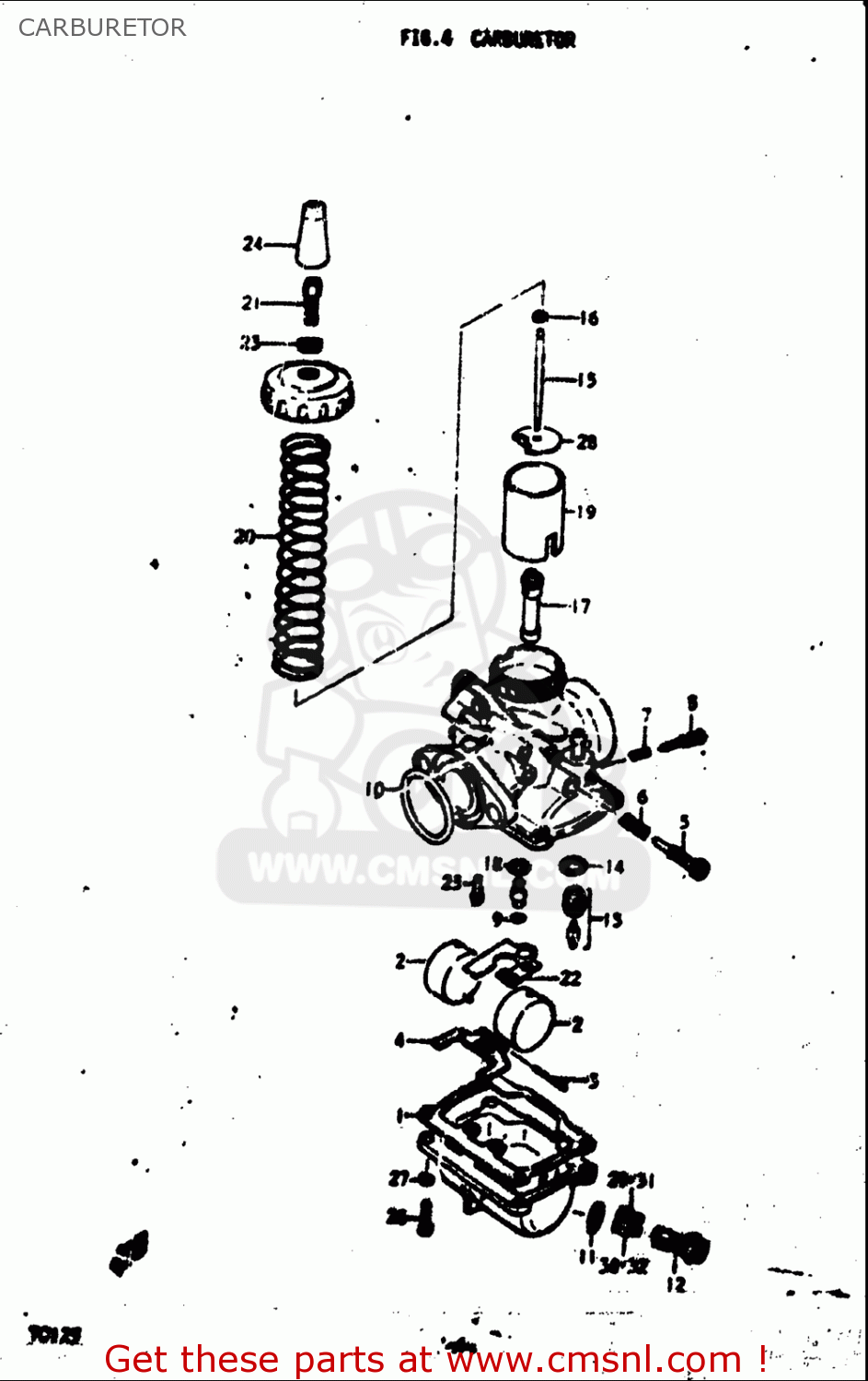

CARBURETOR

ref

part #

description

quantity

1

1325111010
ref: 1

GASKET,FLOAT CHAMBER (NAS)

€ 6.50

2

1325218620
ref: 2

FLOAT

€ 27.50

5-1

1326728110
ref: 5-1

SCREW,THROTTLE STOP

€ 6.00

5-2

1326740230
ref: 5-2

SCREW,THROTTLE STOP

€ 7.50

6

1326803110
ref: 6

SPRING,THROTTLE SCREW

€ 3.50

7

1326801010
ref: 7

SPRING

€ 3.50

8

1326915010
ref: 8

SCREW,PILOT AIR

€ 10.50

9

1329428010
ref: 9

O RING

€ 6.50

10

1329528010
ref: 10

O RING

€ 3.50

13-1

1337028110
ref: 13-1

VALVE ASSY,NEEDLE

€ 33.50

13-2

1337048051
ref: 13-2

VALVE ASSY,NEEDLE

€ 59.50

14

1339258600
ref: 14

GASKET,VALVE SEAT (NAS)

€ 2.00

15-1

1338333010
ref: 15-1

NEEDLE,JET

€ 18.00

15-2

1338333010
ref: 15-2

NEEDLE,JET

€ 18.00

16-1

1339410010
ref: 16-1

CLIP

€ 4.50

16-2

1339403010
ref: 16-2

CLIP,NEEDLE

€ 6.00

18

1338203110
ref: 18

WASHER

€ 2.50

20

1357330900
ref: 20

SPRING,THROTTLE VALVE

€ 6.00

21

1357748110
ref: 21

ADJUSTER,CABLE

€ 8.00

22

1325997010
ref: 22

PLATE

€ 3.50

23

1366116600
ref: 23

NUT

€ 5.00

24

1368116601
ref: 24

CAP

€ 7.00

25

0949225005
ref: 25

JET,PILOT(25)

€ 6.50

26

0211204163
ref: 26

SCREW 4X16

€ 1.00

27

0832101043
ref: 27

WASHER,LOCK

€ 2.00

28

1358128010
ref: 28

SEAT,THROTTLE VALVE SPRING

€ 6.50

29

0949190007
ref: 29

JET,MAIN(90)

€ 10.50

30

0949124014
ref: 30

JET,MAIN(120)

€ 8.00

31-1

0949120017
ref: 31-1

JET,MAIN

€ 10.50

31-2

0949122016
ref: 31-2

JET,MAIN(110)

€ 7.00

31-3

0949125010
ref: 31-3

JET,MAIN(125)

€ 8.50

31-4

0949126011
ref: 31-4

JET,MAIN(130)

€ 11.50

32-1

0949125009
ref: 32-1

JET,MAIN(125)

€ 5.50

32-2

0949126003
ref: 32-2

JET,MAIN(130)

€ 9.00

32-3

0949127015
ref: 32-3

JET,MAIN(135)

€ 10.50

32-4

0949128009
ref: 32-4

JET,MAIN(140)

€ 6.50

all assemblies
