Buy Suzuki TC Parts Online


REAR COMBINATION LAMP

TC125 1972 1973 1974 1975 (J) (K) (L) (M) USA (E03)

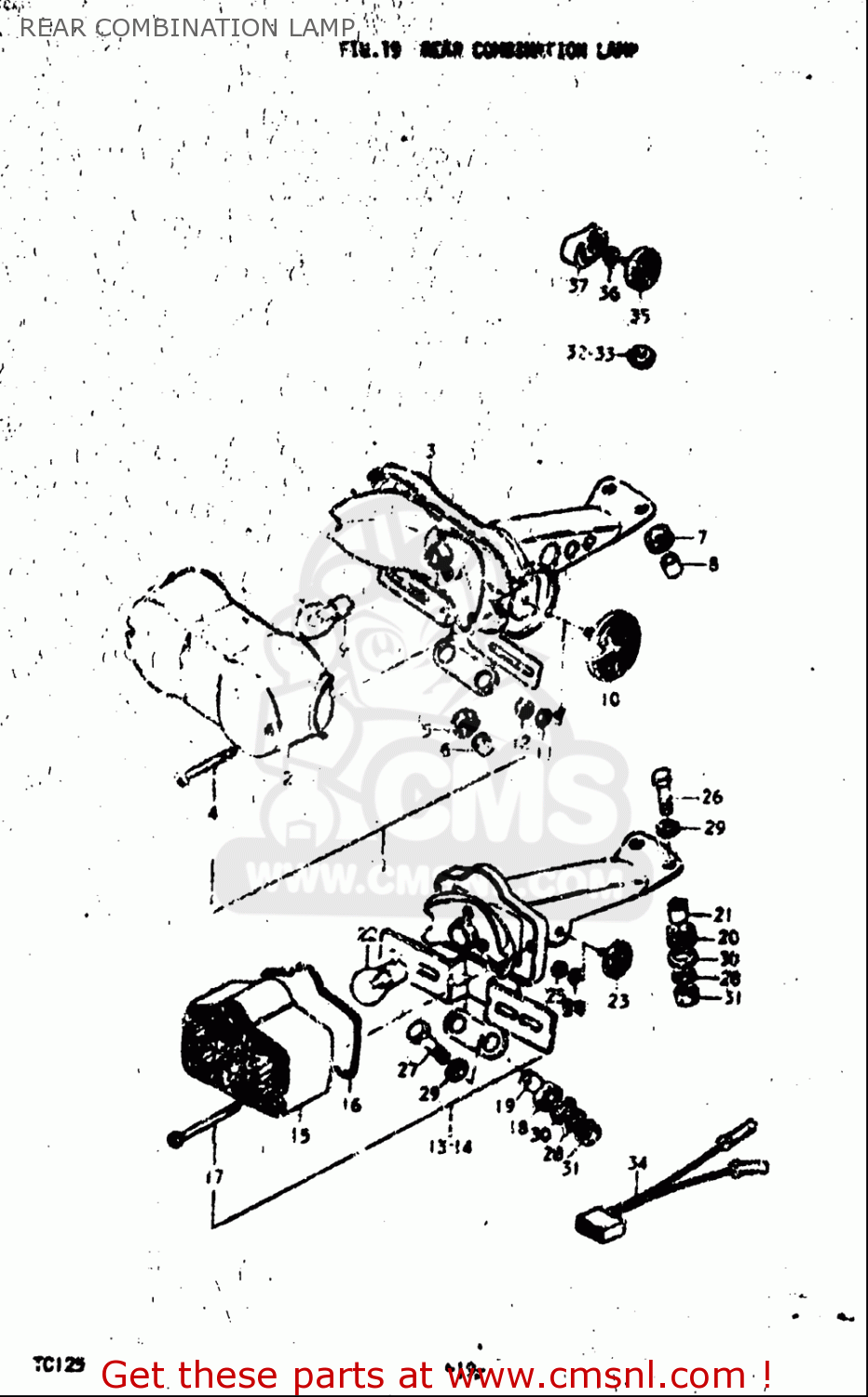

Rear combination lamp diagram TC125 1972 1973 1974 1975 (J) (K) (L) (M) USA (E03)

REAR COMBINATION LAMP TC125 1972 1973 1974 1975 (J) (K) (L) (M) USA (E03)
REAR COMBINATION LAMP TC125 1972 1973 1974 1975 (J) (K) (L) (M) USA (E03)
REAR COMBINATION LAMP TC125 1972 1973 1974 1975 (J) (K) (L) (M) USA (E03)
prices are in EUR
ref
part #
description
quantity
2
3571227671
ref: 2
LENS,RR COMBINATION LAMP
3571227671
€ 97.50
4
0211204508
ref: 4
SCREW
0211204508
€ 1.50
5
3576522210
ref: 5
CUSHION
3576522210
€ 4.00
6
3576637120
ref: 6
SPACER
3576637120
€ 2.50
7
3576515010
ref: 7
CUSHION
3576515010
€ 9.00
9
0947106009
ref: 9
BULB(6V17/5.3W,STANLEY,A4813)
0947106009
€ 6.50
11
0832101057
ref: 11
WASHER,LOCK
0832101057
€ 2.00
12
0831000057
ref: 12
NUT
0831000057
€ 2.50
15
3571223011
ref: 15
LENS
3571223011
€ 50.50
16
3571327630
ref: 16
GASKET (NAS)
3571327630
€ 5.50
18
3576522210
ref: 18
CUSHION
3576522210
€ 4.00
19
3576637120
ref: 19
SPACER
3576637120
€ 2.50
20
3576515010
ref: 20
CUSHION
3576515010
€ 9.00
21
3576637110
ref: 21
SPACER
3576637110
€ 11.50
22
0947106030
ref: 22
BULB(6V32/3CP,STANLEY)
0947106030
€ 12.50
24
0832101057
ref: 24
WASHER,LOCK
0832101057
€ 2.00
25
0831000057
ref: 25
NUT
0831000057
€ 2.50
26
0150006207
ref: 26
BOLT
0150006207
€ 2.00
27
0150006257
ref: 27
BOLT
0150006257
€ 2.00
28
0832101067
ref: 28
WASHER,LOCK
0832101067
€ 2.50
29
0832201067
ref: 29
WASHER
0832201067
€ 2.00
30
0916006066
ref: 30
WASHER(6.5X20X1.6)
0916006066
€ 2.00
31
0831000067
ref: 31
NUT
0831000067
€ 2.50
35
3595049080
ref: 35
REFLEX REFLECTOR,RR
3595049080
€ 17.50
36-2
0918006258
ref: 36-2
SPACER(6.5X9X6.7)
0918006258
€ 3.00
37
3599529000
ref: 37
SPACER
3599529000
€ 14.00
