ELECTRICAL

TC125 1972 1973 1974 1975 (J) (K) (L) (M) USA (E03)

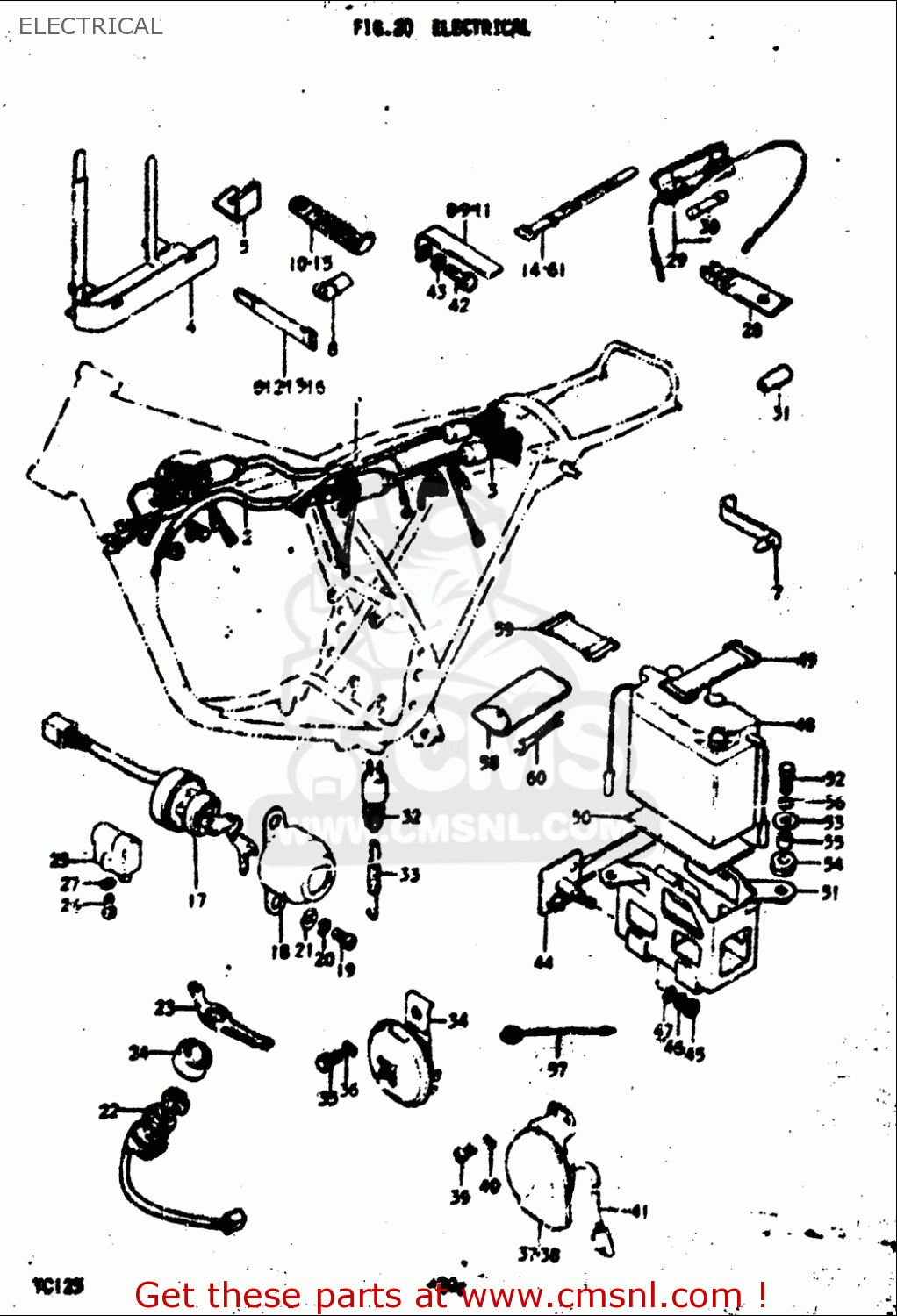

Electrical diagram TC125 1972 1973 1974 1975 (J) (K) (L) (M) USA (E03)

ELECTRICAL TC125 1972 1973 1974 1975 (J) (K) (L) (M) USA (E03)
ELECTRICAL TC125 1972 1973 1974 1975 (J) (K) (L) (M) USA (E03)
ELECTRICAL TC125 1972 1973 1974 1975 (J) (K) (L) (M) USA (E03)
prices are in EUR
ref
part #
description
quantity
1-2
3861005X50
ref: 1-2
RELAY ASSY,TURNSIGNAL
3861005X50
€ 46.50
9
0940300069
ref: 9
CLAMP
0940300069
€ 8.50
10-1
0940406434
ref: 10-1
CLAMP(L:80 T:1.0)
0940406434
€ 3.00
10-2
0940406434
ref: 10-2
CLAMP(L:80 T:1.0)
0940406434
€ 3.00
12
0940709301
ref: 12
CLAMP
€ 6.00
13-2
0940714301
ref: 13-2
CLAMP
€ 6.00
14
0940712402
ref: 14
CLAMP(L:120)
0940712402
€ 3.00
15
0940406432
ref: 15
CLAMP(L:65)
0940406432
€ 2.50
16
0940725301
ref: 16
CLAMP(L:250)
0940725301
€ 4.50
19
0211206127
ref: 19
SCREW
0211206127
€ 2.00
20
0832101067
ref: 20
WASHER,LOCK
0832101067
€ 2.50
21
0832201067
ref: 21
WASHER
0832201067
€ 2.00
22-2
3711025319
ref: 22-2
SWITCH ASSY,IGNITION
3711025319
€ 60.00
25
5191025311
ref: 25
LOCK ASSY,STEERING
5191025311
€ 22.50
26
0211205127
ref: 26
SCREW
0211205127
€ 2.50
27
0832101057
ref: 27
WASHER,LOCK
0832101057
€ 2.00
29
3674015011
ref: 29
CASE ASSY,FUSE
3674015011
€ 11.00
30
0948115001
ref: 30
FUSE(15A)
0948115001
€ 3.00
32
3761053011
ref: 32
SWITCH ASSY,BRAKE LAMP
3761053011
€ 34.50
33-1
0944306012
ref: 33-1
SPRING
0944306012
€ 3.00
33-2
0944306012
ref: 33-2
SPRING
0944306012
€ 3.00
35
0150008127
ref: 35
BOLT
0150008127
€ 2.50
36
0832101087
ref: 36
WASHER,LOCK
0832101087
€ 2.00
39
0211206127
ref: 39
SCREW
0211206127
€ 2.00
40
0832101067
ref: 40
WASHER,LOCK
0832101067
€ 2.50
41
3687025030
ref: 41
WIRE
3687025030
€ 10.50
42
0150006127
ref: 42
BOLT
0150006127
€ 2.00
43
0832101067
ref: 43
WASHER,LOCK
0832101067
€ 2.50
45
0831000057
ref: 45
NUT
0831000057
€ 2.50
46
0832101057
ref: 46
WASHER,LOCK
0832101057
€ 2.00
47
0832201057
ref: 47
WASHER
0832201057
€ 2.50
48
3361003610
ref: 48
BATTERY(6N4B-2A,6V4.2AH)
3361003610
€ 49.50
49
0946200033
ref: 49
BAND
0946200033
€ 6.50
52
0150006167
ref: 52
BOLT
0150006167
€ 3.00
53
0916006077
ref: 53
WASHER(6.5X20X1.2)
0916006077
€ 2.00
54
0932008021
ref: 54
CUSHION
0932008021
€ 4.00
55
09180C06259J000
ref: 55
SPACER,6.5X9X7
€ 0.00
56
0832101067
ref: 56
WASHER,LOCK
0832101067
€ 2.50
57
3686227690
ref: 57
LEAD WIRE
3686227690
€ 9.00
58
0980021028
ref: 58
TOOL ASSY
0980021028
€ 43.50
59
0946200017
ref: 59
BAND
0946200017
€ 13.50
