FRONT WHEEL

TC125 1972 1973 1974 1975 (J) (K) (L) (M) USA (E03)

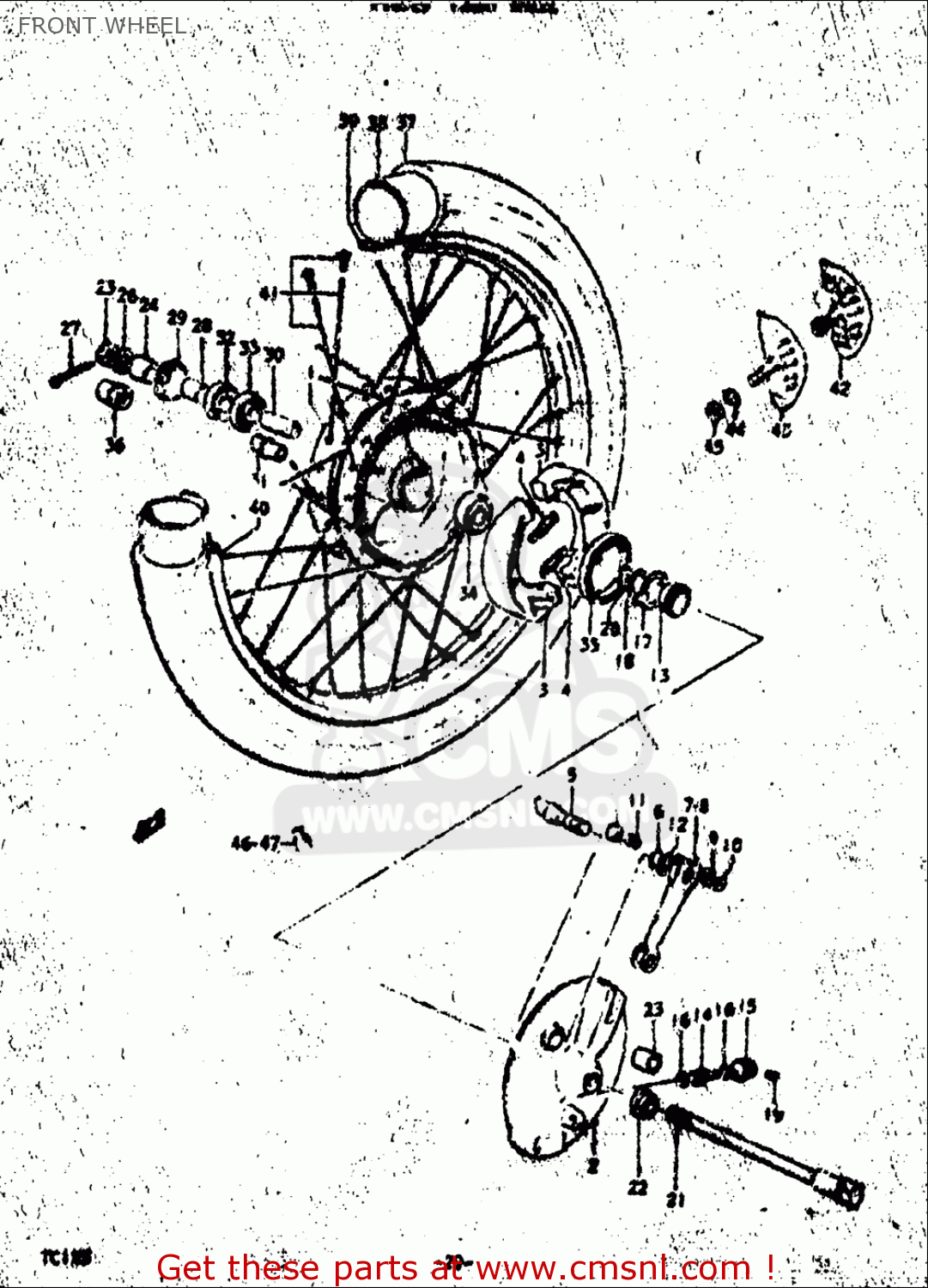

Front wheel diagram TC125 1972 1973 1974 1975 (J) (K) (L) (M) USA (E03)

FRONT WHEEL TC125 1972 1973 1974 1975 (J) (K) (L) (M) USA (E03)
FRONT WHEEL TC125 1972 1973 1974 1975 (J) (K) (L) (M) USA (E03)
FRONT WHEEL TC125 1972 1973 1974 1975 (J) (K) (L) (M) USA (E03)
prices are in EUR
ref
part #
description
quantity
1-3
5411007003
ref: 1-3
HUB,FR WHEEL
€ 137.50
3-1
5440035860
ref: 3-1
SHOE & SPRING SET,BRAKE (NAS)
5440035860
€ 39.00
4
0944307025
ref: 4
SPRING(L:35.8)
0944307025
€ 2.50
5-1
5444104001
ref: 5-1
CAM,BRAKE
€ 8.50
6
0928012001
ref: 6
O RING(D:2.5,ID:11.4)
0928012001
€ 2.50
9
0832201067
ref: 9
WASHER
0832201067
€ 2.00
10
0831000067
ref: 10
NUT
0831000067
€ 2.50
11
0910006150
ref: 11
BOLT(6X31)
0910006150
€ 1.50
12
0916012011
ref: 12
WASHER(12.5X20X1)
0916012011
€ 1.50
16
0916005001A05
ref: 16
WASHER(5.1X9X0.4)
0916005001A05
€ 2.00
17
5466107000
ref: 17
DRIVER,SPEEDOMETER GEAR
5466107000
€ 3.00
18
0916018002
ref: 18
WASHER(18.5X24X1)
0916018002
€ 2.00
19
0913403101
ref: 19
SCREW
0913403101
€ 1.50
20
083313110A
ref: 20
CIRCLIP
083313110A
€ 2.00
23
0918012062
ref: 23
SPACER (12X20X41)
0918012062
€ 13.00
24
0918012061
ref: 24
SPACER (12X20X44)
0918012061
€ 4.50
25
0831431128
ref: 25
NUT 12MM
0831431128
€ 2.00
26
0832201127
ref: 26
WASHER
0832201127
€ 2.00
27
041113030A
ref: 27
PIN
041113030A
€ 1.50
28
0918012040
ref: 28
SPACER(12X18X16.4)
0918012040
€ 4.50
30
0918012144
ref: 30
SPACER(12.5X19X52)
0918012144
€ 4.50
32-1
0928518002
ref: 32-1
SEAL,OIL(18X32X7)
0928518002
€ 4.50
32-2
0928418001
ref: 32-2
OIL SEAL(17X38X5)
0928418001
€ 12.50
33-1
0811362017
ref: 33-1
BEARING
0811362017
€ 11.00
33-2
0811363010
ref: 33-2
BEARING
0811363010
€ 9.50
34-1
0814362017
ref: 34-1
BEARING
0814362017
€ 11.50
34-2
0814363017
ref: 34-2
BEARING
0814363017
€ 14.50
35-1
0928343004
ref: 35-1
SEAL,OIL(43X58X7)
0928343004
€ 10.00
39-1
5526115010
ref: 39-1
PROTECTOR,WHL INR TUBE
5526115010
€ 2.50
40-3
5531117022
ref: 40-3
RIM,FRONT WHEEL (1.40X19)
5531117022
€ 76.50
42
6527028600
ref: 42
STOPPER,BEAD
6527028600
€ 26.50
44
0832201087
ref: 44
WASHER
0832201087
€ 2.00
45
0831000087
ref: 45
NUT
0831000087
€ 2.00
46
5541211000
ref: 46
BALANCER,WHEEL (30G)
5541211000
€ 8.00
47
5541130000
ref: 47
BALANCER,WHEEL (50G)
€ 4.50
