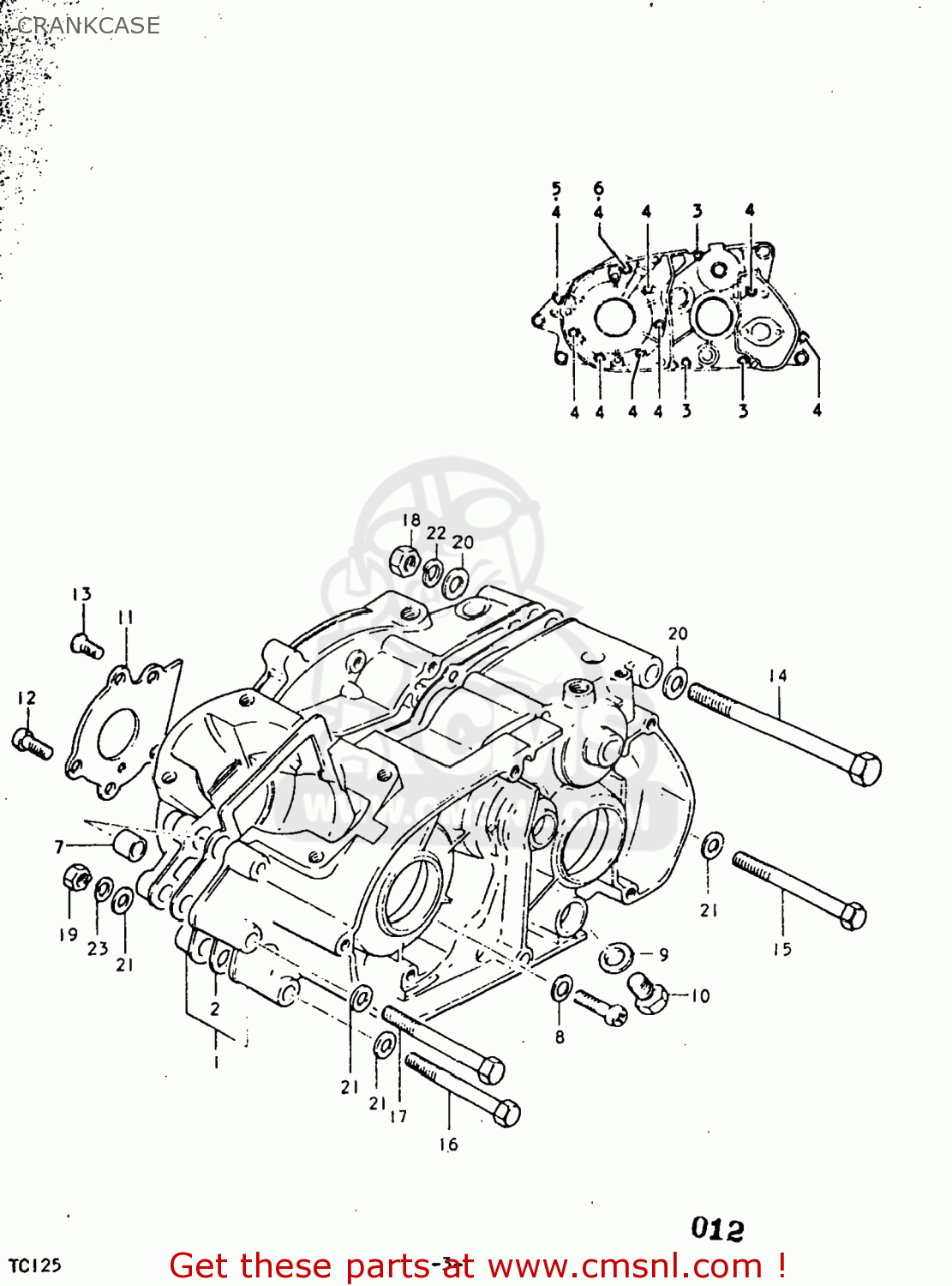

CRANKCASE

ref

part #

description

quantity

1-1

1130028830
ref: 1-1

CRANKCASE SET

€ 114.00

1-2

1130028831
ref: 1-2

CRANKCASE SET

€ 114.00

1-3

1130028870
ref: 1-3
11300-28872

CRANKCASE SET

€ 0.00

1-4

1130028872
ref: 1-4

CRANKCASE SET

€ 0.00

2

1148128000
ref: 2
11481-28001

GASKET,CRANKCASE (MCA)

€ 16.00

3

0211206657
ref: 3

SCREW

€ 2.00

4

0211206458
ref: 4
02112-06457

SCREW (6X45)

€ 2.00

4

0211206458
ref: 4
02112-06457

SCREW (6X45)

€ 2.00

5

0211206808
ref: 5
02112-06807

SCREW 6X80

€ 3.00

6

0211206608
ref: 6
02112-06607

SCREW 6X60

€ 2.50

7

0920613001
ref: 7
04211-13189

PIN

€ 2.50

8

0832211068
ref: 8
08322-0106B

WASHER 6MM

€ 2.00

9-1

0916814004
ref: 9-1

GASKET(14X19.2X2) (NAS)

€ 2.50

9-2

0916810002
ref: 9-2

GASKET(10X14X3.6) (NAS)

€ 2.00

10-1

0924714001
ref: 10-1
09247-14002

PLUG

€ 5.00

10-2

0924710001
ref: 10-2

PLUG

€ 3.00

11

1252128002
ref: 11

PLATE,OIL RESERVOIR

€ 4.00

12

0212206128
ref: 12
02122-06127

SCREW

€ 3.00

13

0211206168
ref: 13
02112-06167

SCREW

€ 2.50

14

0910010060
ref: 14
09116-10032

BOLT 10X120

€ 3.50

15

0112208808
ref: 15
01500-0880B

HEXAGON BOLT 8X80

€ 3.50

16

0112208758
ref: 16
01500-0875B

BOLT,8X75

€ 3.00

17

0112208708
ref: 17
01500-0870B

BOLT

€ 2.50

18

0831212108
ref: 18
08310-00107

NUT

€ 2.50

19

0831211088
ref: 19
08310-00087

NUT

€ 2.00

20

0832211108
ref: 20
08322-01107

WASHER

€ 2.50

21

0832211088
ref: 21
08322-01087

WASHER

€ 2.00

22

0832121108
ref: 22
08321-01107

LOCK WASHER

€ 2.00

23

0832121088
ref: 23
08321-01087

LOCK WASHER

€ 2.00
