REAR COMBINATION LAMP (TC1258)
TC125 1975 (M) USA (E03)

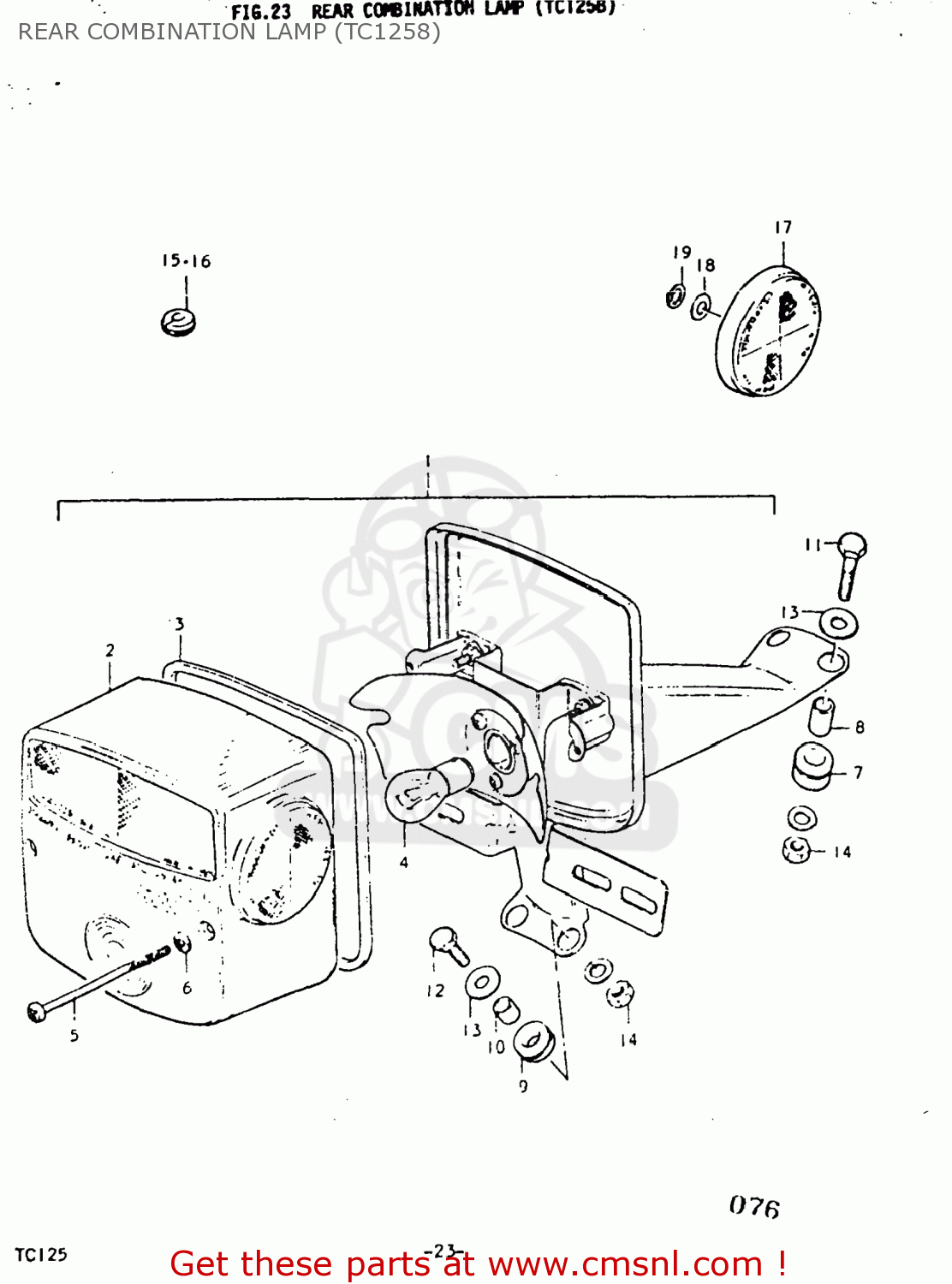

Rear combination lamp (tc1258) diagram TC125 1975 (M) USA (E03)
REAR COMBINATION LAMP (TC1258) TC125 1975 (M) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3571025650
ref: 1
35710-25651-999
LAMP ASSEMBLY,REAR COMBINATION
€ 109.50
2
3571230510
ref: 2
35712-30512
LENS,REAR COMBINATION LAMP
€ 65.50
3
3571330510
ref: 3
GASKET (NAS)
€ 6.00
4
0947106030
ref: 4
BULB(6V32/3CP,STANLEY)
€ 12.50
5
0211104558
ref: 5
02112-04558
SCREW
€ 1.50
6
3562743010
ref: 6
GASKET (NAS)
€ 2.00
7
3576515010
ref: 7
CUSHION
€ 9.00
8
3576615010
ref: 8
35766-37110
SPACER,REAR COMBINATION LAMP
€ 11.50
9
3576522210
ref: 9
CUSHION
€ 4.00
10
3576622210
ref: 10
35766-37120
SPACER,REAR COMBINATION LAMP
€ 2.50
11
0111206168
ref: 11
01500-06167
BOLT
€ 3.00
12
0111206208
ref: 12
01500-06207
BOLT
€ 2.00
13
0916006027
ref: 13
09160-06077
WASHER (6.5X20X1.2)
€ 2.00
14
0831111068
ref: 14
08310-00067
NUT
€ 2.50
15
0930807005
ref: 15
GROMMET
€ 1.50
16
0930807002
ref: 16
GROMMET
€ 2.50
17
3595045010
ref: 17
REFLEX REFLECTOR,FR
€ 17.00
18
0832221058
ref: 18
08322-01057
WASHER
€ 2.50
19
0832121058
ref: 19
08321-0105A
LOCK WASHER
€ 2.00
