REAR FENDER (TC125A
TC125 1975 (M) USA (E03)

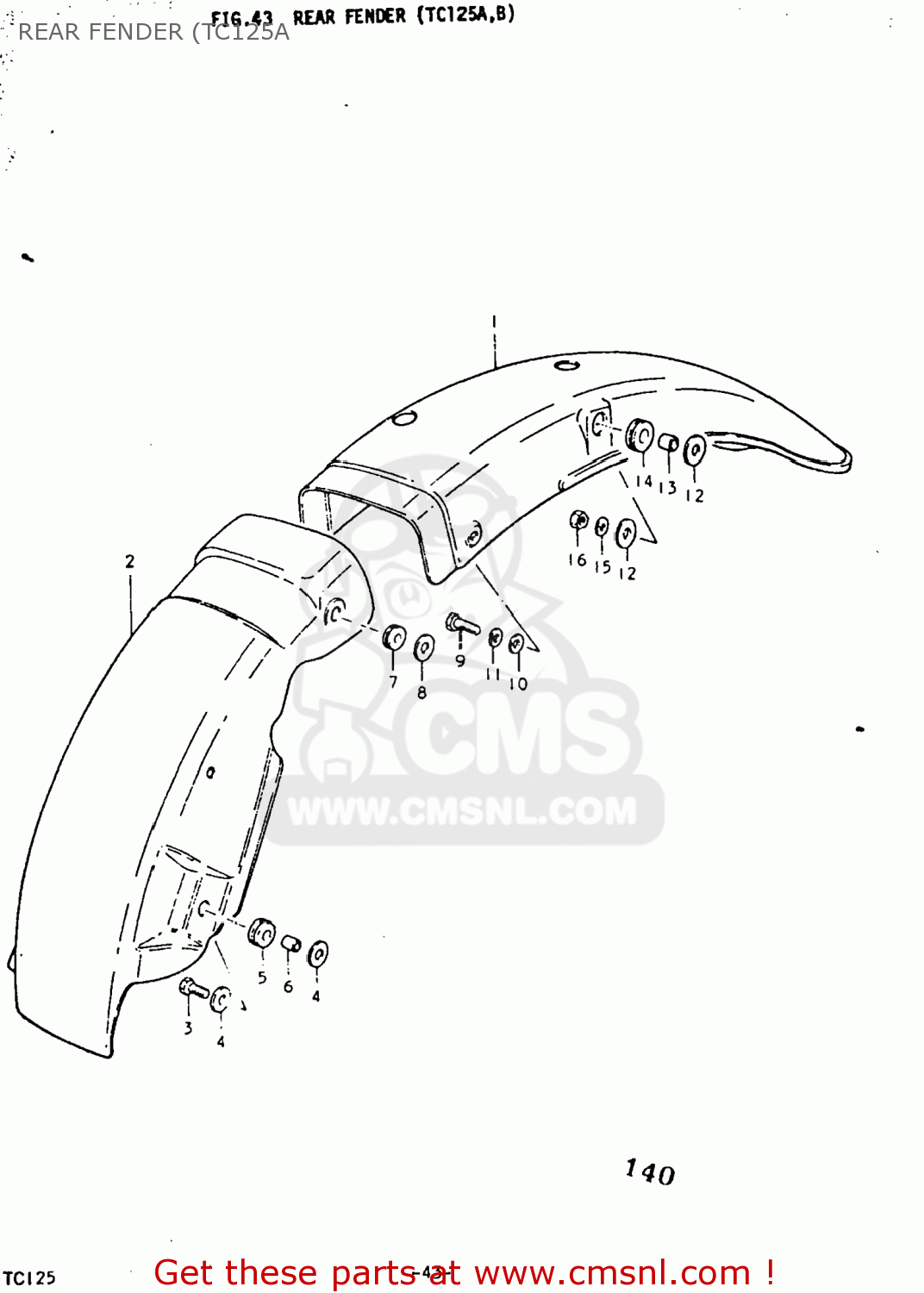

Rear fender (tc125a diagram TC125 1975 (M) USA (E03)
REAR FENDER (TC125A TC125 1975 (M) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
6311028401737
ref: 1-1
FENDER,REAR
€ 77.50
1-2
6311028402737
ref: 1-2
63110-28402-13L
FENDER,REAR
€ 77.50
2-1
6311228001
ref: 2-1
63112-28002
FENDER,REAR
€ 39.50
2-2
6311228002
ref: 2-2
FENDER,REAR
€ 39.50
3
0111206168
ref: 3
01500-06167
BOLT
€ 3.00
4
0916006027
ref: 4
09160-06077
WASHER (6.5X20X1.2)
€ 2.00
5
0932008007
ref: 5
09320-08021
CUSHION
€ 4.00
6
0918006038
ref: 6
SPACER(6.1X9X7.5)
€ 2.00
7
0932005006
ref: 7
09320-06504
CUSHION
€ 4.00
8
0916006007
ref: 8
09160-06084
WASHER
€ 2.00
9
0111206128
ref: 9
01500-06127
BOLT
€ 2.00
10
0832221068
ref: 10
08322-01067
WASHER
€ 2.00
11
0832121068
ref: 11
08321-01067
LOCK WASHER
€ 2.50
12
0916010041
ref: 12
WASHER(10.3X25X1.5
€ 4.00
13
0918010026
ref: 13
SPACER
€ 6.00
14
0932012011
ref: 14
CUSHION
€ 3.00
15
0832121108
ref: 15
08321-01107
LOCK WASHER
€ 2.00
16
0831232108
ref: 16
08310-00107
NUT
€ 2.50
