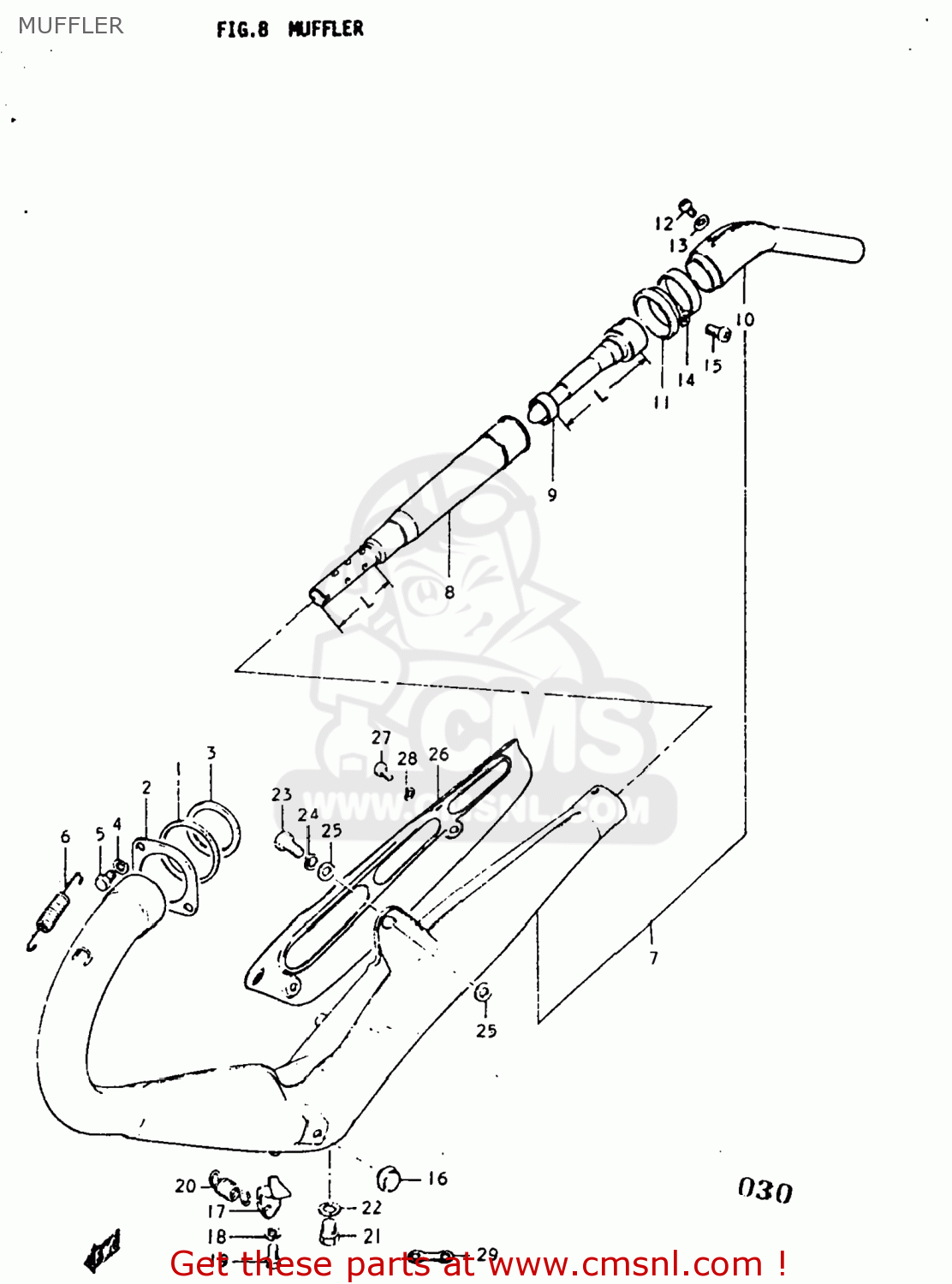

MUFFLER

ref

part #

description

quantity

1

1418128080
ref: 1

GASKET,EXHAUST PIPE (NAS)

€ 10.50

2

1418228000
ref: 2

CLAMP,EXHAUST PIPE

€ 11.50

3

1418428010
ref: 3
14184-28011

CUSHION,EXHAUST PIPE

€ 4.50

4

0832121068
ref: 4
08321-01067

LOCK WASHER

€ 2.50

5

0111206258
ref: 5
01500-06257

BOLT

€ 2.00

6

0944311002
ref: 6

SPRING

€ 4.50

7-1

1430128601
ref: 7-1

MUFFLER ASSEMBLY

€ 102.00

7-2

1430128602
ref: 7-2
14301-28602-H01

MUFFLER ASSEMBLY

€ 102.00

8-1

1481028601
ref: 8-1

ARRESTER,SPARK

€ 12.50

8-2

1481028602
ref: 8-2

ARRESTER,SPARK

€ 32.50

9-1

1485028601
ref: 9-1

TUBE,MUFFLER CLEAN OUT

€ 20.00

9-2

1485028640
ref: 9-2

TUBE,MUFFLER CLEAN OUT

€ 30.00

10

1463028001
ref: 10

EXHAUST EXTENSION

€ 29.50

11

1463428000
ref: 11

GASKET,MUFFLER TAIL PIPE (NAS)

€ 9.50

12

0211105127
ref: 12
02112-05127

Screw

€ 2.50

13

0916806006
ref: 13

GASKET

€ 2.00

14

0940252306
ref: 14

CLAMP

€ 6.00

15

0211104208
ref: 15
02112-0420A

SCREW

€ 1.00

16

0932110002
ref: 16

CUSHION(11.5X22X20)

€ 2.00

17

1447628000
ref: 17

BRACKET, MUFFLER STOPPER

€ 13.00

18

0832121068
ref: 18
08321-01067

LOCK WASHER

€ 2.50

19

0111206108
ref: 19
01500-06107

BOLT

€ 2.00

20

0944314002
ref: 20

SPRING

€ 2.50

21

0910010004
ref: 21

BOLT 10X9

€ 1.00

22

0916810002
ref: 22

GASKET(10X14X3.6) (NAS)

€ 2.00

23

0112208208
ref: 23
01500-08207

BOLT

€ 3.00

24

0832121088
ref: 24
08321-01087

LOCK WASHER

€ 2.00

25

0832221088
ref: 25
08322-01087

WASHER

€ 2.00

26-1

1478128600
ref: 26-1
14781-28610

COVER,MUFFLER

€ 25.00

26-2

1478128610
ref: 26-2

COVER,MUFFLER

€ 25.00

27

0211106087
ref: 27
02112-06087

SCREW

€ 2.00

28

0832121068
ref: 28
08321-01067

LOCK WASHER

€ 2.50

29

0940407704
ref: 29

CLAMP

€ 6.50

all assemblies
