TC185 1975 (M) USA (E03)

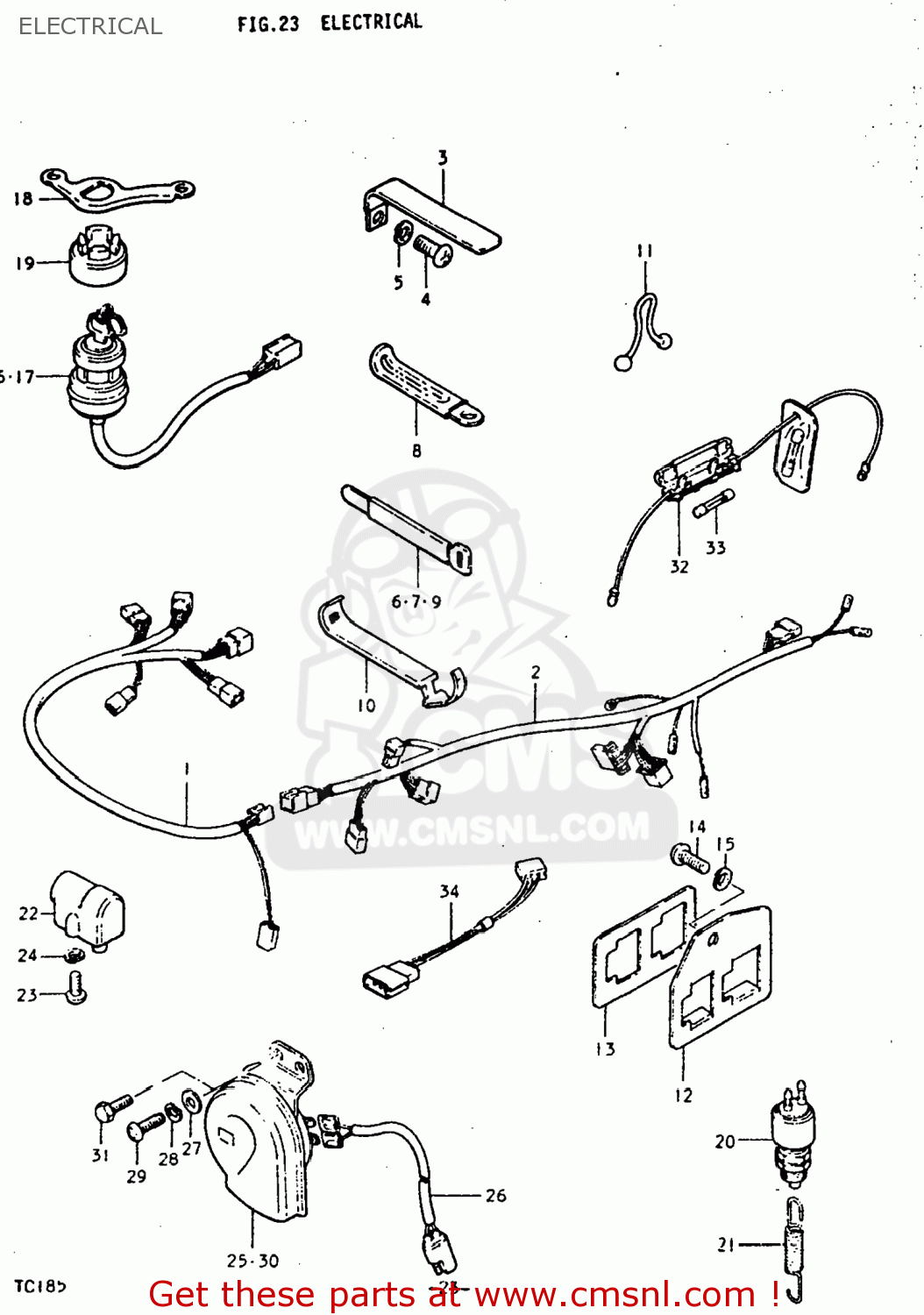

Electrical diagram TC185 1975 (M) USA (E03)
ELECTRICAL TC185 1975 (M) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
3661036100
ref: 1-1
HARNESS,WIRING
€ 91.00
1-2
3661036700
ref: 1-2
HARNESS,WIRING
€ 91.00
1-2
3661036700
ref: 1-2
HARNESS,WIRING
€ 91.00
1-3
3661036102
ref: 1-3
HARNESS,WIRING
€ 91.00
2-1
3662029100
ref: 2-1
HARNESS,WIRING NO.2
€ 30.50
2-1
3662029100
ref: 2-1
HARNESS,WIRING NO.2
€ 30.50
2-2
3662029102
ref: 2-2
HARNESS,WIRING NO.2
€ 30.50
3
0940309307
ref: 3
CLAMP
€ 2.50
4
0211206128
ref: 4
02112-06127
SCREW 6X12
€ 2.00
5
0832121068
ref: 5
08321-01067
LOCK WASHER
€ 2.50
6
0940725301
ref: 6
CLAMP(L:250)
€ 4.50
7
0940711302
ref: 7
09407-18301
CLAMP
€ 6.00
8
0940406402
ref: 8
09404-06432
CLAMP
€ 2.50
9
0940406402
ref: 9
09404-06432
CLAMP
€ 2.50
9
0940718301
ref: 9
CLAMP
€ 6.00
10
3388122200
ref: 10
BAND
€ 1.50
11
0940800011
ref: 11
09408-00020
CLAMP
€ 2.00
12
3668229100
ref: 12
NO PRODUCT DESCRIPTION AVAILABLE
€ 16.50
13
3668729100
ref: 13
HOLDER,COUPLER
€ 0.00
14
0211206128
ref: 14
02112-06127
SCREW 6X12
€ 2.00
15
0832121068
ref: 15
08321-01067
LOCK WASHER
€ 2.50
16-1
3711031013
ref: 16-1
37110-31017
SWITCH ASSEMBLY,IGNITION
€ 90.00
16-2
3711031014
ref: 16-2
SWITCH ASSEMBLY,IGNITION
€ 90.00
17
3711031016
ref: 17
37110-31017
SWITCH ASSEMBLY,IGNITION
€ 90.00
18
3711536000
ref: 18
37115-36001
BRACKET,IGNITION SWITCH
€ 17.00
19-1
3712836000
ref: 19-1
IGN SWITCH COVE
€ 4.50
19-2
3712836001
ref: 19-2
IGN SWITCH COVE
€ 4.50
20
3761053011
ref: 20
SWITCH ASSY,BRAKE LAMP
€ 34.50
21
0944306005
ref: 21
SPRING
€ 6.00
22
5000025837
ref: 22
51910-25311
LOCK ASSY,STEERING
€ 22.50
23
0211105127
ref: 23
02112-05127
Screw
€ 2.50
24
0832121058
ref: 24
08321-0105A
LOCK WASHER
€ 2.00
25
3850029131
ref: 25
HORN ASSEMBLY
€ 38.50
26-1
3687031030
ref: 26-1
WIRE,HORN LEAD
€ 6.50
26-2
3681029100
ref: 26-2
NO PRODUCT DESCRIPTION AVAILABLE
€ 2.00
27
0832221068
ref: 27
08322-01067
WASHER
€ 2.00
28
0832121068
ref: 28
08321-01067
LOCK WASHER
€ 2.50
29
0211206128
ref: 29
02112-06127
SCREW 6X12
€ 2.00
30
3850029132
ref: 30
38500-11031
HORN ASSEMBLY
€ 38.50
31
0111206108
ref: 31
01500-06107
BOLT
€ 2.00
32
3674015010
ref: 32
36740-15011
BOX ASSEMBLY,FUSE
€ 11.00
33
0948115001
ref: 33
FUSE(15A)
€ 3.00
34
3685136700
ref: 34
WIRE
€ 4.00
