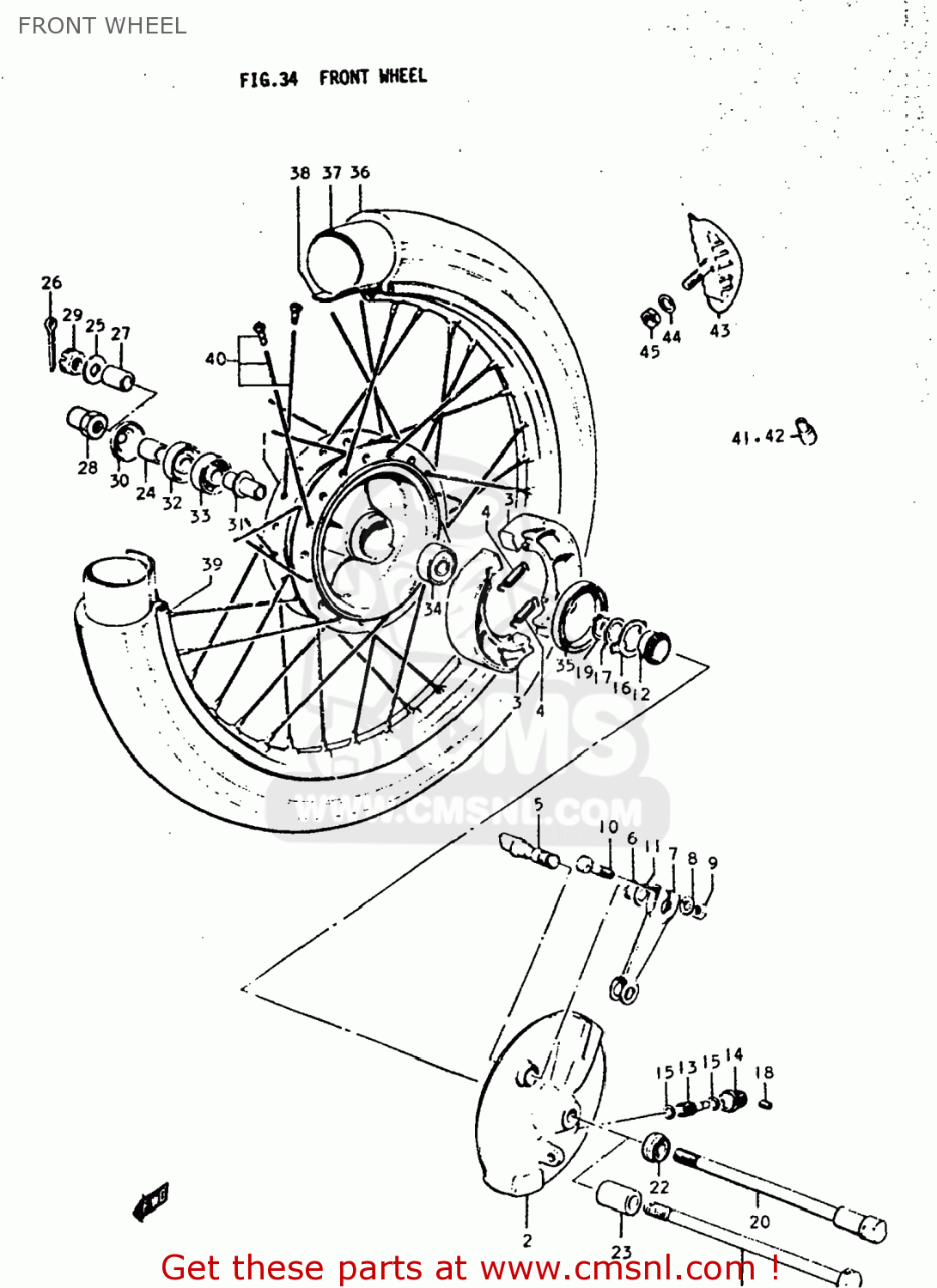

FRONT WHEEL

ref

part #

description

quantity

1-1

5411007001
ref: 1-1
54110-07003

HUB,FRONT

€ 137.50

1-2

5411016501
ref: 1-2
54110-16502

HUB,FRONT

€ 93.50

2-1

5421028400
ref: 2-1

PANEL,FRONT HUB

€ 69.00

2-2

5421028620
ref: 2-2

PANEL,FRONT HUB

€ 45.50

3

5441007002
ref: 3
54401-07810

SHOE,BRAKE

€ 35.00

4

0944307001
ref: 4
09443-07025

SPRING(L:34)

€ 2.50

5-1

5444107001
ref: 5-1

CAM,FRONT BRAKE

€ 19.50

5-2

5444101002
ref: 5-2

CAM,FR BRAKE

€ 19.50

6

0928012001
ref: 6

O RING(D:2.5,ID:11.4)

€ 2.50

7

5445128400
ref: 7

LEVER,FRONT BRAKE CAM

€ 22.00

8

0832221068
ref: 8
08322-01067

WASHER

€ 2.00

9

0831111068
ref: 9
08310-00067

NUT

€ 2.50

10

0910006050
ref: 10
09100-06150

BOLT

€ 1.50

11

0916012011
ref: 11

WASHER(12.5X20X1)

€ 1.50

12

5461128001
ref: 12
54611-28002

GEAR,SPEEDOMETER

€ 17.50

13

5462128000
ref: 13
54621-28001

PINION,SPEEDOMETER

€ 13.00

14

5463201001
ref: 14

BUSH,METER GEAR OUTER

€ 9.00

15

0916005001
ref: 15
09160-05001-A05

WASHER (5.1X9X0.4)

€ 2.00

16

5466107000
ref: 16

DRIVER,SPEEDOMETER GEAR

€ 3.00

17

0916018002
ref: 17

WASHER(18.5X24X1)

€ 2.00

18

0913403101
ref: 18
09134-03101-A05

SCREW

€ 1.50

19

0833111189
ref: 19

CIRCLIP

€ 2.00

20

5471128401
ref: 20

AXLE,FRONT

€ 24.00

21

5471128303
ref: 21

AXLE,FRONT

€ 22.50

22

5475125500
ref: 22

SPACER,FRONT AXLE,LEFT

€ 3.00

23

0918012062
ref: 23

SPACER (12X20X41)

€ 13.00

24

0918012040
ref: 24

SPACER(12X18X16.4)

€ 4.50

25

0832221128
ref: 25
08322-01127

WASHER

€ 2.00

26

0411130308
ref: 26
04111-3030A

COTTER PIN

€ 1.50

27

0918012061
ref: 27

SPACER (12X20X44)

€ 4.50

28

5472136000
ref: 28

NO PRODUCT DESCRIPTION AVAILABLE

€ 7.00

29

0831431128
ref: 29
08314-3112A

NUT 12MM

€ 2.00

30

5489228400
ref: 30

DUST SEAL,FRONT HUB DRUM

€ 3.50

31

5473007000
ref: 31

SPACER,FRONT HUB BEARING

€ 9.00

32

0928418001
ref: 32

OIL SEAL(17X38X5)

€ 12.50

33

0811363010
ref: 33

BEARING

€ 9.50

34

0814363010
ref: 34
08143-63017

BEARING, RH

€ 14.50

35

0928548001
ref: 35

SEAL,OIL(48X62X7)

€ 5.50

36

5510029600
ref: 36

TIRE,FRONT

€ 47.00

37

5520029010
ref: 37

TUBE 2.75-19 070-483MM

€ 0.00

38

5526129010
ref: 38
55261-15010

PROTECTOR,WHEEL,INNER

€ 2.50

39-1

5531129601
ref: 39-1

RIM,FRONT WHEEL

€ 18.50

39-2

5531117022
ref: 39-2

RIM,FRONT WHEEL (1.40X19)

€ 76.50

40

5530028840
ref: 40

SPOKE SET,FRONT

€ 29.00

41

5541130000
ref: 41

BALANCER,WHEEL (50G)

€ 4.50

42

5541211000
ref: 42
55413-41F00

BALANCER,WHEEL (30G)

€ 8.00

43

6527028610
ref: 43

STOPPER,BEAD

€ 0.00

44

0832211088
ref: 44
08322-01087

WASHER

€ 2.00

45

0831211088
ref: 45
08310-00087

NUT

€ 2.00
