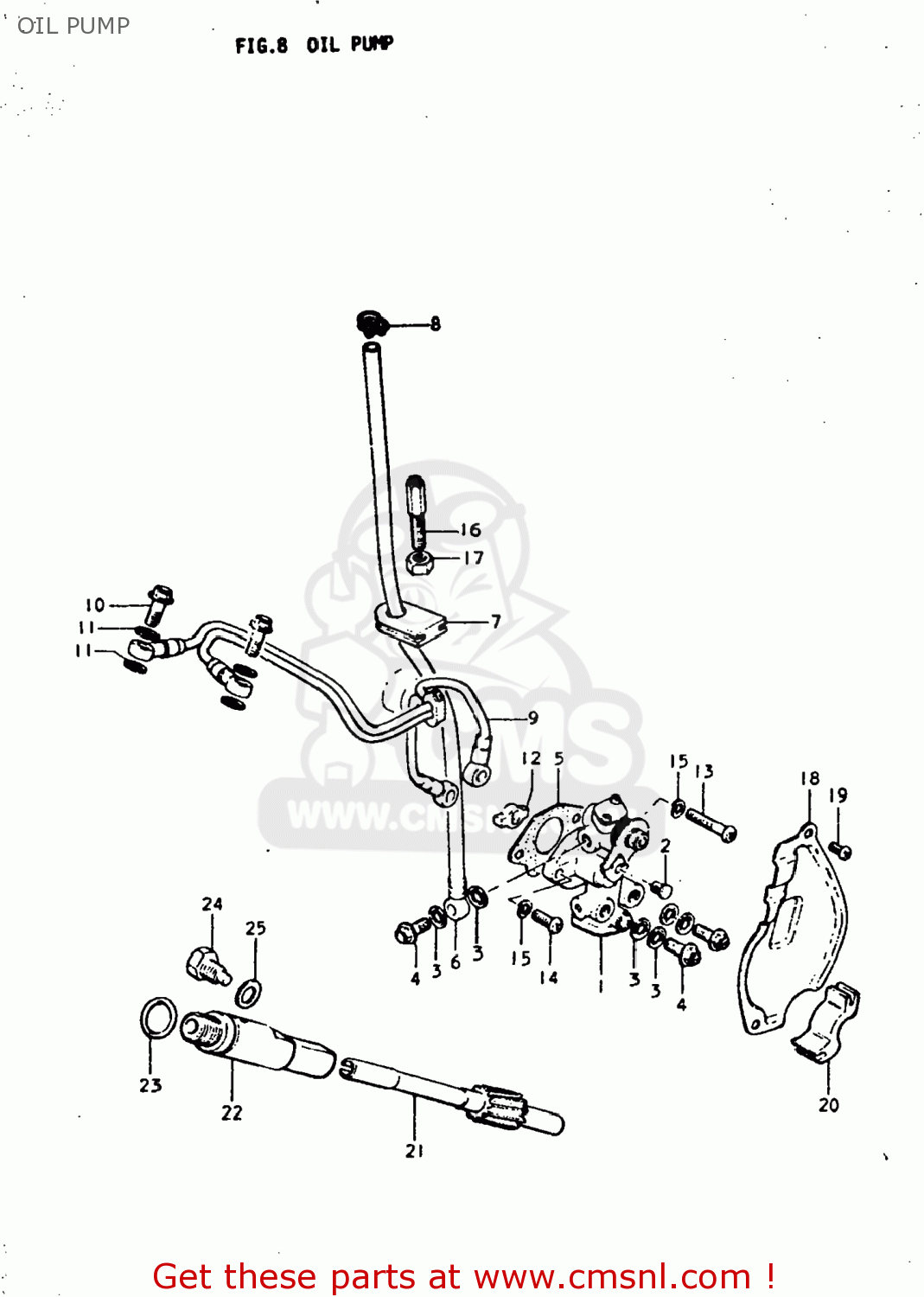

OIL PUMP

ref

part #

description

quantity

1

1610029012
ref: 1

PUMP ASSEMBLY,OIL

€ 164.50

2-1

1629203110
ref: 2-1
16292-03112

TERMINAL,CABLE

€ 3.50

2-2

1629203111
ref: 2-2
16292-03112

TERMINAL,CABLE

€ 3.50

3-1

0916806003
ref: 3-1

GASKET

€ 1.50

3-2

0916806004
ref: 3-2

GASKET(6.2X11X1).2 (NAS)

€ 1.50

4

0936006003
ref: 4

UNION BOLT

€ 5.00

5

1673103100
ref: 5
16731-03101

GASKET,OIL PUMP (MCA)

€ 2.50

6

1681005031
ref: 6
16810-07520

HOSE,OIL NO.1

€ 17.50

7

0930908002
ref: 7

GROMMET

€ 3.00

8

0940010301
ref: 8
09400-10302

CLAMP

€ 9.50

9

1682029130
ref: 9

HOSE,OIL NO.2

€ 19.50

10

0936006003
ref: 10

UNION BOLT

€ 5.00

11-1

0916806003
ref: 11-1

GASKET

€ 1.50

11-2

0916806004
ref: 11-2

GASKET(6.2X11X1).2 (NAS)

€ 1.50

12

1639105030
ref: 12
16391-05031

PIECE,OIL PUMP DRIVE

€ 2.50

13

0211205308
ref: 13
02112-0530A

SCREW

€ 1.50

14

0211205168
ref: 14
02112-05167

SCREW

€ 2.50

15

0832121058
ref: 15
08321-0105A

LOCK WASHER

€ 2.00

16

0911908014
ref: 16

BOLT

€ 3.50

17

0831221088
ref: 17
08310-00087

NUT

€ 2.00

18

1138529100
ref: 18

CAP,OIL PUMP INSPECTION

€ 0.00

19

0211206108
ref: 19
02112-06107

SCREW

€ 1.50

20

1138629100
ref: 20

CONNECTOR,COOLING DUCT

€ 1.50

21

2643129100
ref: 21

GEAR,TACHOMETER DRIVEN

€ 13.00

22

2644129100
ref: 22

SLEEVE,TACHOMETER DRIVE

€ 0.00

23

0928016001
ref: 23

O RING(D:1.7,ID:15.5)

€ 3.00

24

0913506002
ref: 24
09135-06501

BOLT

€ 2.50

25

0832221068
ref: 25
08322-01067

WASHER

€ 2.00
