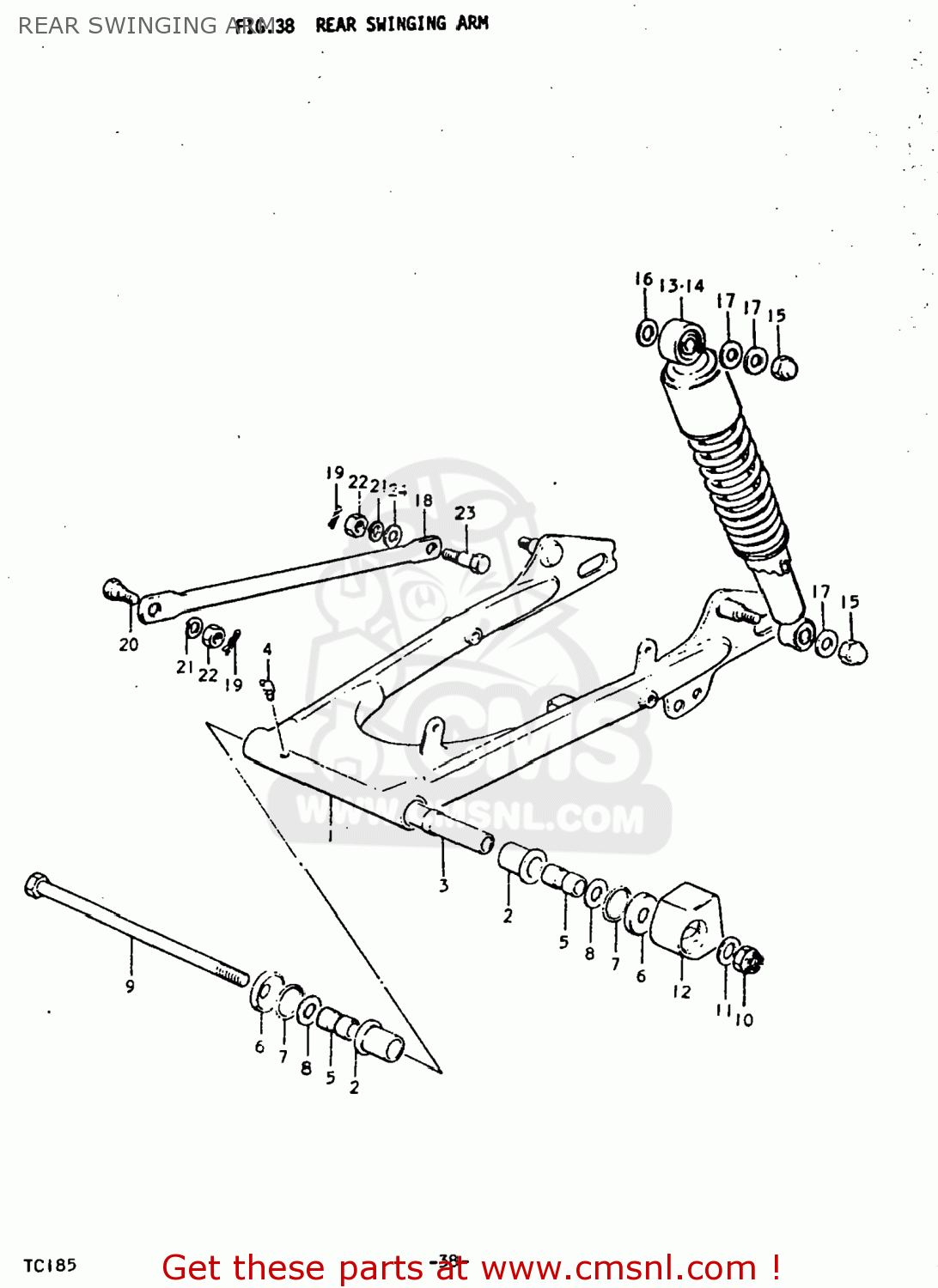

REAR SWINGING ARM

ref

part #

description

quantity

1-1

6110028805019
ref: 1-1

SWING ARM ASSEMBLY,REAR

€ 68.50

1-2

6110028860019
ref: 1-2

SWING ARM ASSEMBLY,REAR

€ 68.50

2-1

0930718001
ref: 2-1
09307-18002

BUSHING

€ 10.50

2-2

0930718002
ref: 2-2

BUSH

€ 10.50

3

6128028000
ref: 3

SPACER,SWING ARM,CENTER

€ 12.00

4

0835131008
ref: 4
08351-3100A

NIPPLE,GREASE

€ 10.50

5

6125128000
ref: 5

SPACER,RR SWGARM PIVOT

€ 8.50

6

6126209200
ref: 6

COVER,SWGARM BUSH DUST SEAL

€ 2.50

7

0928024001
ref: 7

O RING(D:2,ID:24.5)

€ 2.00

8

0916012005
ref: 8

WASHER(12.5X24X2.3)

€ 3.00

9-1

6121128001
ref: 9-1
61211-28002

SHAFT,REAR SWING ARM

€ 23.00

9-2

6121128002
ref: 9-2

SHAFT,PIVOT

€ 23.00

10

0915912102
ref: 10

NUT

€ 5.00

11

0832211128
ref: 11
08322-01127

WASHER

€ 2.00

12-1

6127328000
ref: 12-1
61273-28001

BUFFER,CHAIN TOUCH DEFLECTOR

€ 11.00

12-2

6127328001
ref: 12-2

BUFFER,CHAIN TOUCH DEFENSE

€ 11.00

13

6210028601
ref: 13
62100-28602

ABSORBER ASSEMBLY,REAR SHOCK

€ 188.00

14

6210028602
ref: 14

ABSORBER ASSEMBLY,REAR SHOCK

€ 188.00

15

0831311107
ref: 15
08313-10107

NUT

€ 2.50

16

0832211128
ref: 16
08322-01127

WASHER

€ 2.00

17

0916010001
ref: 17
09160-10093

WASHER

€ 2.00

18

6431128000
ref: 18
64311-28000-019

TORQUE LINK,REAR

€ 10.00

19

0938510001
ref: 19
09385-10005

CLIP

€ 1.50

20

0911108013
ref: 20

BOLT(8X26.5)

€ 3.00

21

0832121088
ref: 21
08321-01087

LOCK WASHER

€ 2.00

22

0914008008
ref: 22

NUT

€ 1.50

23

0911108015
ref: 23

BOLT(8X22)

€ 3.00

24

0832211088
ref: 24
08322-01087

WASHER

€ 2.00
