AIR CLEANER
TL1000S 1999 (X) USA (E03)

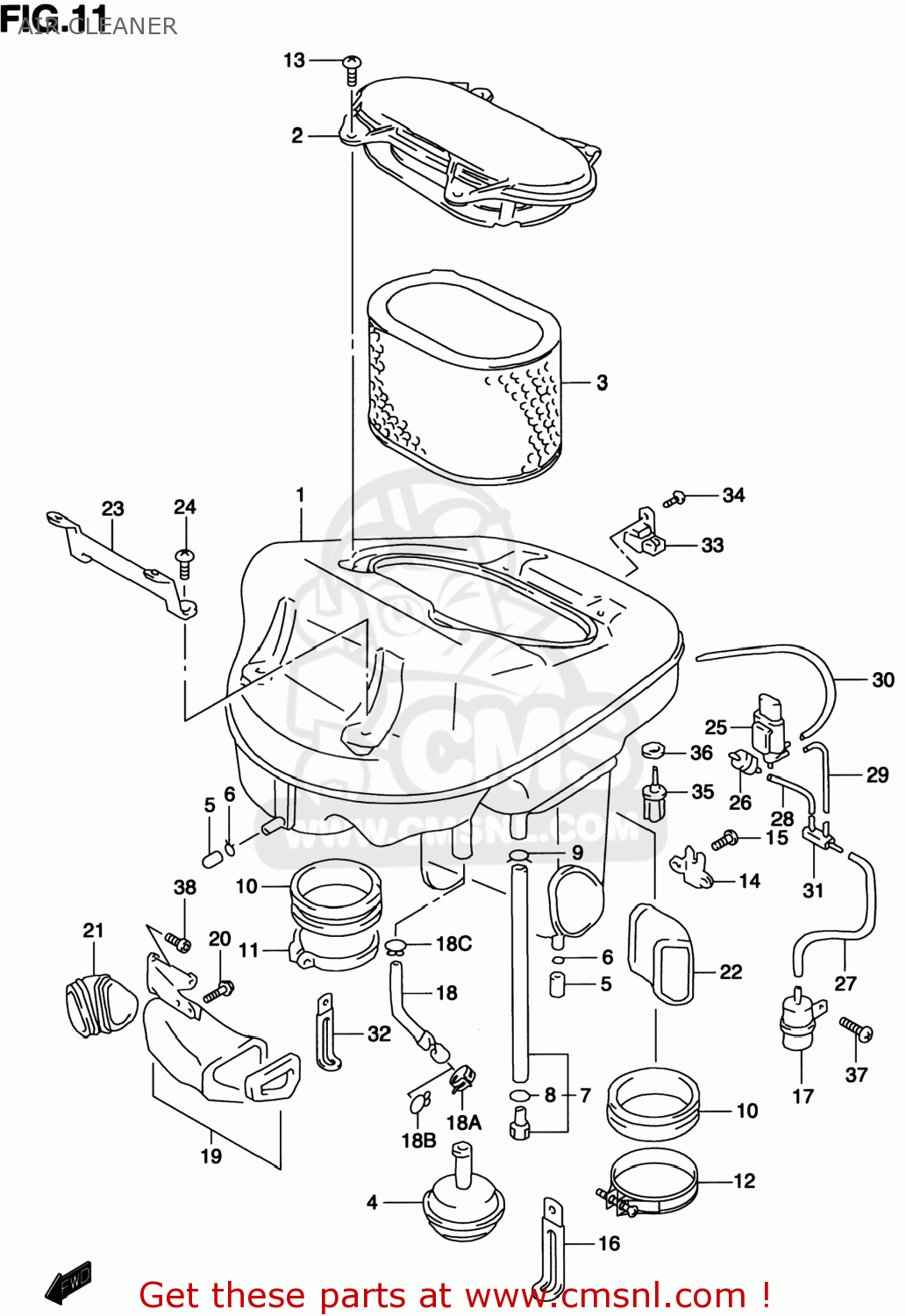

Air cleaner diagram TL1000S 1999 (X) USA (E03)
AIR CLEANER TL1000S 1999 (X) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
1370002F00
ref: 1-1
CLEANER ASSY,AIR
€ 318.00
1-2
1370002F20
ref: 1-2
13700-02F00
CLEANER ASSEMBLY,AIR
€ 318.00
2
1374002F00
ref: 2
CAP,AIR CLEANER
€ 30.00
3
1378002F00
ref: 3
FILTER,AIR CLEANER
€ 34.50
4
1389502F00
ref: 4
DIAPHRAGM,CONT VALVE
€ 46.00
5
1385941B10
ref: 5
PLUG
€ 5.50
6
0940114301
ref: 6
CLIP
€ 2.00
7
1387011218
ref: 7
TUBE,DRAIN
€ 7.00
8
0940111101
ref: 8
CLIP
€ 2.50
9
0940113409
ref: 9
CLIP
€ 2.50
10
1388102F00
ref: 10
TUBE,OUTLET
€ 15.00
11
1382602F00
ref: 11
CLAMP
€ 7.50
12
1382602F00
ref: 12
CLAMP
€ 7.50
13
0214205123
ref: 13
02142-0512A
SCREW 5X12
€ 1.50
14
1811602F00
ref: 14
BRACKET,SOLENOID VALVE
€ 4.00
15
0214205103
ref: 15
02142-0510B
SCREW
€ 2.50
16
0940406432
ref: 16
CLAMP(L:65)
€ 2.50
17
1371502F00
ref: 17
CHAMBER,VACUUM
€ 20.50
18A
0940228511
ref: 18A
CLAMP
€ 8.50
18B
0940115301
ref: 18B
CLIP
€ 2.50
18C
0940114403
ref: 18C
CLIP
€ 3.00
18-1
1385102F00
ref: 18-1
TUBE,BREATHER
€ 28.00
18-2
1385102F10
ref: 18-2
TUBE,BREATHER
€ 20.00
19
1389002F00
ref: 19
DUCT,AIR CLEANER
€ 56.50
20
0158006123
ref: 20
01580-0612A
BOLT
€ 2.00
21
1389202F00
ref: 21
BOOT,AIR INLET,R
€ 16.00
22
1389302F00
ref: 22
BOOT,AIR INLET,L
€ 14.50
23
1398002F00
ref: 23
BRACKET,AIR CLEANER
€ 8.50
24
0214206123
ref: 24
02142-0612A
SCREW 6X12
€ 2.00
25
1811570G10
ref: 25
VALVE ASSY,3WAY SOLENOID
€ 73.50
26
9556978040
ref: 26
VALVE,CHECK
€ 24.00
27
0935540805600
ref: 27
HOSE(4X8X600)
€ 9.00
28
0935540805600
ref: 28
HOSE(4X8X600)
€ 9.00
29
0935540805600
ref: 29
HOSE(4X8X600)
€ 9.00
30
0935540805600
ref: 30
HOSE(4X8X600)
€ 9.00
31
0936704009
ref: 31
JOINT
€ 4.00
32
0940406433
ref: 32
CLAMP(L:80)
€ 3.00
33
1562002F00
ref: 33
SENSOR,BOOST
€ 280.50
34
0214205103
ref: 34
02142-0510B
SCREW
€ 2.50
35
1365061B00
ref: 35
SENSOR,WATER TEMP
€ 60.00
36
0916812017
ref: 36
GASKET(12X17X1) (NAS)
€ 2.00
37
0214205123
ref: 37
02142-0512A
SCREW 5X12
€ 1.50
38
0158006163
ref: 38
01580-0616A
BOLT
€ 2.50
