TL1000S 1999 (X) USA (E03)

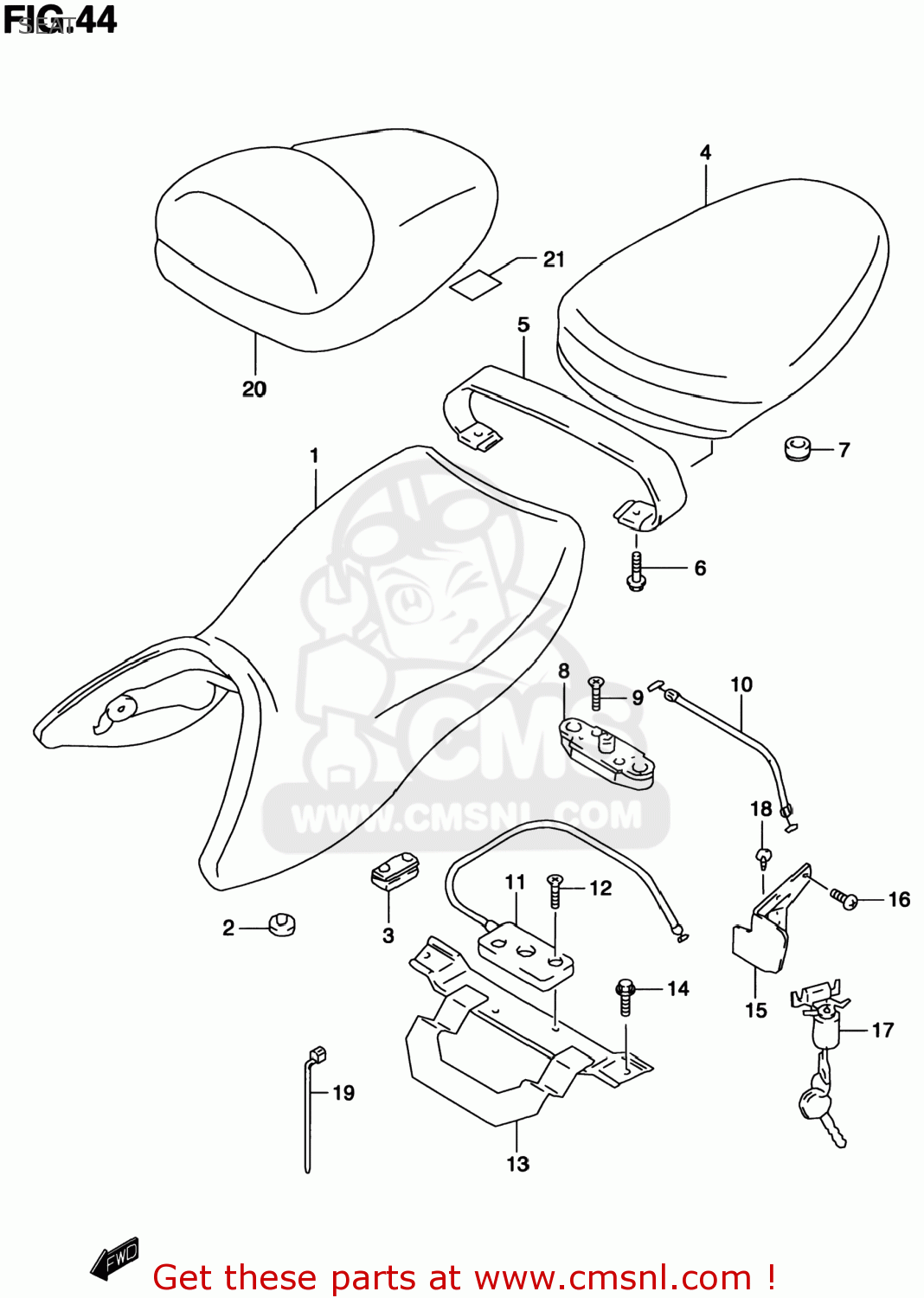

Seat diagram TL1000S 1999 (X) USA (E03)
SEAT TL1000S 1999 (X) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
4510002F10R42
ref: 1
SEAT ASSY(BLACK)
€ 303.50
2-1
4514836C00
ref: 2-1
CUSHION,SEAT
€ 4.00
2-2
0932110002
ref: 2-2
CUSHION(11.5X22X20)
€ 2.00
3
4514931300
ref: 3
CUSHION,SEAT(40X20X15)
€ 2.00
4
4530002F20R42
ref: 4
SEAT ASSY,PILLION(BLACK)
€ 0.00
5
4518002F20R42
ref: 5
BAND ASSEMBLY,PILLION SEAT
€ 0.00
6
0155006207
ref: 6
BOLT
€ 2.50
7
4521331300
ref: 7
CUSHION
€ 1.50
8
4522020A01
ref: 8
45220-47H00
BRACKET,SEAT SUPPORT,RIGHT
€ 79.50
9
0212206303
ref: 9
02122-0630B
SCREW
€ 2.00
10
4528038400
ref: 10
CABLE,SEAT LOCK
€ 10.00
11
4522002F00
ref: 11
BRACKET,SEAT SUPPORT FR
€ 23.50
12
0212206253
ref: 12
02122-0625A
SCREW
€ 2.00
13
4512002F00
ref: 13
BRACKET,SEAT LOCK
€ 19.00
14
0155006163
ref: 14
01550-0616A
BOLT
€ 2.50
15
4528902F00
ref: 15
BRACKET,SEAT LOCK KEY CYLINDER
€ 10.00
16
0214206123
ref: 16
02142-0612A
SCREW 6X12
€ 2.00
17
9570002820
ref: 17
95700-02821
LOCK SET,SEAT
€ 79.50
18
0214205103
ref: 18
02142-0510B
SCREW
€ 2.50
19
0940714403
ref: 19
CLAMP(L:125)
€ 2.50
20-1
4555002F001UH
ref: 20-1
BOX,SEAT TAIL(GREEN)
€ 194.50
20-2
4555002F0028V
ref: 20-2
BOX,SEAT TAIL(RED)
€ 194.50
20-3
4555002F0033J
ref: 20-3
BOX,SEAT TAIL(BLACK)
€ 182.50
20-4
4555002F00Y0W
ref: 20-4
BOX COMP,SEAT TAIL
€ 180.50
20-5
4555002F00Y7H
ref: 20-5
BOX COMP,SEAT TAIL
€ 180.50
20-6
4555002F00Y7M
ref: 20-6
BOX COMP,SEAT TAIL
€ 194.00
20-7
4555002F00Y9H
ref: 20-7
BOX,SEAT TAIL(YELLOW)
€ 193.00
20-8
4555002F00YC2
ref: 20-8
BOX, SEAT TAIL (BLUE)
€ 194.00
20-9
4555002F00Y7L
ref: 20-9
BOX COMP,SEAT TAIL
€ 190.00
21
4555933E00
ref: 21
PROTECTOR SET,SEAT TAIL BOX
€ 10.00
