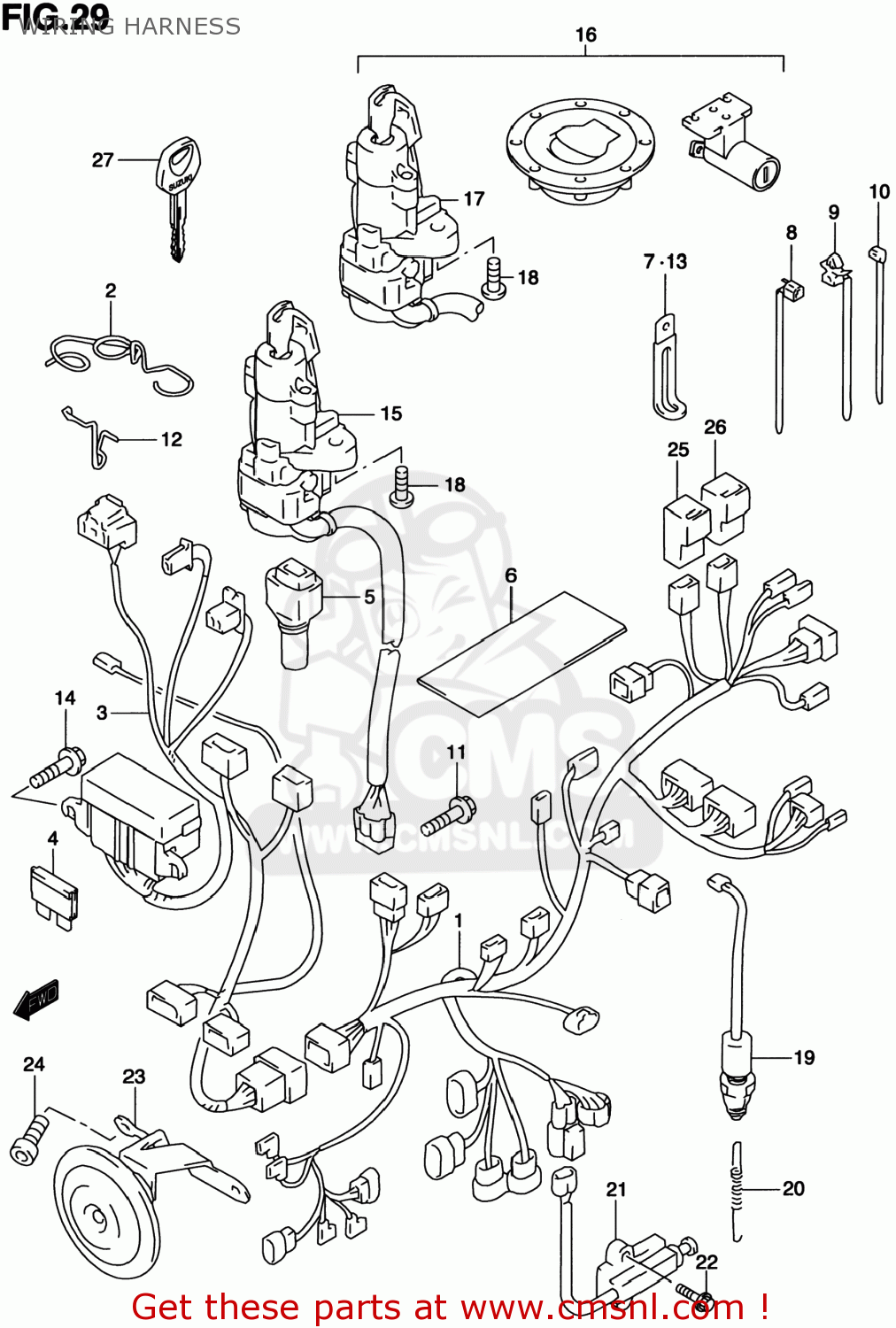

WIRING HARNESS

ref

part #

description

quantity

1-1

3661002F00
ref: 1-1

HARNESS,WIRING NO.1

€ 484.00

1-2

3661002F10
ref: 1-2

HARNESS,WIRING NO.1

€ 1,049.00

2

3661933E00
ref: 2

GUIDE,WIRING HARNESS

€ 10.50

3

3662002F10
ref: 3

HARNESS,WIRING NO.2

€ 185.00

4-1

0948110101
ref: 4-1

FUSE(10A)

€ 2.50

4-2

0948115101
ref: 4-2

FUSE(15A)

€ 1.50

5

3661833E00
ref: 5

COVER,SPEEDOMETER COUPLER

€ 5.50

6

3692014D00
ref: 6

PROTECTOR,WIRING HARNESS

€ 5.50

7-1

0940406429
ref: 7-1

CLAMP(L:45)

€ 2.50

7-2

0940406431
ref: 7-2
09404-06432

CLAMP(L:65)

€ 2.50

8-1

0940711401
ref: 8-1

CLAMP(L:95)

€ 2.50

8-2

0940714403
ref: 8-2

CLAMP(L:125)

€ 2.50

8-3

0940725401
ref: 8-3

CLAMP(L:235)

€ 4.00

9-1

0940711402
ref: 9-1

CLAMP(L:90)

€ 2.50

9-2

0940717401
ref: 9-2
09407-17402

CLAMP

€ 5.00

9-3

0940718402
ref: 9-3

CLAMP(L:165)

€ 2.50

10

0940714407
ref: 10

CLAMP(L:145)

€ 4.00

11

0155006103
ref: 11
01550-0610A

BOLT

€ 2.50

12

3674533E00
ref: 12

STOPPER,FUSE BOX

€ 7.00

13-1

0940406431
ref: 13-1
09404-06432

CLAMP(L:65)

€ 2.50

13-2

0940406434
ref: 13-2

CLAMP(L:80 T:1.0)

€ 3.00

13-2

0940406434
ref: 13-2

CLAMP(L:80 T:1.0)

€ 3.00

14

0214206123
ref: 14
02142-0612A

SCREW 6X12

€ 2.00

15

3710033E01
ref: 15

LOCK ASSY,STEERING

€ 170.00

16-1

3700002830
ref: 16-1

LOCK SET

€ 350.50

16-2

3700002840
ref: 16-2

LOCK SET

€ 0.00

17

3710002F00
ref: 17

LOCK ASSY,STEERING

€ 121.50

18

0913908016
ref: 18

BOLT(8X20)

€ 3.50

19

3774031D00
ref: 19

SWITCH ASSY,STOP LAMP

€ 20.50

20

0944306012
ref: 20

SPRING

€ 3.00

21

3784026X50
ref: 21

SWITCH ASSY,SIDE STAND WARNING

€ 100.50

22

0155006163
ref: 22
01550-0616A

BOLT

€ 2.50

23

3850002F10
ref: 23

HORN ASSY

€ 55.00

24

0712006123
ref: 24
07120-0612B

BOLT

€ 3.50

25

3874026E00
ref: 25

RELAY ASSY

€ 32.50

26

3874026E00
ref: 26

RELAY ASSY

€ 32.50

27

3714633E00
ref: 27

KEY,BLANK

€ 13.00
