REAR WHEEL
TL1000S 1999 (X) USA (E03)

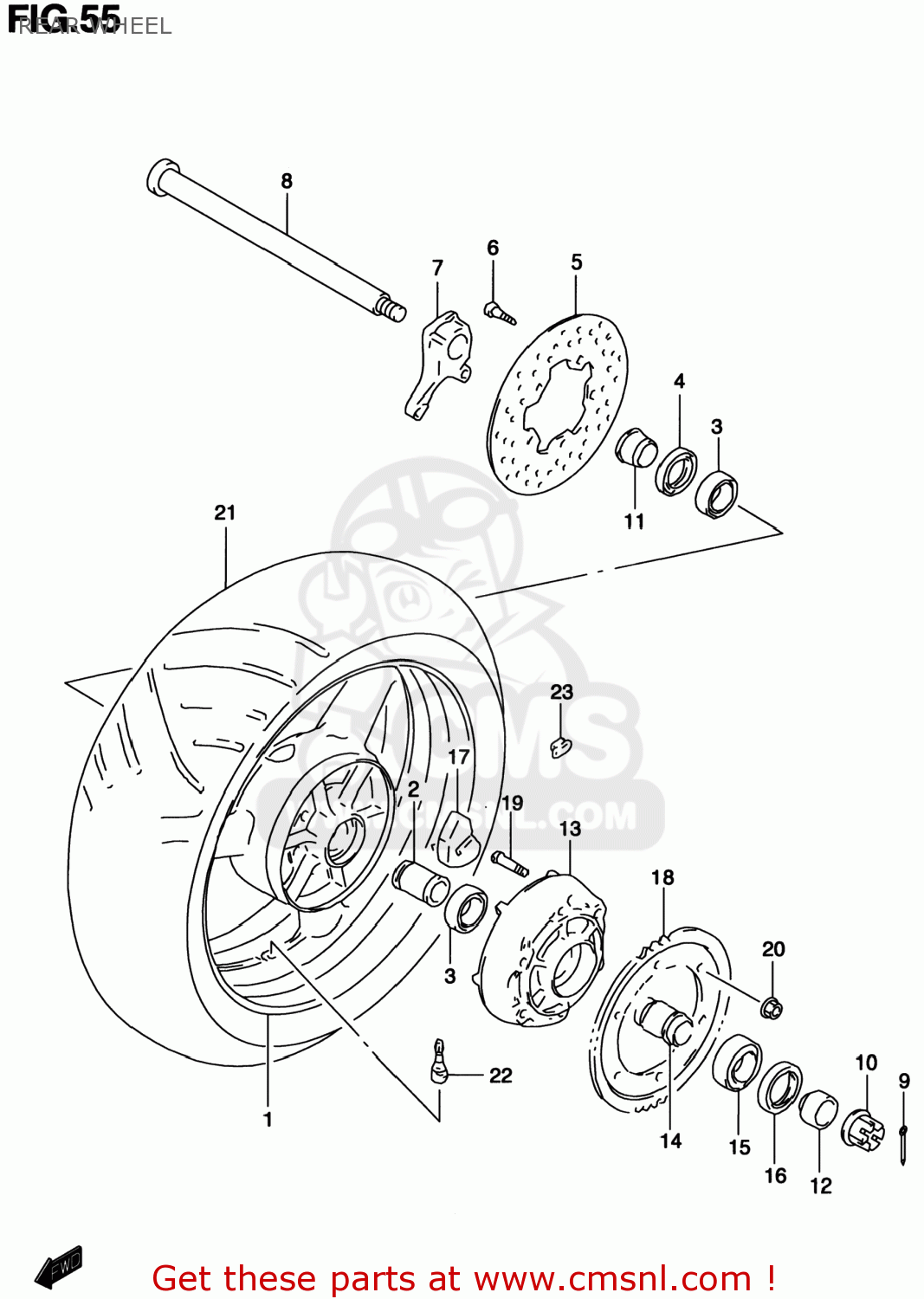

Rear wheel diagram TL1000S 1999 (X) USA (E03)
REAR WHEEL TL1000S 1999 (X) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
6411133E0035B
ref: 1-1
64111-33E10-35B
WHEEL,REAR (17XMT6.00)
€ 948.50
1-1
6411133E0035B
ref: 1-1
64111-33E10-35B
WHEEL,REAR (17XMT6.00)
€ 948.50
1-2
6411133E1035B
ref: 1-2
WHEEL,REAR (17X3T6.00)(G
€ 948.50
1-3
6411133E10Y6G
ref: 1-3
64111-33E11-Y6G
WHEEL,REAR (17X3T6.00)(S
€ 745.00
1-3
6411133E10Y6G
ref: 1-3
64111-33E11-Y6G
WHEEL,REAR (17X3T6.00)(S
€ 745.00
2-1
6473033E00
ref: 2-1
64731-33E10
SPACER COMP,REAR HUB B
€ 62.50
2-1
6473033E00
ref: 2-1
64731-33E10
SPACER COMP,REAR HUB B
€ 62.50
2-1
6473033E00
ref: 2-1
64731-33E10
SPACER COMP,REAR HUB B
€ 62.50
2-1
6473033E00
ref: 2-1
64731-33E10
SPACER COMP,REAR HUB B
€ 62.50
2-2
6473133E10
ref: 2-2
SPACER,RR HUB BEARING
€ 62.50
2-2
6473133E10
ref: 2-2
SPACER,RR HUB BEARING
€ 62.50
2-3
6473133E10
ref: 2-3
SPACER,RR HUB BEARING
€ 62.50
3
0926232008
ref: 3
BEARING(32X58X13)
€ 31.50
4
0928538001
ref: 4
SEAL,OIL(38X58X7)
€ 7.50
5
6921133E10
ref: 5
DISC,RR BRAKE
€ 200.50
6
0910608125
ref: 6
09106-08148
BOLT 8X33
€ 6.00
7
6972133E00
ref: 7
BRACKET,RR CALIPER
€ 82.00
8
6471133E30
ref: 8
AXLE,RR
€ 60.50
9
0411140408
ref: 9
04111-4040A
PIN, COTTER
€ 2.00
10
0914125001
ref: 10
NUT
€ 25.00
11
6474133E00
ref: 11
SPACER,RR AXLE,R
€ 18.50
12
6475133E00
ref: 12
SPACER,RR AXLE,L
€ 30.00
13
6461133E02
ref: 13
DRUM,RR SPROCKET
€ 189.00
14
6473333E00
ref: 14
RETAINER,RR SPROCKET DRUM
€ 37.50
15
0926232007
ref: 15
09262-32022
BEARING
€ 49.00
16
0928539001
ref: 16
SEAL,OIL(39X65X7)
€ 9.00
17
6465117E00
ref: 17
ABSORBER,RR HUB SHOCK
€ 12.50
18
6451102F00
ref: 18
SPROCKET,RR(NT:38-530)
€ 71.00
19
0911910059
ref: 19
BOLT
€ 3.50
20
0831931107
ref: 20
NUT
€ 3.00
21
6511002F00
ref: 21
65110-02F01
TIRE,REAR 190/50 ZR17
€ 200.50
21
6511002F00
ref: 21
65110-02F01
TIRE,REAR 190/50 ZR17
€ 200.50
22
4313024A00
ref: 22
VALVE ASSY,WHEEL RIM(TR412)
€ 7.00
23-1
5541100A00
ref: 23-1
BALANCER,WHEEL (10G)
€ 6.50
23-2
5541200A01
ref: 23-2
55412-17G00
BALANCER,WHEEL (20G)
€ 7.00
