BATTERY

TL1000S 2000 (Y) USA (E03)

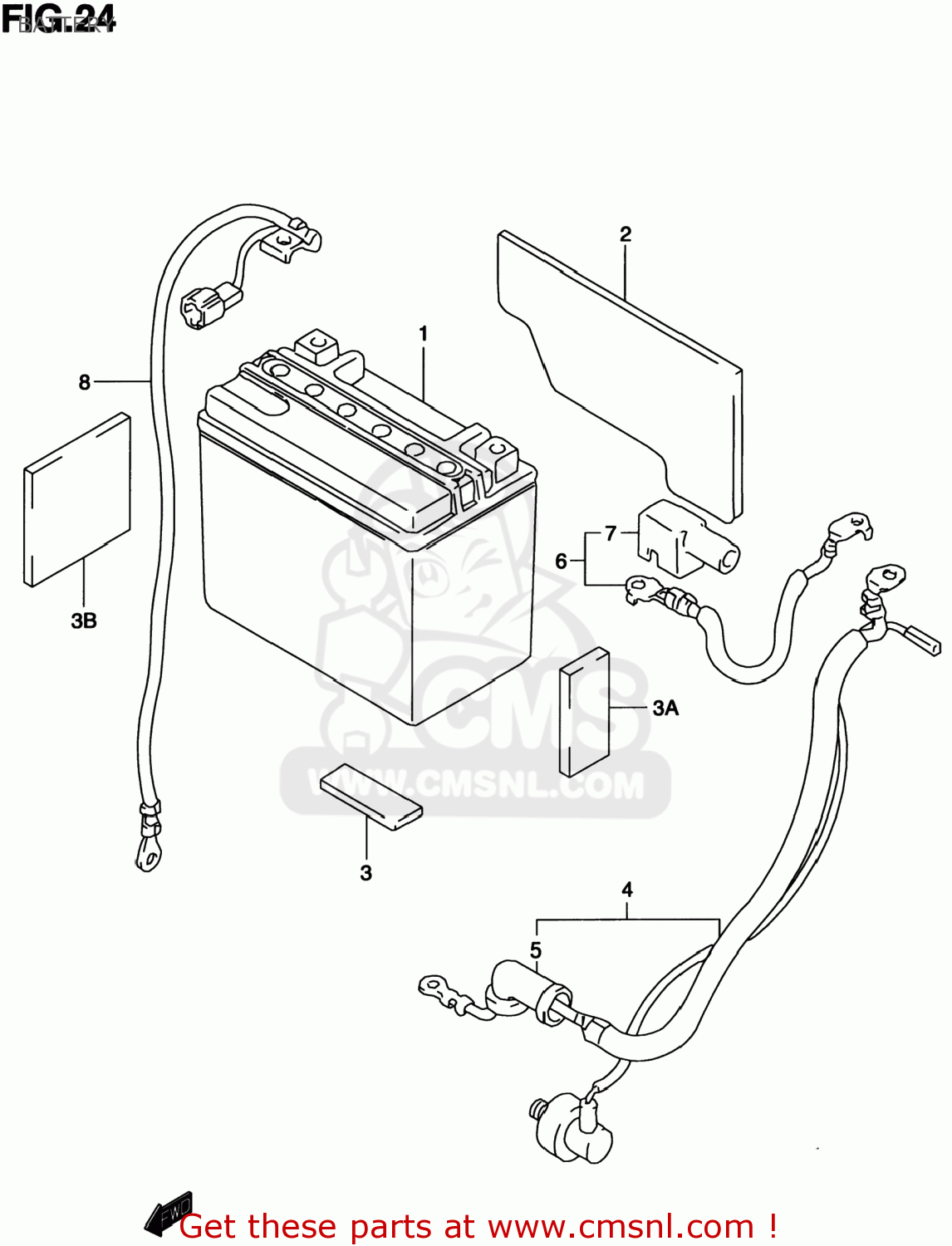

Battery diagram TL1000S 2000 (Y) USA (E03)

prices are in EUR

ref

part #

description

quantity

3361048E20
ref: 1

BATTERY ASSEMBLY (12V) FTX

€ 97.50

3365137000
ref: 2

PROTECTOR(170X95X3.0)

€ 5.00

3365137000
ref: 2

PROTECTOR(170X95X3.0)

€ 5.00

3365235400
ref: 3

PROTECTOR(20X50X8)

€ 2.00

3365228000
ref: 3A
33651-37000

CUSHION 20X45X6

€ 6.00

3365220C00
ref: 3B

PROTECTOR(50X50X5)

€ 2.50

3381002F00
ref: 4

WIRE,STARTER MOTOR LEAD

€ 35.50

3186148B10
ref: 5

CAP,STARTER MOTOR LEAD

€ 4.50

3382048E00
ref: 6

WIRE,BATTERY PLUS LEAD

€ 13.00

7-1

3362433C10
ref: 7-1

CAP,BATTERY PLUS

€ 6.50

7-2

3362416E00
ref: 7-2

CAP,BATTERY PLUS

€ 4.00

3386002F00
ref: 8

WIRE,BATTERY MINUS

€ 18.50
