STARTING MOTOR
TL1000S 2000 (Y) USA (E03)

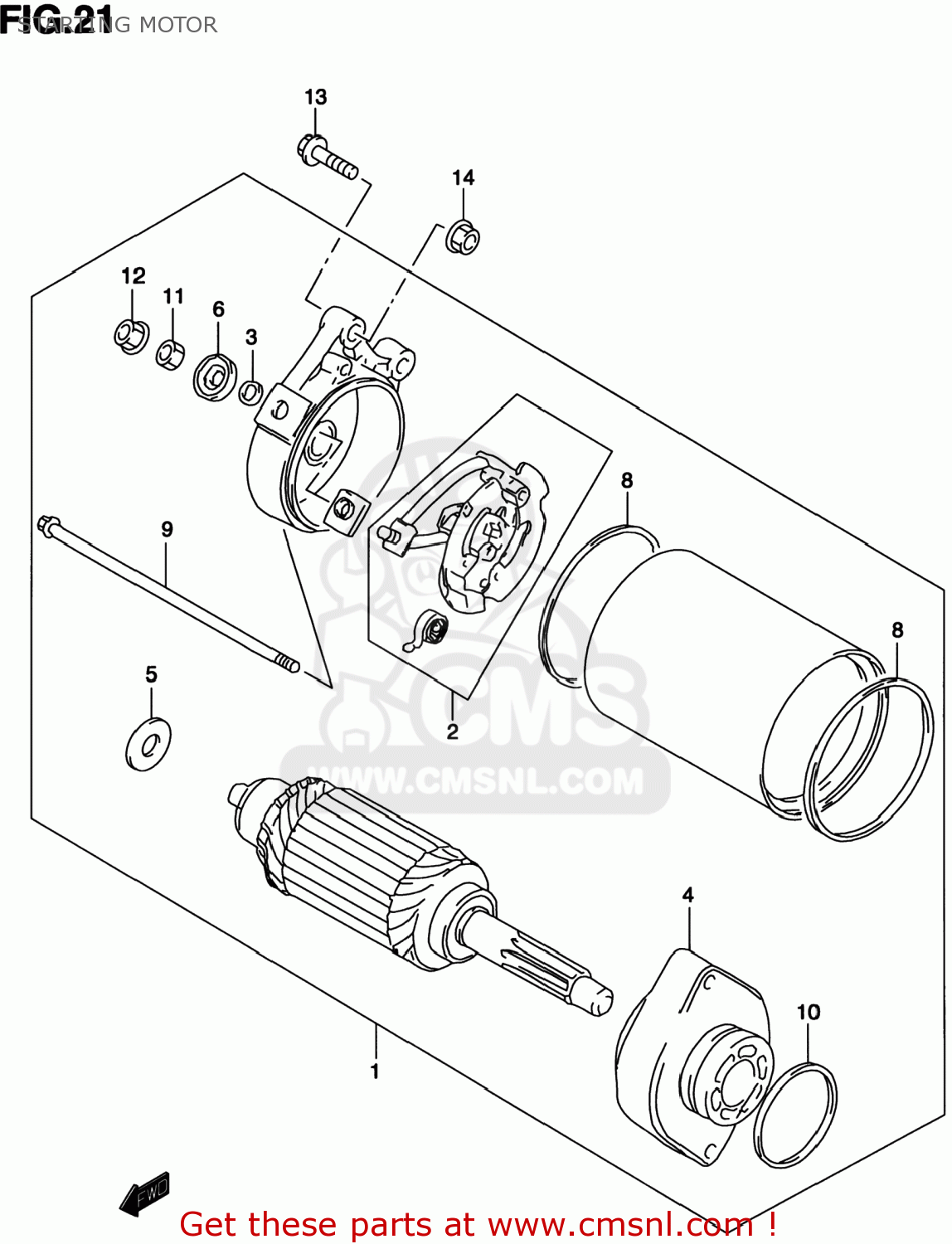

Starting motor diagram TL1000S 2000 (Y) USA (E03)
STARTING MOTOR TL1000S 2000 (Y) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
3110002F00
ref: 1-1
31100-02F10
MOTOR ASSEMBLY,STARTING
€ 704.50
1-2
3110002F10
ref: 1-2
MOTOR ASSY,STARTING
€ 704.50
2
3113245C00
ref: 2
HOLDER SET,BRUSH
€ 46.00
3
3114338300
ref: 3
O RING
€ 3.50
4
3115044B00
ref: 4
BRACKET SET
€ 98.50
5
3117043400
ref: 5
SHIM SET,STARTING MOTOR
€ 3.50
6
3117238300
ref: 6
BUSHING
€ 4.00
7
3117388C00
ref: 7
BUSHING
€ 6.00
8
3126444110
ref: 8
O RING
€ 8.00
9
3128124B10
ref: 9
BOLT
€ 5.00
10-1
0928035003
ref: 10-1
09280-35005
O-RING (D:2 ID:35)
€ 9.50
10-2
0928035005A
ref: 10-2
O-RING (D:2.1 ID:34.7)
€ 9.50
11
0831000067
ref: 11
NUT
€ 2.50
12
0836135068
ref: 12
08361-3506A
NUT
€ 2.00
13
0154706257
ref: 13
BOLT
€ 2.50
14
0836135068
ref: 14
08361-3506A
NUT
€ 2.00
