prices are in EUR
ref
part #
description
quantity

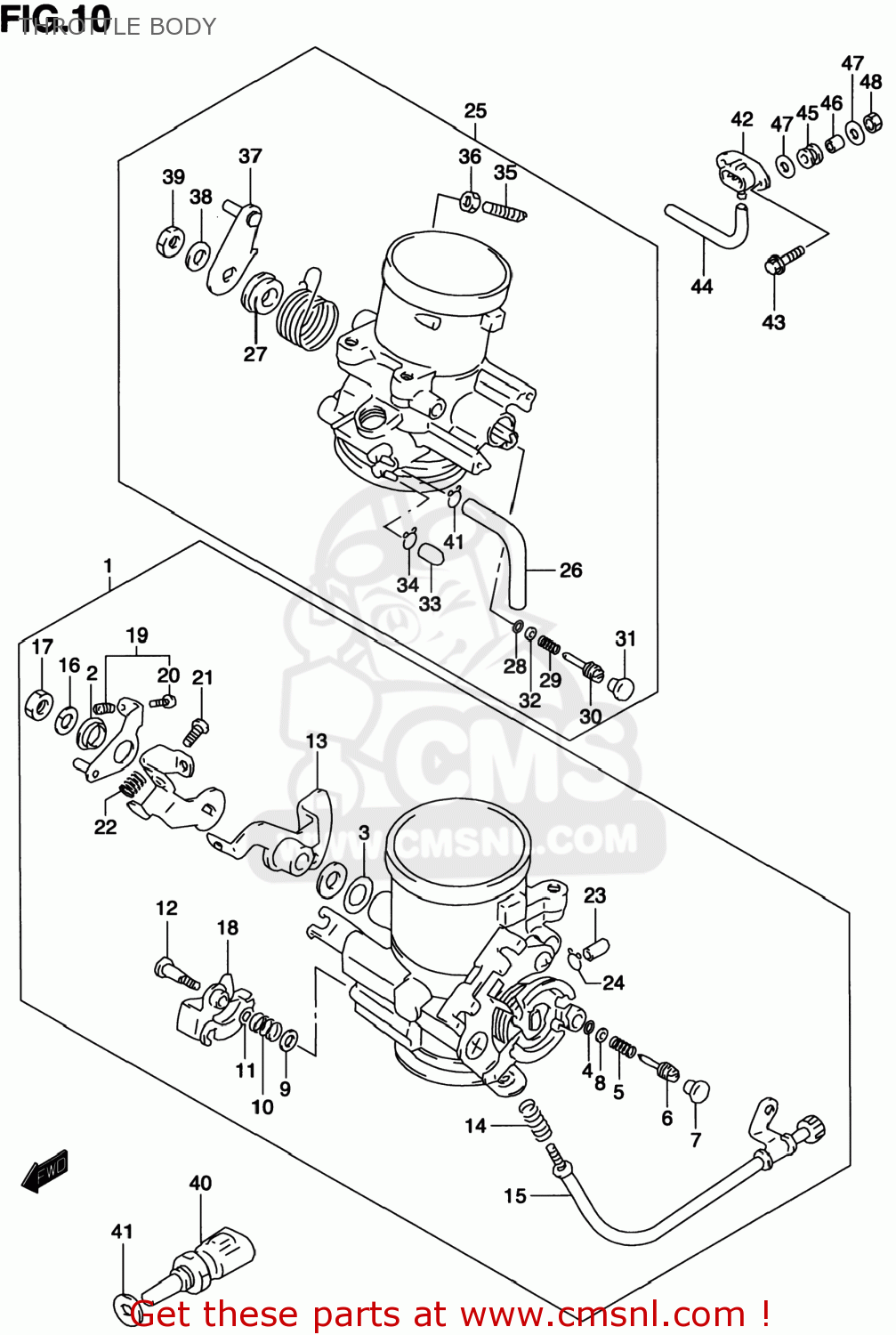

1-1
BODY ASSY,THROTTLE FR
1-2
BODY ASSEMBLY,THROTTLE,FRONT
1-3
BODY ASSY,THROTTLE FR
1-4
BODY ASSY,THROTTLE FR
2
RING
4
O RING,PILOT AIR SCREW
5
SPRING
6
SCREW,AIR
7
PLUG
8
WASHER
10
SPRING
14
SPRING
15
ADJUSTER ASSY
16
WASHER
20
SCREW
22
SPRING
23
CAP
24
CLIP
25-1
BODY ASSEMBLY,THROTTLE,REAR
25-2
BODY ASSEMBLY,THROTTLE,REAR
25-3
BODY ASSY,THROTTLE RR
25-4
BODY ASSY,THROTTLE RR
26-2
HOSE(L:425)
28
O RING,PILOT AIR SCREW
29
SPRING
30
SCREW,AIR
31
PLUG
32
WASHER
33
CAP
34
CLIP
35-2
SCREW
36
NUT
38
WASHER
40
SENSOR,WATER TEMP
41
GASKET(12X17X1) (NAS)
42
SENSOR,MAP
43
BOLT
44
HOSE(4X8X600)
45
CUSHION
46
SPACER(6.5X10X10)
47
WASHER(6.5X20X1.2)
48
NUT
