KICK STARTER
TM250 1975 (M) USA (E03)

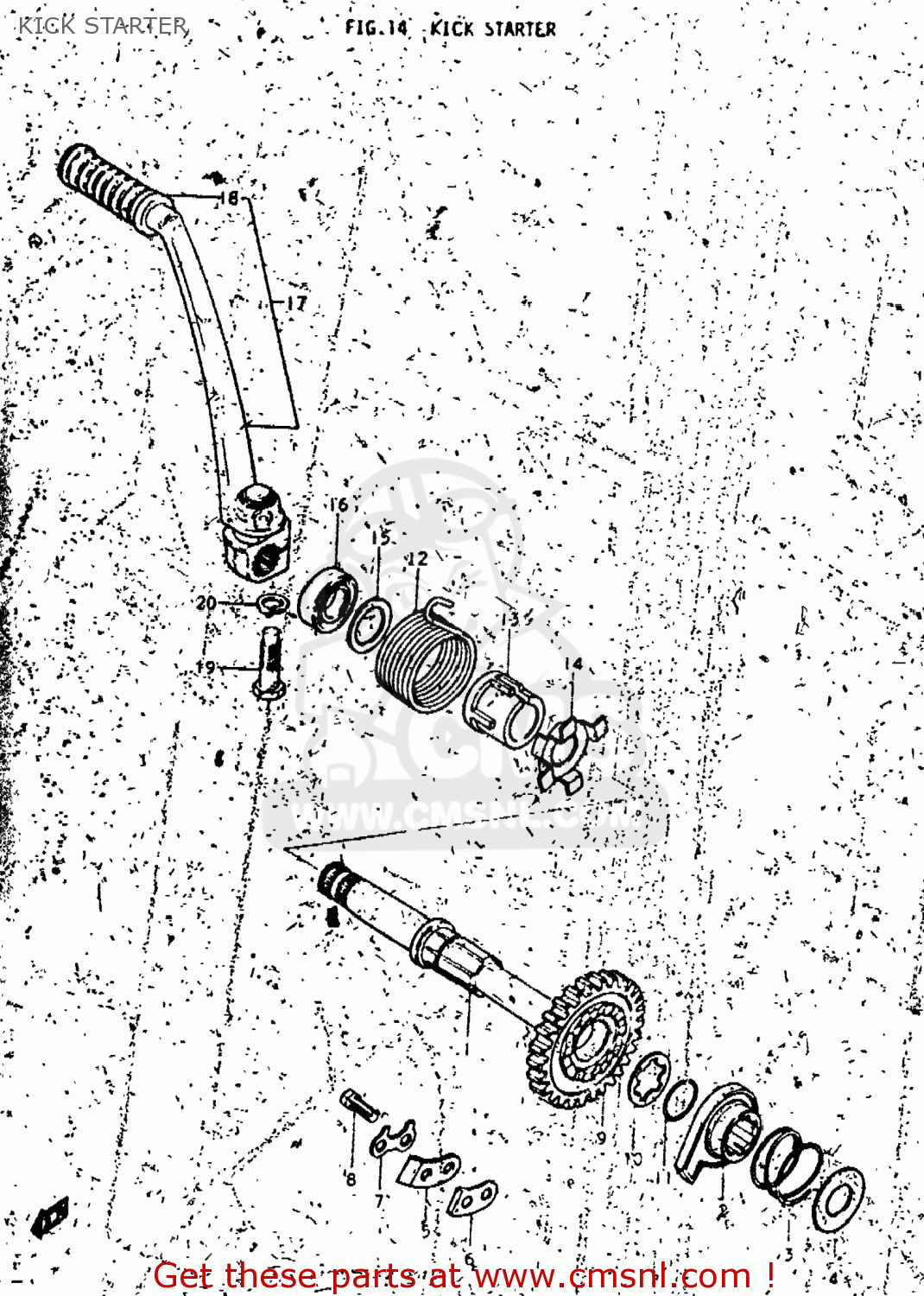

Kick starter diagram TM250 1975 (M) USA (E03)
KICK STARTER TM250 1975 (M) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
2621130000
ref: 1
SHAFT,KICK STARTER
€ 38.00
2
2623130000
ref: 2
26231-22A10
STARTER,KICK
€ 47.50
3
0944032002
ref: 3
SPRING
€ 2.00
4
0821117342
ref: 4
WASHER
€ 3.00
5
2623230000
ref: 5
GUIDE,KICK STARTER
€ 6.00
6
2623330000
ref: 6
STOPPER,KICK STARTER
€ 4.00
7
0916906003
ref: 7
WASHER
€ 1.50
8
0111206128
ref: 8
01500-06127
BOLT
€ 2.00
9-1
2624130000
ref: 9-1
GEAR,KICK STARTER DRIVE
€ 56.00
9-1
2624130000
ref: 9-1
GEAR,KICK STARTER DRIVE
€ 56.00
9-2
2624130001
ref: 9-2
GEAR,KICK STARTER DRIVE
€ 56.00
10
0916722007
ref: 10
WASHER,LOCK
€ 3.50
11
0938022003
ref: 11
CIRCLIP
€ 13.50
12
0944847002
ref: 12
SPRING
€ 3.50
13
2622130000
ref: 13
GUIDE,KICK SHAFT SPRING
€ 7.00
14
2622230000
ref: 14
HOLDER,KICK SHAFT SPRING
€ 2.50
15
0821220361
ref: 15
WASHER
€ 1.50
16
0928320025
ref: 16
SEAL,OIL(20X37X7)
€ 6.50
17-1
2630030101
ref: 17-1
26300-30102
LEVER ASSEMBLY,KICK STARTER
€ 102.00
17-1
2630030101
ref: 17-1
26300-30102
LEVER ASSEMBLY,KICK STARTER
€ 102.00
17-2
2630030102
ref: 17-2
LEVER ASSEMBLY,KICK STARTER
€ 102.00
18
2635216401
ref: 18
RUBBER,KICK STARTER PEDAL
€ 4.00
19
0913510002
ref: 19
BOLT(10X37.5)
€ 5.50
20
0832121108
ref: 20
08321-01107
LOCK WASHER
€ 2.00
