REAR FENDER
TM250 1975 (M) USA (E03)

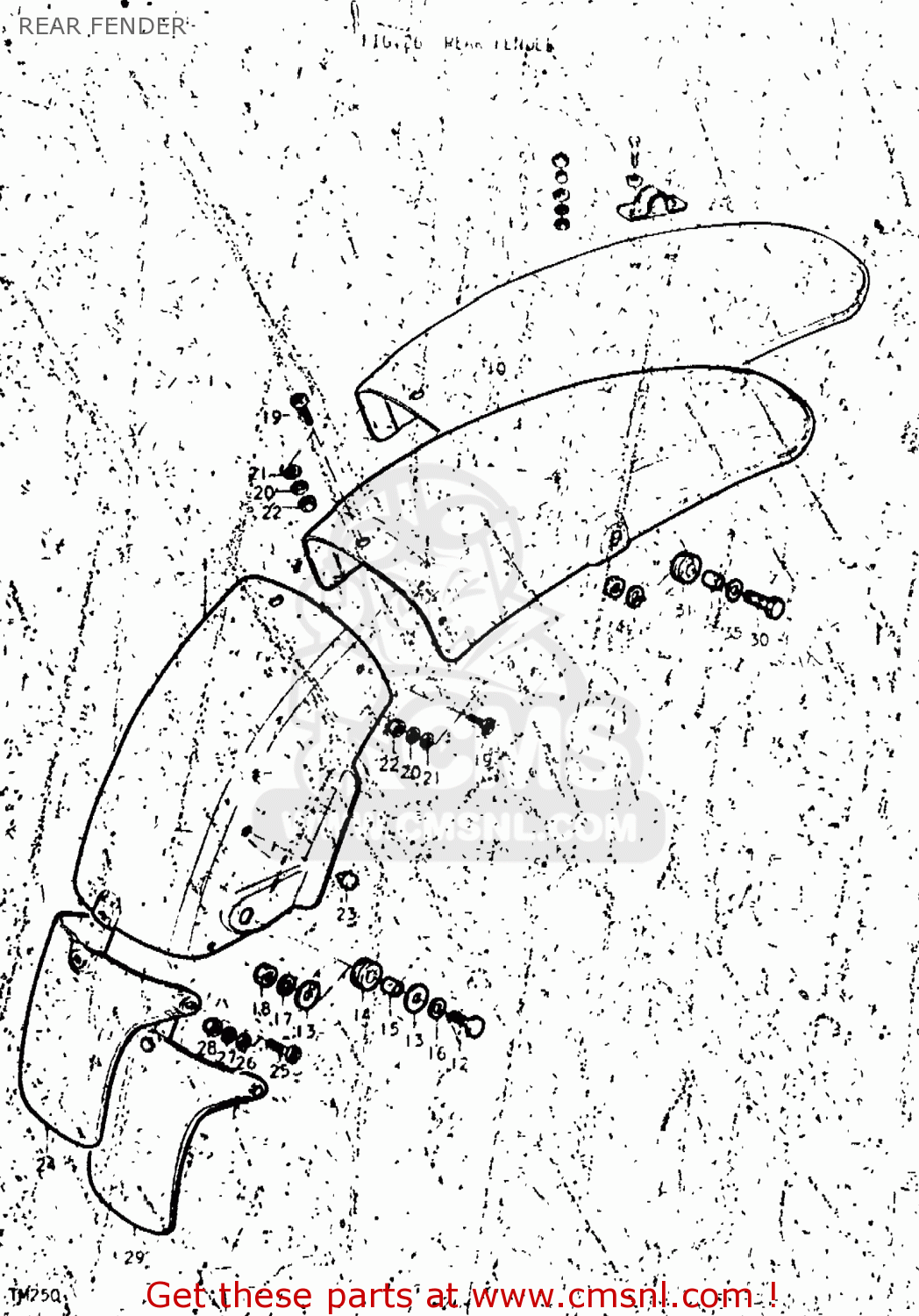

Rear fender diagram TM250 1975 (M) USA (E03)
REAR FENDER TM250 1975 (M) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
6311230002019
ref: 1-1
FENDER,REAR
€ 59.00
1-2
6311030620
ref: 1-2
63110-30620-019
FENDER,REAR
€ 59.00
1-3
6311228300163
ref: 1-3
FENDER,REAR
€ 23.50
1-4
6311228301163
ref: 1-4
FENDER,REAR
€ 23.50
2
6314028300
ref: 2
REINFORCEMENT,REAR FENDER
€ 5.50
3
0910006064
ref: 3
BOLT(6X18)
€ 1.50
4
0832221068
ref: 4
08322-01067
WASHER
€ 2.00
5
0932009003
ref: 5
CUSHION
€ 2.00
6
0918006002
ref: 6
09180-06283
SPACER
€ 2.00
7
0916006027
ref: 7
09160-06077
WASHER (6.5X20X1.2)
€ 2.00
8
0832121068
ref: 8
08321-01067
LOCK WASHER
€ 2.50
9
0831311067
ref: 9
08313-10067
NUT
€ 2.00
10
6311330100163
ref: 10
FENDER,REAR
€ 13.50
11
6311326300163
ref: 11
BODY, REAR FENDER REAR L,M
€ 0.00
12
0111206208
ref: 12
01500-06207
BOLT
€ 2.00
13
0916006027
ref: 13
09160-06077
WASHER (6.5X20X1.2)
€ 2.00
13
0916006027
ref: 13
09160-06077
WASHER (6.5X20X1.2)
€ 2.00
14
0932008007
ref: 14
09320-08021
CUSHION
€ 4.00
15
0918006038
ref: 15
SPACER(6.1X9X7.5)
€ 2.00
16
0832221068
ref: 16
08322-01067
WASHER
€ 2.00
17
0832121068
ref: 17
08321-01067
LOCK WASHER
€ 2.50
18
0831111068
ref: 18
08310-00067
NUT
€ 2.50
19-1
0214105167
ref: 19-1
02142-05167
SCREW
€ 1.50
19-2
0214105127
ref: 19-2
02142-05127
SCREW
€ 1.50
20
0832121058
ref: 20
08321-0105A
LOCK WASHER
€ 2.00
21
0832221058
ref: 21
08322-01057
WASHER
€ 2.50
22-1
0915905005
ref: 22-1
NUT
€ 1.50
22-2
0831111058
ref: 22-2
08310-00057
NUT
€ 2.50
23
0932106013
ref: 23
CUSHION
€ 2.50
24
6341130001
ref: 24
MUD GUARD,REAR FENDER
€ 0.00
25-1
0214105167
ref: 25-1
02142-05167
SCREW
€ 1.50
25-2
0214105107
ref: 25-2
02142-05107
SCREW
€ 2.50
26
0832121058
ref: 26
08321-0105A
LOCK WASHER
€ 2.00
27
0832121058
ref: 27
08321-0105A
LOCK WASHER
€ 2.00
28-1
0915905005
ref: 28-1
NUT
€ 1.50
28-2
0831131058
ref: 28-2
08310-00057
NUT
€ 2.50
29
6341130002
ref: 29
MUD GUARD,REAR FENDER
€ 14.50
30
0111206208
ref: 30
01500-06207
BOLT
€ 2.00
31
0932008007
ref: 31
09320-08021
CUSHION
€ 4.00
32
0918006038
ref: 32
SPACER(6.1X9X7.5)
€ 2.00
33
0832121068
ref: 33
08321-01067
LOCK WASHER
€ 2.50
34
0831111068
ref: 34
08310-00067
NUT
€ 2.50
35
0916006027
ref: 35
09160-06077
WASHER (6.5X20X1.2)
€ 2.00
