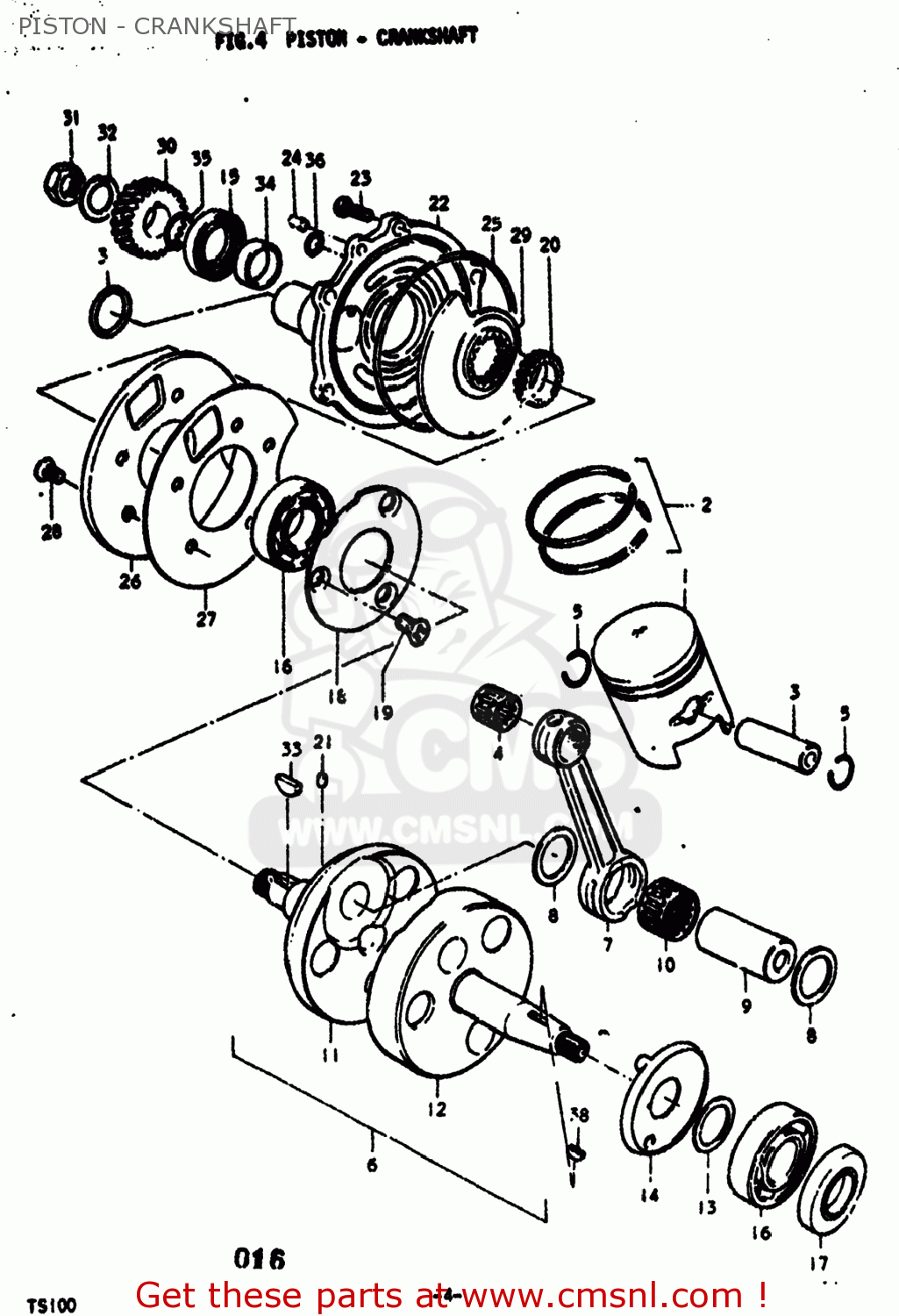

PISTON - CRANKSHAFT - TS100 1973 (K) USA (E03)

ref

part #

description

quantity

1-1

1211025601
ref: 1-1
12110-35623

PISTON STD - 49 MM

€ 44.00

1-2

1211025602
ref: 1-2
12110-35623

PISTON STD - 49 MM (12110-25602)

€ 44.00

1-3

1211025603
ref: 1-3
12110-35623

PISTON STD - 49 MM

€ 44.00

1-4

1211025761
ref: 1-4
12100-35620-050

PISTON SET (OS:0.50)

€ 74.50

1-5

1211025762
ref: 1-5
12100-35620-050

PISTON (OS:0.50)

€ 74.50

1-6

1211025763
ref: 1-6
12100-35620-050

PISTON (OS:0.50)

€ 74.50

1-7

1211025771
ref: 1-7
12110-35623-100

PISTON SET(OS:1.0)

€ 77.50

1-8

1211025772
ref: 1-8
12110-35623-100

PISTON SET(OS:1.0)

€ 77.50

1-9

1211025773
ref: 1-9
12110-35623-100

PISTON SET(OS:1.0)

€ 77.50

2-1

1210025840
ref: 2-1
12140-25631

RING SET,PISTON

€ 33.50

2-2

1214036130
ref: 2-2
12140-25631

RING SET,PISTON

€ 33.50

2-3

1214036770
ref: 2-3
12140-46000-050

PISTON RING SET 0.50

€ 32.50

2-3

1214036770
ref: 2-3
12140-46000-050

PISTON RING SET 0.50

€ 32.50

2-4

1214028650
ref: 2-4
12140-28630

RING SET,PISTON

€ 52.00

2-5

1214028630
ref: 2-5

RING SET,PISTON

€ 52.00

3

1215125000
ref: 3
12151-35400

PIN,PISTON

€ 8.00

4

0926312003
ref: 4
09263-12023

BEARING

€ 9.00

5

0938112001
ref: 5

RING,SNAP

€ 1.50

6-1

1220025840
ref: 6-1

CRANKSHAFT ASSEMBLY

€ 185.00

6-2

1220025002
ref: 6-2

CRANKSHAFT ASSEMBLY

€ 185.00

6-3

1220025004
ref: 6-3

CRANKSHAFT ASSEMBLY

€ 185.00

6-4

1220025005
ref: 6-4

CRANKSHAFT ASSEMBLY

€ 185.00

7

1216125001
ref: 7

ROD,CONNECTING

€ 73.00

8-1

0916019001
ref: 8-1

WASHER(19X32X1)

€ 3.50

8-2

0916019002
ref: 8-2
09160-19001

WASHER

€ 3.50

9

1221125001
ref: 9

PIN,CRANK

€ 33.50

10-1

0926319003
ref: 10-1
09263-19009

BEARING

€ 15.00

10-2

0926319007
ref: 10-2
09263-19009

BEARING

€ 15.00

11-1

1222025001
ref: 11-1
12221-25002

CRANKSHAFT

€ 59.00

11-2

1222125002
ref: 11-2

CRANKSHAFT

€ 59.00

12-1

1226025002
ref: 12-1

CRANKSHAFT,LEFT

€ 65.00

12-2

1226125003
ref: 12-2

CRANKSHAFT,LEFT

€ 65.00

12-3

1226125004
ref: 12-3

CRANKSHAFT,LEFT

€ 65.00

13

0822120285
ref: 13
09181-20158

THRUST WASHER

€ 2.50

14

1251125001
ref: 14

PLATE,CRANKSHAFT OIL GUIDE

€ 10.50

15

0928325035
ref: 15

SEAL,OIL(25X40X7)

€ 6.50

16

0926220019
ref: 16
09262-20069

BEARING

€ 28.00

17

0928320004
ref: 17

SEAL,OIL(20X40X7)

€ 5.50

18

1254125000
ref: 18

PLATE

€ 7.50

19

0212206128
ref: 19
02122-06127

SCREW

€ 3.00

20

1242105210
ref: 20

GUIDE,ROTERY VALVE

€ 17.50

21

0621103052
ref: 21
04221-03059

PIN 3X5

€ 1.50

22-1

1245025000
ref: 22-1
12450-25002

SEAT,CRANKCASE OUTER VALVE

€ 47.50

22-2

1245025001
ref: 22-2
12450-25002

SEAT,CRANKCASE OUTER VALVE

€ 47.50

23

0211206208
ref: 23
02112-06207

SCREW

€ 2.00

24

0621105103
ref: 24
04221-05109

PIN

€ 1.50

25

0928099001
ref: 25

O RING(D:2,ID:99)

€ 21.00

26

1246125001
ref: 26
12461-25002

SEAT,INNER DISC VALVE

€ 45.50

27

1247125001
ref: 27

GASKET,INNER DISC VALVE (NAS)

€ 2.50

28

0212206168
ref: 28
02122-06167

SCREW

€ 2.00

29

1241025011
ref: 29

VALVE,CRANKSHAFT

€ 28.00

30

2111125000
ref: 30

GEAR,PRIMARY DRIVE

€ 25.50

31

0914014002
ref: 31

NUT

€ 4.00

32

0916614009
ref: 32

WASHER

€ 5.50

33

0834131049
ref: 33
09420-04008

KEY 4MM

€ 3.50

34

0918020036
ref: 34

SPACER

€ 4.00

35

0928016004
ref: 35
09280-16005

O-RING

€ 1.50

36

0928008006
ref: 36

O RING(D:2.5,ID:7.5)

€ 4.00

37

0928026002
ref: 37

O RING(D:3.5,ID:25.7)

€ 3.00

38

0834131039
ref: 38

KEY

€ 2.00
