TS100 1973 (K) USA (E03)

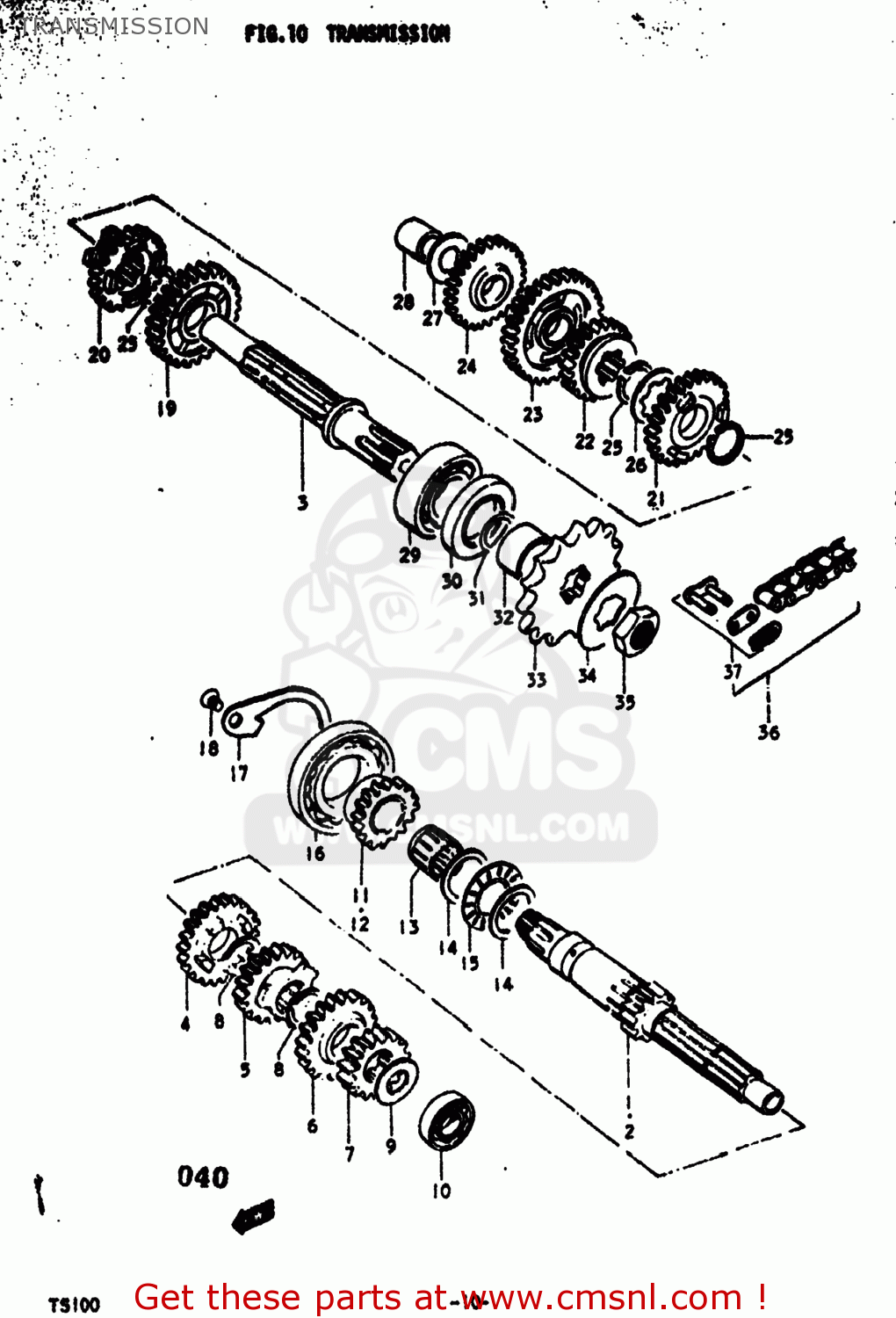

Transmission diagram TS100 1973 (K) USA (E03)
TRANSMISSION TS100 1973 (K) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
2412125001
ref: 1
24121-25002
SHAFT,COUNTER
€ 30.50
2
2412125002
ref: 2
SHAFT,COUNTER
€ 30.50
3
2413125000
ref: 3
SHAFT,DRIVE
€ 60.00
4
2425125001
ref: 4
GEAR,FIFTH DRIVE
€ 31.00
5
2423125000
ref: 5
GEAR,THIRD DRIVE
€ 23.00
6
2424125000
ref: 6
GEAR,FOURTH DRIVE
€ 16.50
7
2422125000
ref: 7
GEAR,SECOND DRIVE
€ 20.00
8
0938017001
ref: 8
CIRCLIP
€ 2.00
9
0821112203
ref: 9
WASHER
€ 1.50
10
0926212001
ref: 10
BEARING(12X28X8)
€ 15.00
11
2628019000
ref: 11
GEAR,KICK STARTER DRIVEN(NT:16
€ 52.00
12
2628125001
ref: 12
GEAR,KICK STARTER DRIVE
€ 31.00
13
0926319006
ref: 13
BEARING(19.2X23.2X19)
€ 29.50
14
0916021007
ref: 14
WASHER(21X30X0.8)
€ 3.50
15-1
0926321004
ref: 15-1
09263-21006
BEARING 21X35X2.8
€ 11.50
15-2
0926321006
ref: 15-2
BEARING(21X32X2.85)
€ 11.50
16
0926230002
ref: 16
09262-30003
BEARING
€ 30.00
17
2474125000
ref: 17
PLATE,COUNTERSHAFT BEARING
€ 6.50
18
0212206108
ref: 18
02122-0610A
SCREW
€ 1.50
19
2432125001
ref: 19
GEAR,SECOND DRIVEN
€ 19.00
20
2434125001
ref: 20
GEAR,FOURTH DRIVEN
€ 18.00
21
2433125000
ref: 21
GEAR,THIRD DRIVEN
€ 43.50
22
2435125001
ref: 22
GEAR,FIFTH DRIVEN
€ 36.00
23
2431025001
ref: 23
GEAR,FIRST DRIVEN
€ 16.50
24
2626023001
ref: 24
26260-23010
GEAR,KICK STARTER IDLE
€ 48.50
25
0938020003
ref: 25
09380-20007
CIRCLIP
€ 3.00
26
0916720007
ref: 26
09167-20022
WASHER
€ 3.00
27
0916015016
ref: 27
08211-15301
WASHER
€ 2.00
28
0930315003
ref: 28
09303-15004
BUSHING
€ 5.50
29
0811362040
ref: 29
09262-20069
Bearing
€ 28.00
30
0928325035
ref: 30
SEAL,OIL(25X40X7)
€ 6.50
31
0928020001
ref: 31
O RING(D:1,ID:19.5)
€ 2.00
32
0918020035
ref: 32
SPACER (20X25X13.5)
€ 4.50
33-1
2751124900
ref: 33-1
27511-24901
SPROCKET,ENGINE
€ 18.00
33-2
2751124901
ref: 33-2
SPROCKET,ENGINE(NT:13)
€ 18.00
33-3
2751120700
ref: 33-3
27511-13700
SPROCKET,ENGINE
€ 33.00
33-4
2751136200
ref: 33-4
27511-13700
SPROCKET,ENGINE
€ 33.00
33-5
2751120000
ref: 33-5
27511-27100
SPROCKET,ENGINE
€ 24.50
33-6
2751127100
ref: 33-6
SPROCKET,ENGINE(NT:15)
€ 24.50
34
0916720006
ref: 34
09167-20009
WASHER,LOCK
€ 3.00
35
0914020001
ref: 35
NUT
€ 3.50
36-1
2760036010
ref: 36-1
27600-29B20-124
CHAIN ASSEMBLY,DRIVE
€ 128.00
36-2
2760036011
ref: 36-2
27600-29B20-124
CHAIN ASSEMBLY,DRIVE
€ 128.00
37-1
2762020210
ref: 37-1
27620-40220
JOINT ASSEMBLY,CHAIN
€ 7.00
37-2
2762036011
ref: 37-2
27620-36012
JOINT ASSEMBLY,CHAIN
€ 4.50
