STAND - BRAKE PEDAL
TS100 1973 (K) USA (E03)

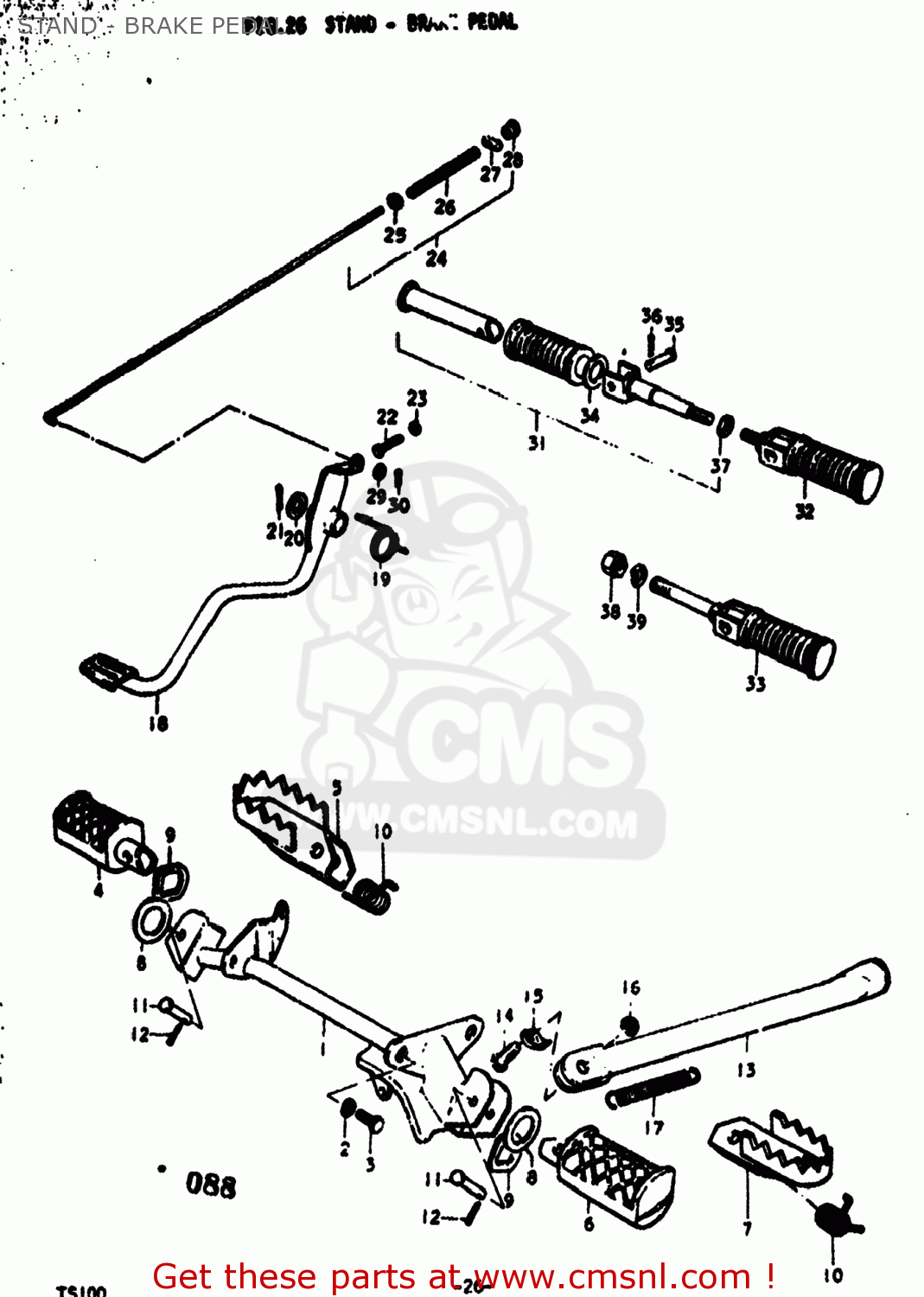

Stand - brake pedal diagram TS100 1973 (K) USA (E03)
STAND - BRAKE PEDAL TS100 1973 (K) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
4351025300
ref: 1-1
BAR,FRONT FOOTREST
€ 18.50
1-2
4351025301
ref: 1-2
BAR,FRONT FOOTREST
€ 16.50
2
0832121088
ref: 2
08321-01087
LOCK WASHER
€ 2.00
3
0112208168
ref: 3
01500-0816B
BOLT
€ 2.00
4-1
4355025000
ref: 4-1
43550-25301
RUBBER,FOOTREST,RIGHT
€ 34.50
4-2
4355025300
ref: 4-2
RUBBER,FOOTREST,RIGHT
€ 34.50
4-3
4355025301
ref: 4-3
RUBBER,FOOTREST,RIGHT
€ 34.50
5
4355025302
ref: 5
RUBBER,FOOTREST,RIGHT
€ 13.00
6-1
4356025000
ref: 6-1
43560-25301
RUBBER,FOOTREST,LEFT
€ 34.50
6-2
4356025300
ref: 6-2
RUBBER,FOOTREST,LEFT
€ 34.50
6-3
4356025301
ref: 6-3
RUBBER,FOOTREST,LEFT
€ 34.50
7
4356025302
ref: 7
RUBBER,FOOTREST,LEFT
€ 17.50
8
0916022002
ref: 8
09160-22033
WASHER
€ 3.50
9
4358125300
ref: 9
WASHER
€ 5.00
10
0944814012
ref: 10
SPRING
€ 3.00
11
0920008002
ref: 11
PIN
€ 2.00
12
0411120208
ref: 12
04111-2020A
PIN 20X20
€ 1.50
13
4231025000
ref: 13
STAND,SIDE
€ 17.00
14-1
0910010067
ref: 14-1
BOLT(10X30)
€ 3.50
14-2
0910010007
ref: 14-2
09100-10287
BOLT
€ 4.50
14-2
0910010007
ref: 14-2
09100-10287
BOLT
€ 4.50
15
0916910008
ref: 15
WASHER
€ 0.00
16
0831231108
ref: 16
08310-00107
NUT
€ 2.50
17
0944314005
ref: 17
09443-14017
SPRING
€ 6.50
18
4311025300
ref: 18
PEDAL,BRAKE
€ 12.00
19
0944832004
ref: 19
09448-32004-XC0
SPRING
€ 4.50
20
0916015002
ref: 20
WASHER(15.5X26X2.3)
€ 2.00
21
0411130308
ref: 21
04111-3030A
COTTER PIN
€ 1.50
22
0910006050
ref: 22
09100-06150
BOLT
€ 1.50
23
0831131068
ref: 23
08310-00067
NUT
€ 2.50
24
4330025300
ref: 24
43300-26400
ROD ASSEMBLY,REAR BRAKE
€ 15.50
25
0832221068
ref: 25
08322-01067
WASHER
€ 2.00
26
0944009004
ref: 26
SPRING
€ 2.00
27
0920911002
ref: 27
PIN(11X18)
€ 2.00
28
0915006001
ref: 28
09150-06010
NUT
€ 3.50
29
0832221058
ref: 29
08322-01057
WASHER
€ 2.50
30
0411120208
ref: 30
04111-2020A
PIN 20X20
€ 1.50
31
4360028000
ref: 31
FOOTREST ASSEMBLY,REAR
€ 21.00
32
4360003001
ref: 32
43600-09D00
FOOTREST ASSEMBLY,REAR
€ 21.00
33
4360036200
ref: 33
FOOTREST ASSY,PILLION
€ 31.00
34
0916019006
ref: 34
09160-19024
WASHER (19.5X32X2)
€ 2.00
35
0920006010
ref: 35
PIN
€ 2.50
36
0411120208
ref: 36
04111-2020A
PIN 20X20
€ 1.50
37
0831232108
ref: 37
08310-00107
NUT
€ 2.50
37
0831232108
ref: 37
08310-00107
NUT
€ 2.50
38
0831231128
ref: 38
09140-12039
NUT
€ 3.00
39
0832121128
ref: 39
08321-01127
WASHER,LOCK 12
€ 2.50
