WIRING HARNESS
TS100 1973 (K) USA (E03)

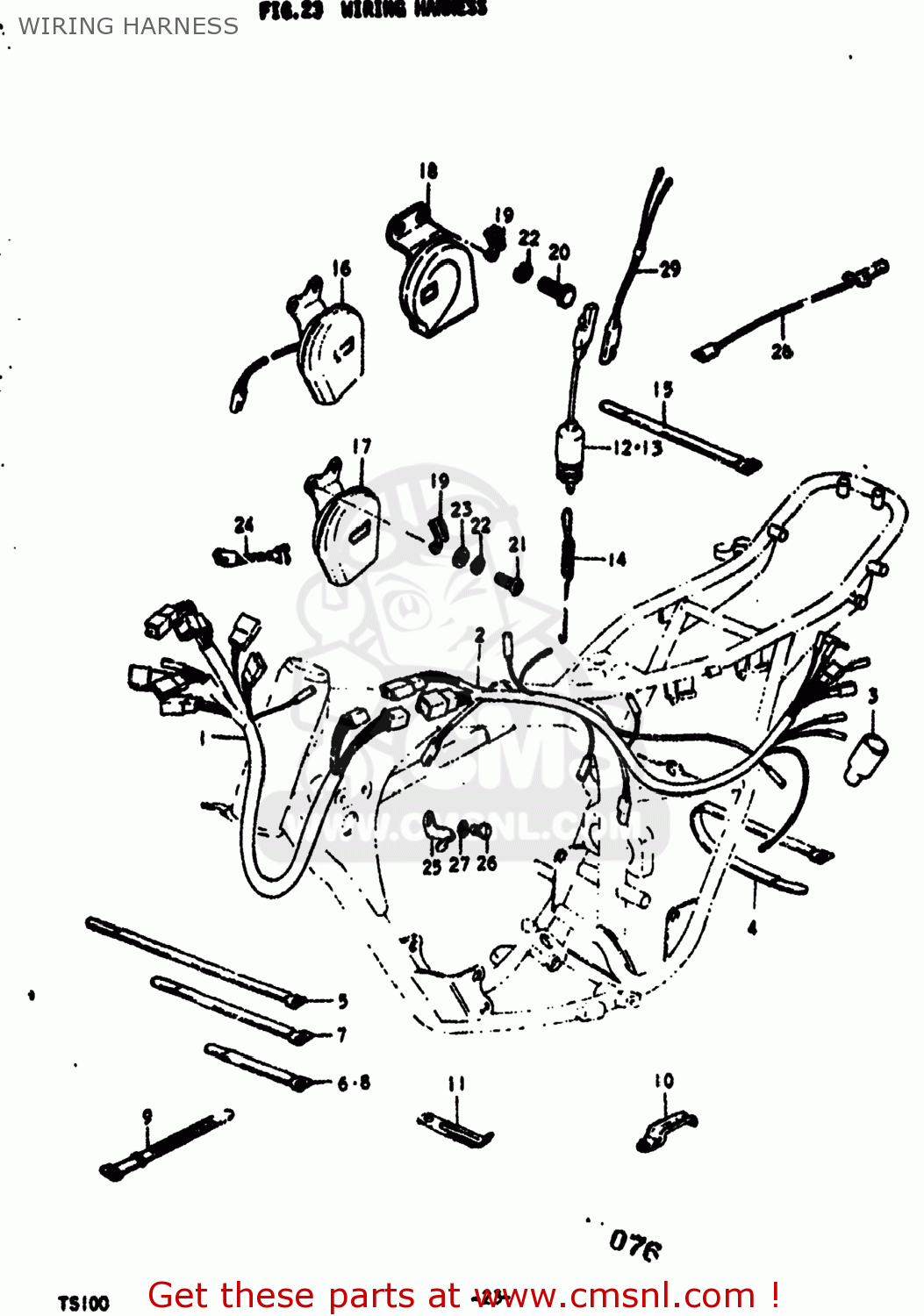

Wiring harness diagram TS100 1973 (K) USA (E03)
WIRING HARNESS TS100 1973 (K) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
3661025620
ref: 1-1
HARNESS,WIRING
€ 87.00
1-2
3661025621
ref: 1-2
36610-25626
HARNESS,WIRING
€ 87.00
1-3
3661025622
ref: 1-3
HARNESS,WIRING
€ 87.00
1-4
3661025625
ref: 1-4
36610-25626
HARNESS,WIRING
€ 87.00
1-5
3661025626
ref: 1-5
HARNESS,WIRING
€ 87.00
2-1
3662025620
ref: 2-1
HARNESS,WIRING NO.2
€ 39.00
2-2
3662025622
ref: 2-2
36620-25624
HARNESS,WIRING NO.2
€ 39.00
2-3
3662025624
ref: 2-3
HARNESS,WIRING NO.2
€ 39.00
3
3661828000
ref: 3
36618-30000
COVER,WIRING HARNESS
€ 8.50
4
0940725301
ref: 4
CLAMP(L:250)
€ 4.50
5-1
0940718301
ref: 5-1
CLAMP
€ 6.00
5-1
0940718301
ref: 5-1
CLAMP
€ 6.00
5-2
0940721301
ref: 5-2
CLAMP
€ 4.50
6
0940709301
ref: 6
CLAMP
€ 6.00
6
0940709301
ref: 6
CLAMP
€ 6.00
7
0940711302
ref: 7
09407-18301
CLAMP
€ 6.00
7
0940711302
ref: 7
09407-18301
CLAMP
€ 6.00
8
0940309307
ref: 8
CLAMP
€ 2.50
9
0940712402
ref: 9
CLAMP(L:120)
€ 3.00
9
0940712402
ref: 9
CLAMP(L:120)
€ 3.00
10
0940307301
ref: 10
09403-07309
CLAMP
€ 2.00
11
0940405402
ref: 11
09404-06432
CLAMP
€ 2.00
12
3774025310
ref: 12
37740-37051
SWITCH ASSEMBLY,STOP LAMP
€ 9.50
13
3761053011
ref: 13
SWITCH ASSY,BRAKE LAMP
€ 34.50
14
0944306019
ref: 14
SPRING
€ 3.50
15
0940711302
ref: 15
09407-18301
CLAMP
€ 6.00
16
3850025330
ref: 16
HORN ASSEMBLY
€ 45.50
17
3850025331
ref: 17
HORN ASSEMBLY
€ 45.50
18
3850025332
ref: 18
HORN ASSY
€ 45.50
19
0940307301
ref: 19
09403-07309
CLAMP
€ 2.00
20-1
0111206108
ref: 20-1
01500-06107
BOLT
€ 2.00
20-2
0113106128
ref: 20-2
01500-06127
BOLT
€ 2.00
21
0211206128
ref: 21
02112-06127
SCREW 6X12
€ 2.00
22
0832121068
ref: 22
08321-01067
LOCK WASHER
€ 2.50
23
0832221068
ref: 23
08322-01067
WASHER
€ 2.00
24
3687025030
ref: 24
WIRE
€ 10.50
25
5145305110
ref: 25
CLIP,BRAKE CABLE
€ 4.50
26
0111206108
ref: 26
01500-06107
BOLT
€ 2.00
27
0832121068
ref: 27
08321-01067
LOCK WASHER
€ 2.50
28
3681127610
ref: 28
WIRE,WIRING HARNESS LEAD
€ 4.50
29
3685225700
ref: 29
WIRE
€ 3.00
