ELECTRICAL

TS125 1971 1972 (R) (J) USA (E03)

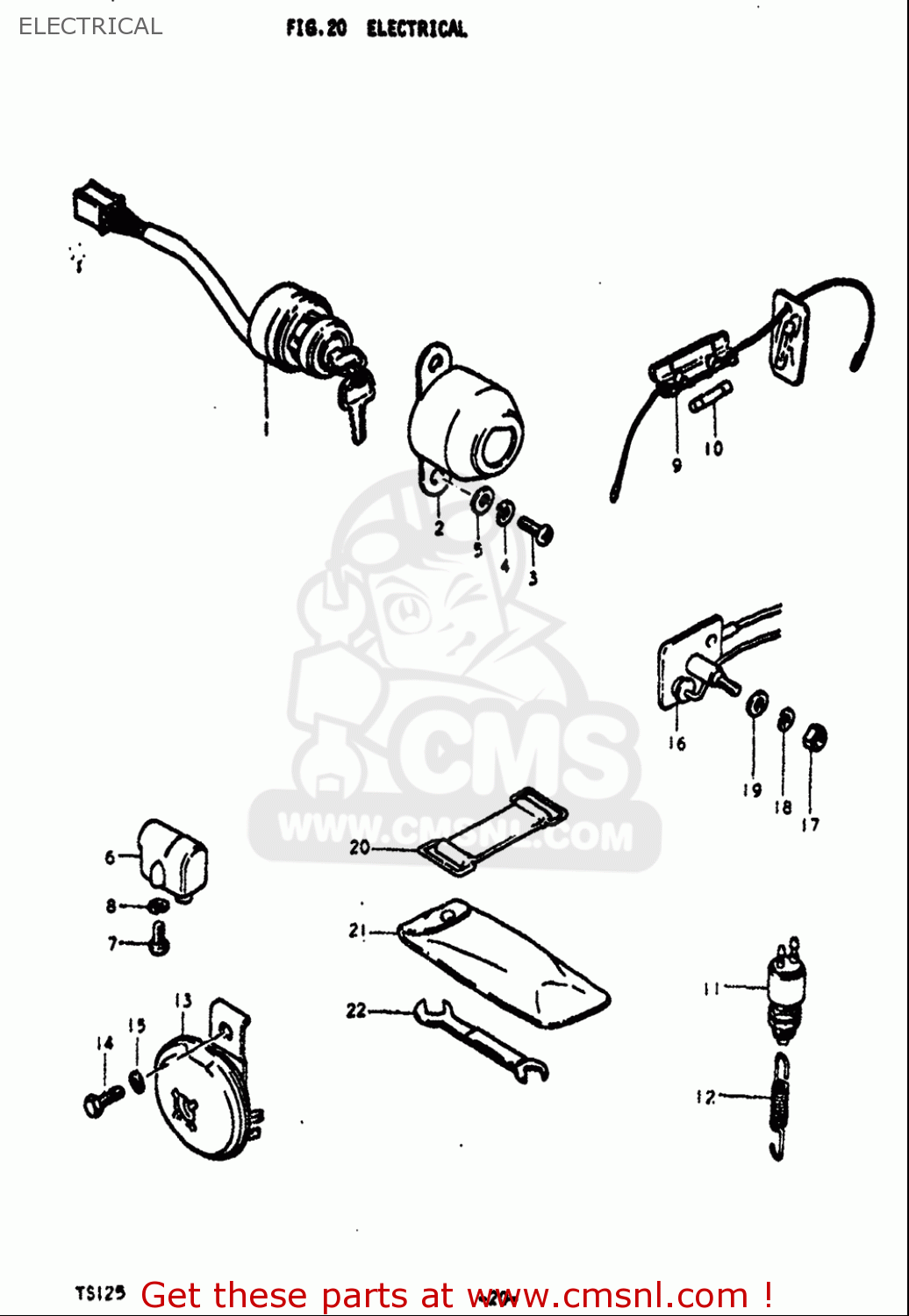

Electrical diagram TS125 1971 1972 (R) (J) USA (E03)

ELECTRICAL TS125 1971 1972 (R) (J) USA (E03)

ELECTRICAL TS125 1971 1972 (R) (J) USA (E03)

prices are in EUR

ref

part #

description

quantity

3

0211206127
ref: 3

SCREW

€ 2.00

4

0832101067
ref: 4

WASHER,LOCK

€ 2.50

5

0832201067
ref: 5

WASHER

€ 2.00

6

5191025311
ref: 6

LOCK ASSY,STEERING

€ 22.50

7

0211205127
ref: 7

SCREW

€ 2.50

8

0832101057
ref: 8

WASHER,LOCK

€ 2.00

9

3674015011
ref: 9

CASE ASSY,FUSE

€ 11.00

10

0948115001
ref: 10

FUSE(15A)

€ 3.00

11

3761053011
ref: 11

SWITCH ASSY,BRAKE LAMP

€ 34.50

12

0944306012
ref: 12

SPRING

€ 3.00

14

0150008127
ref: 14

BOLT

€ 2.50

15

0832101087
ref: 15

WASHER,LOCK

€ 2.00

17

0831000057
ref: 17

NUT

€ 2.50

18

0832101057
ref: 18

WASHER,LOCK

€ 2.00

19

0832201057
ref: 19

WASHER

€ 2.50

20

0946200017
ref: 20

BAND

€ 13.50

21

0980021028
ref: 21

TOOL ASSY

€ 43.50
