MAGNETO

TS125 1971 1972 (R) (J) USA (E03)

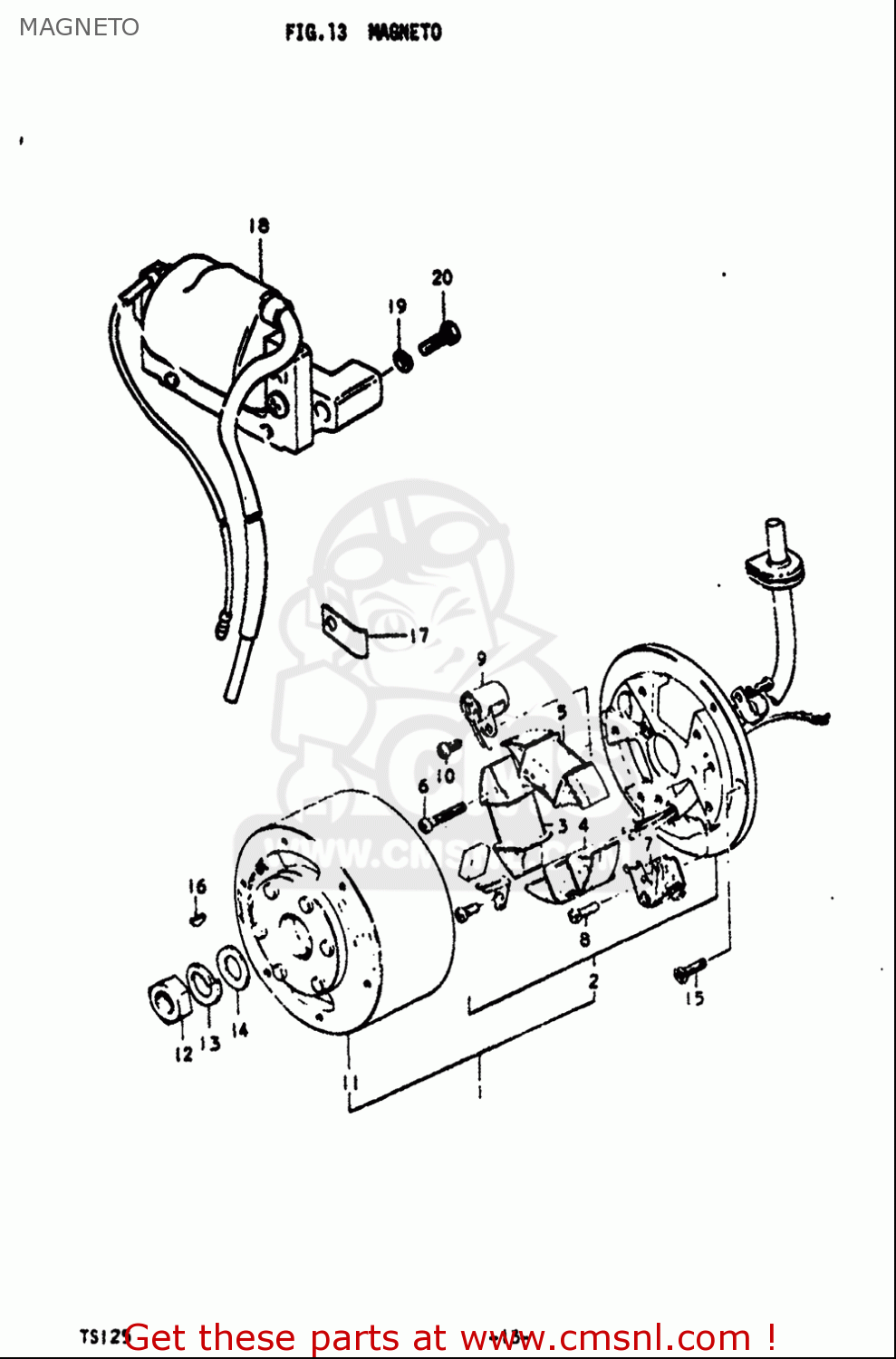

Magneto diagram TS125 1971 1972 (R) (J) USA (E03)

prices are in EUR

ref

part #

description

quantity

3214028010
ref: 5

COIL,PRIMARY

€ 51.00

0912504023
ref: 6

SCREW(4X30)

€ 1.50

3224043012
ref: 7

POINT ASSY,CONTACT

€ 18.50

0231104108
ref: 8

.SCREW

€ 1.00

3234112011
ref: 9

CONDENSER

€ 18.00

0211204107
ref: 10

SCREW

€ 2.00

0914010041
ref: 12

NUT

€ 3.50

0832101107
ref: 13

WASHER,LOCK

€ 2.00

14-1

0832201107
ref: 14-1

WASHER

€ 2.50

14-2

0832201107
ref: 14-2

WASHER

€ 2.50

0212206167
ref: 15

SCREW

€ 2.00

0834131039
ref: 16

KEY

€ 2.00

0940406432
ref: 17

CLAMP(L:65)

€ 2.50

3341022221
ref: 18

COIL ASSY,IGNITION

€ 184.50

0832101057
ref: 19

WASHER,LOCK

€ 2.00

0150005127
ref: 20

BOLT

€ 2.00
